11-21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

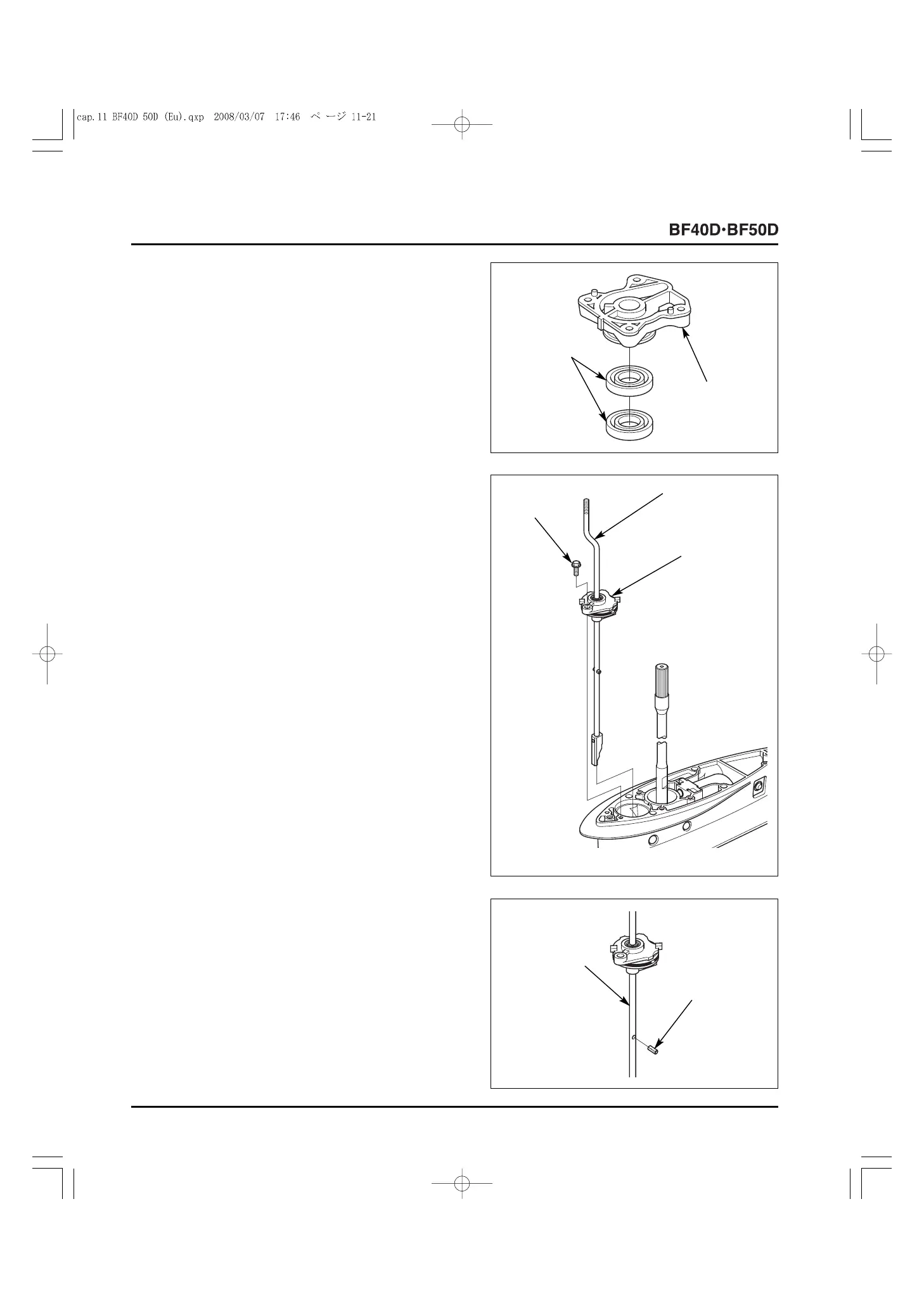

9) Before removing the 17 x 30 x 7 mm water seals, check the
lips for cuts. Replace the water seals with new ones if
necessary.
10) Remove the two 17 x 30 x 7 mm water seals from the water
pump housing.
Replace the water seals with new ones on reassembly.
[2]
WATER PUMP
HOUSING
6 x 20
[2]
SEAL HOLDER
[1]
SHIFT ROD B
ASSEMBLY
[1]
17 x 30 x 7 mm
WATER SEALS
12) Remove the 3 x 12 mm spring pin from the shift rod B using
a commercially available pin driver.
[2]
3 x 12 mm
SPRING PIN
[1]
SHIFT ROD B
11) Remove the 6 x 20 mm flange bolt, and remove the seal
holder and shift rod B assembly from the gear case
assembly.
262
