11-28
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

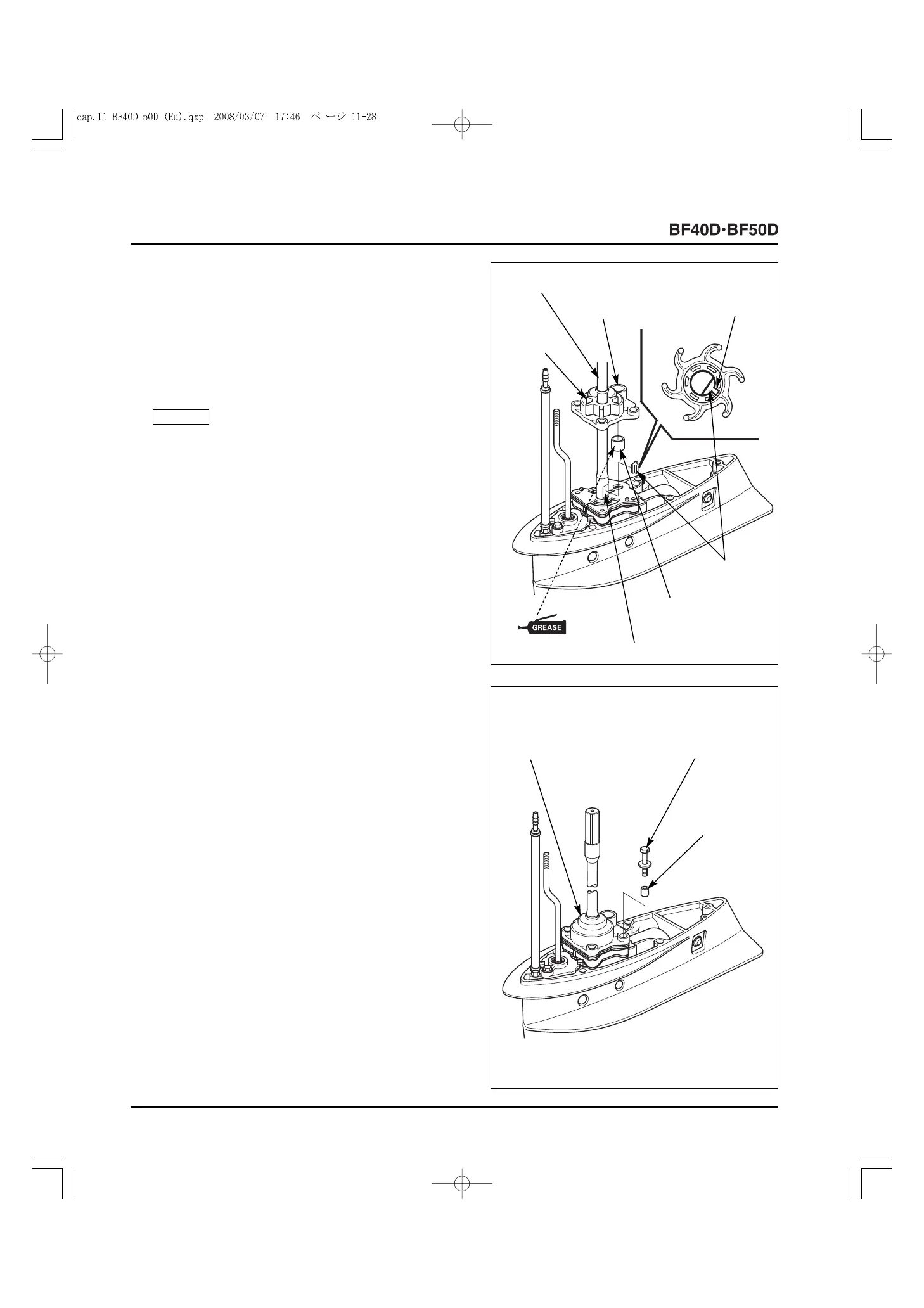

18) Install the water tube seal ring in the impeller housing and
apply marine grease to the inner wall of the water tube seal
ring.
19) Install the woodruff key in the groove in the vertical shaft.
Turning the impeller housing assembly clockwise, align the
woodruff key with the groove in the pump impeller and
install the impeller housing assembly.
After installation, check that the impeller cover and the
impeller gasket are set in the proper position securely.
Turn the impeller housing assembly clockwise when it is
turned with the pump impeller mounted.
NOTICE
[5] WOODRUFF
KEY
[4]
GROOVE IN
PUMP IMPELLER
[2]
VERTICAL
SHAFT
[7]
GROOVE
[3]
IMPELLER
HOUSING
ASSEMBLY
[1]
PUMP
IMPELLER
20) Install the four impeller housing collars in the impeller
housing assembly, and tighten the four 6 mm washers and
four 6 x 40 mm hex bolts to the specified toque.
TORQUE: 11 N
.
m (1.1 kgf
.
m, 8 lbf
.
ft)
21) Perform gear case pressure check after assembly (P. 12-45).
22) Install the following parts.
- Propeller shaft holder assembly (P. 11-7)
- Gear case assembly (P. 11-5)
- Propeller (P. 11-2)
[6] WATER TUBE
SEAL RING
[1]
IMPELLER HOUSING
ASSEMBLY
[3]
IMPELLER
HOUSING
COLLAR (4)
[2]
6 x 40 mm BOLT
WASHER (4)
[8]
(MARINE GREASE)
