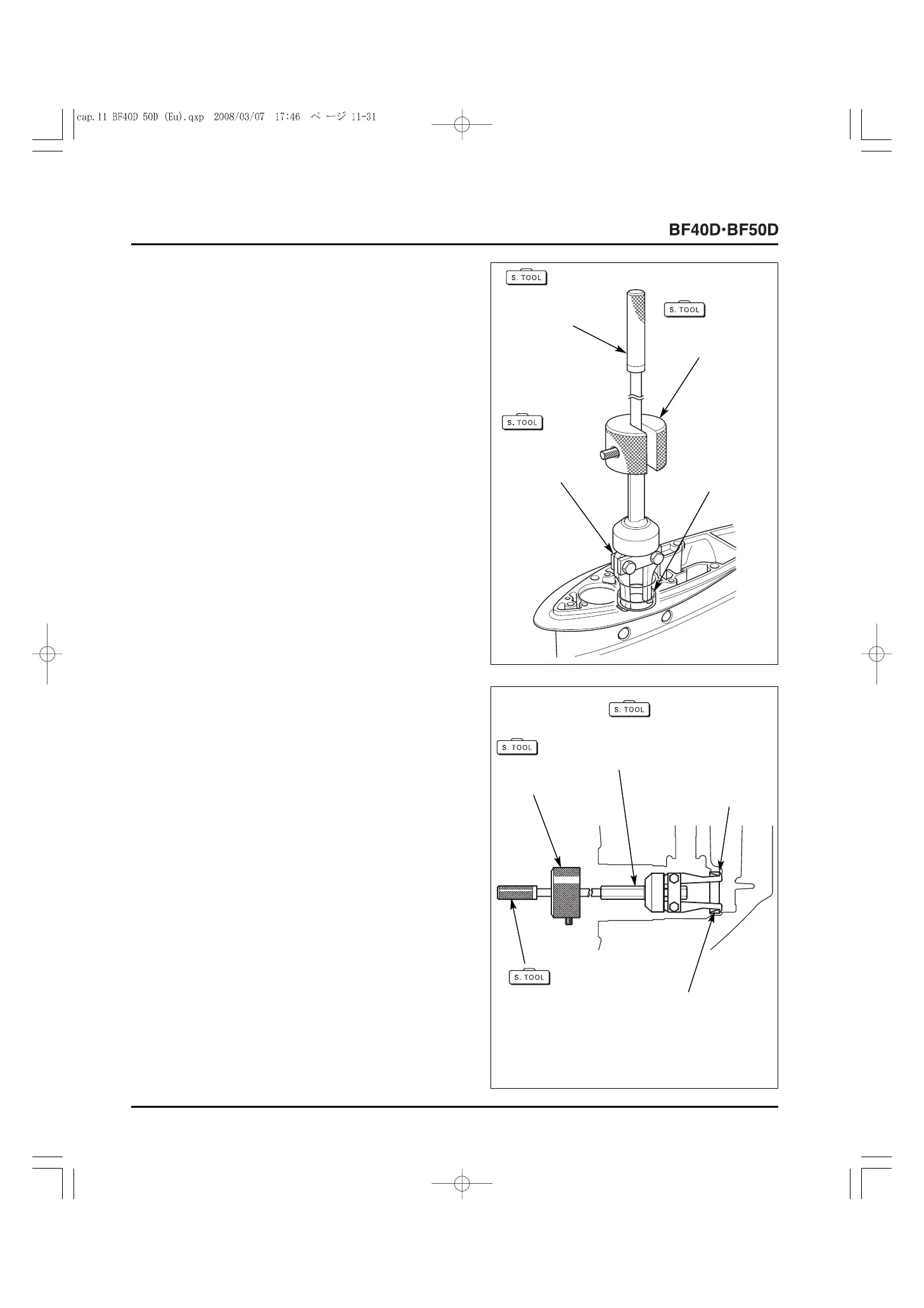

13) Check the bearing [outer race] for damage before removing
it.
Replace the bearing [outer race] and the bearing inner race
as a set if necessary.
14) Remove the 32 x 58 x 17 mm bearing [outer race] using the
special tools as shown.
Replace the bearing [outer race] and the bearing inner race
as a set on reassembly.
TOOLS:
Remover handle 07936-3710100
Remover weight 07741-0010201
Bearing race puller 07LPC-ZV30101
15) Remove the forward bevel gear shim from the gear case
assembly.
Replace the shim with a new one on reassembly.
[1]
REMOVER WEIGHT
07741-0010201
[2]
BEARING RACE
PULLER
07LPC-ZV30101
[5]
REMOVER HANDLE
07936-3710100
[4]
32 x 58 x 17 mm
BEARING
[OUTER RACE]
[3]
FORWARD
BEVEL GEAR
SHIM
10) Check bearing [outer race] for damage before removing it.
Replace the bearing [outer race] and the bearing inner race
as a set if necessary.
11) Remove the 25 x 47 x 15 mm bearing [outer race] using the
special tools as shown.
Replace the bearing [outer race] and the bearing inner race
as a set on reassembly.
TOOLS:
Remover handle 07936-3710100
Remover weight 07741-0010201
Bearing race puller 07LPC-ZV30101
12) Remove the pinion gear shim from the gear case assembly.
Replace the shim with a new one on reassembly.
[1]
REMOVER HANDLE
07936-3710100
[2]
REMOVER WEIGHT
07741-0010201
[4]
BEARING RACE
PULLER
07LPC-ZV30101
[3]
25 x 47 x 15 mm
BEARING
[OUTER RACE]
