7-7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

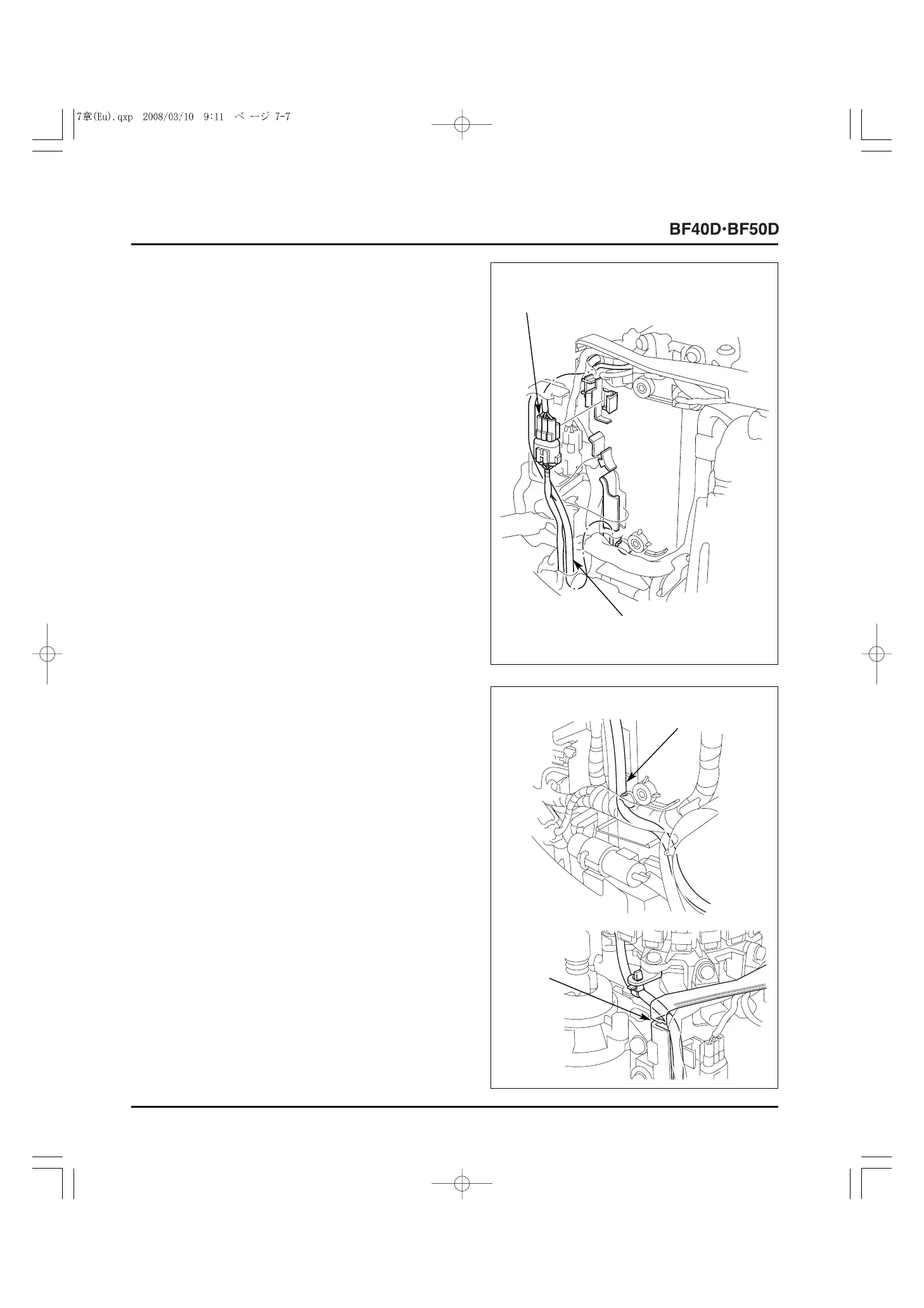

16) Remove the trim angle sensor 3P connector from the
electric part case [Power trim/tilt type only].
17) Release the alternator stator wire from each clamp of the
electric part case.
18) Pull out the alternator stator wire from the gap between the
electric part case and the main wire harness as shown.
19) Remove the alternator stator wire through the cutout in the
electric part case.
[1]
TRIM ANGLE SENSOR
3P CONNECTOR
[2]
ALTERNATOR
STATOR WIRE
[2]
CUTOUT
[1]
ALTERNATOR
STATOR WIRE
30
