Honda BF40D - Page 32

7-8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

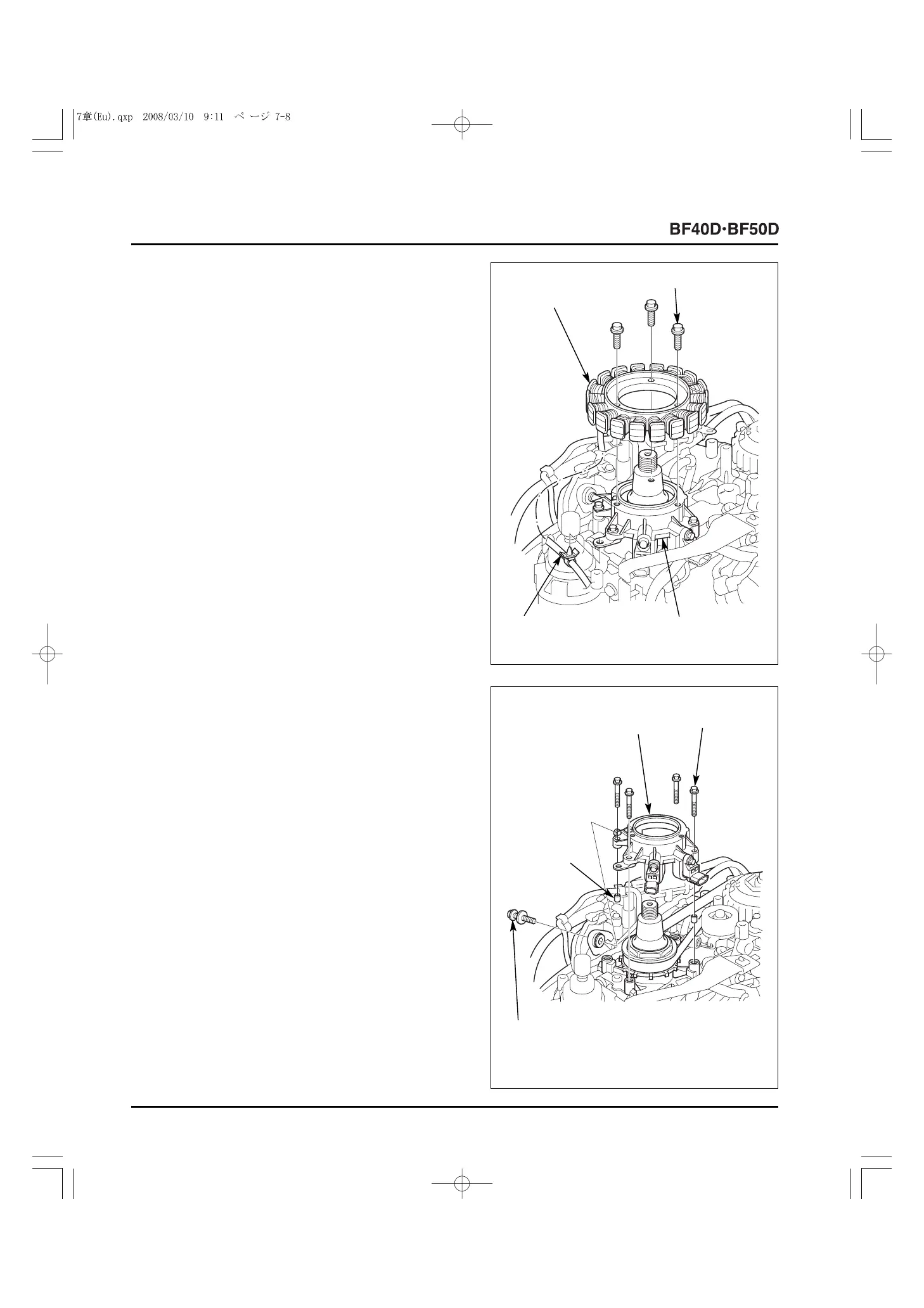

20) Remove the harness band clip from the alternator bracket.
21) Remove the three 6 x 25 mm flange bolts, and remove the
alternator stator from the alternator bracket.
22) Remove the four 6 x 30 mm flange bolts and the 6 x 25 mm
bolt-washer, and remove the alternator bracket and the two
8 x 10 mm dowel pins.
[2]
ALTERNATOR
BRACKET
[1]
ALTERNATOR
STATOR
[3]
HARNESS
BAND CLIP
6 x 25 (3)
[1]
ALTERNATOR BRACKET
[2]
8 x 10 mm
DOWEL PIN (2)
6 x 30 (4)
[3]
6 x 25 mm BOLT-
WASHER
32
