11-50
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

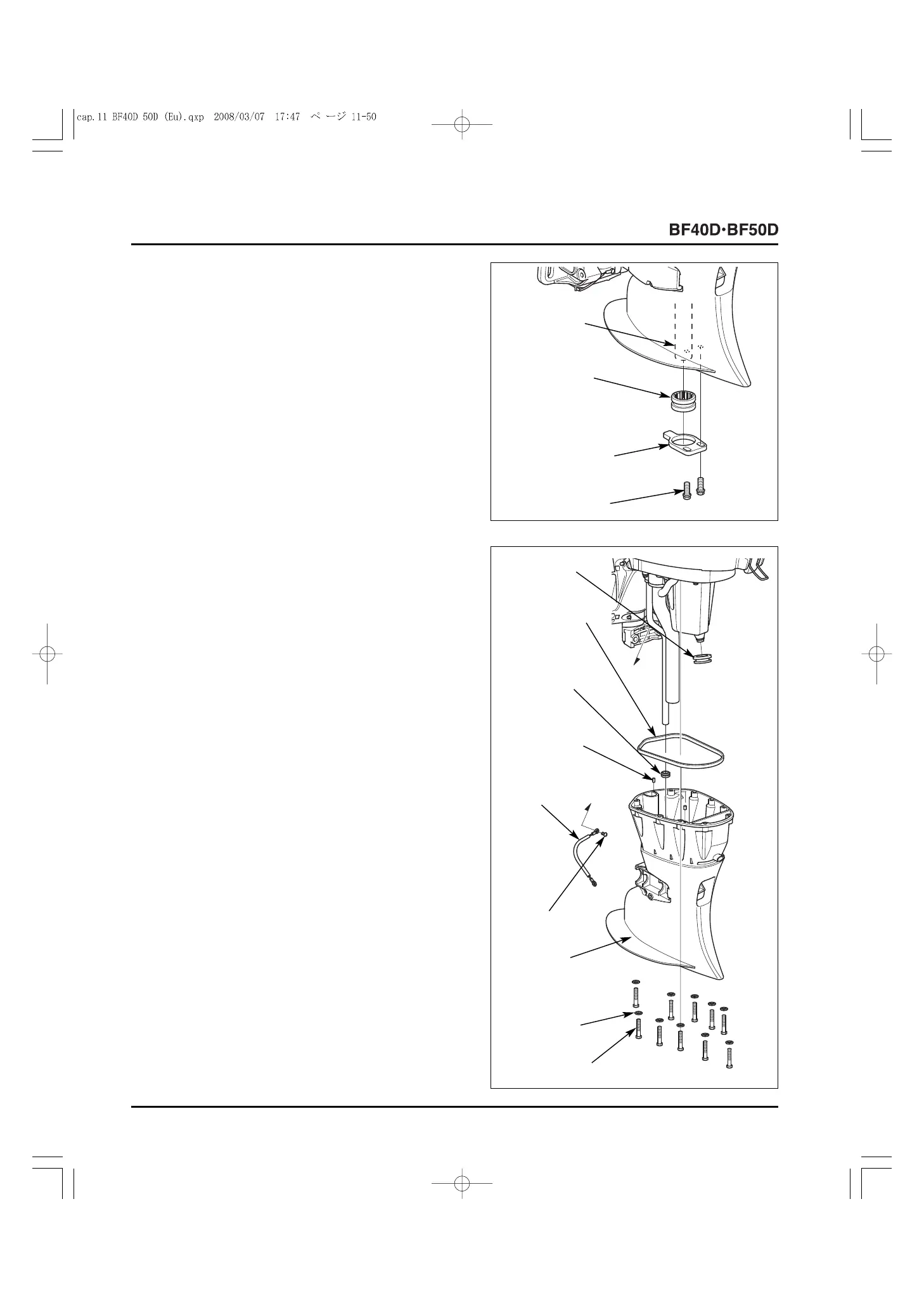

10) Remove the ten 8 x 35 mm hex bolt and remove the
extension case from the outboard motor.
Remove the two 6 x 10 mm dowel pins.
• Take care not to drop the extension case.
11) Remove the under cover rubber, extension case grommet
and the drain plug rubber from the extension case.
12) Remove the 6 x 8 mm screw and remove the 116 mm lead
wire.
8) Remove the two 6 x 20 mm flange bolts, and remove the
exhaust pipe grommet holder assembly from the exhaust
pipe [Long/semi-long/extra-long shaft types only].
9) Remove the exhaust pipe grommet from the exhaust pipe
grommet holder [Long/semi-long/extra-long shaft types
only].
[9]
8 x 35 mm HEX
BOLT (10)
[8]
8 mm
WASHER (10)
[7]
EXTENSION
CASE
[4]
6 x 10 mm
DOWEL PIN (2)
[1]
DRAIN PLUG
RUBBER
[2]
UNDER COVER
RUBBER
6 x 20 (2)
[1]
EXHAUST PIPE
[3]
EXHAUST PIPE
GROMMET HOLDER
[2]
EXHAUST PIPE
GROMMET
[3]
EXTENSION CASE
GROMMET
[6]
6 x 8 mm SCREW
[5]
116 mm
LEAD WIRE
320
