11-51
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

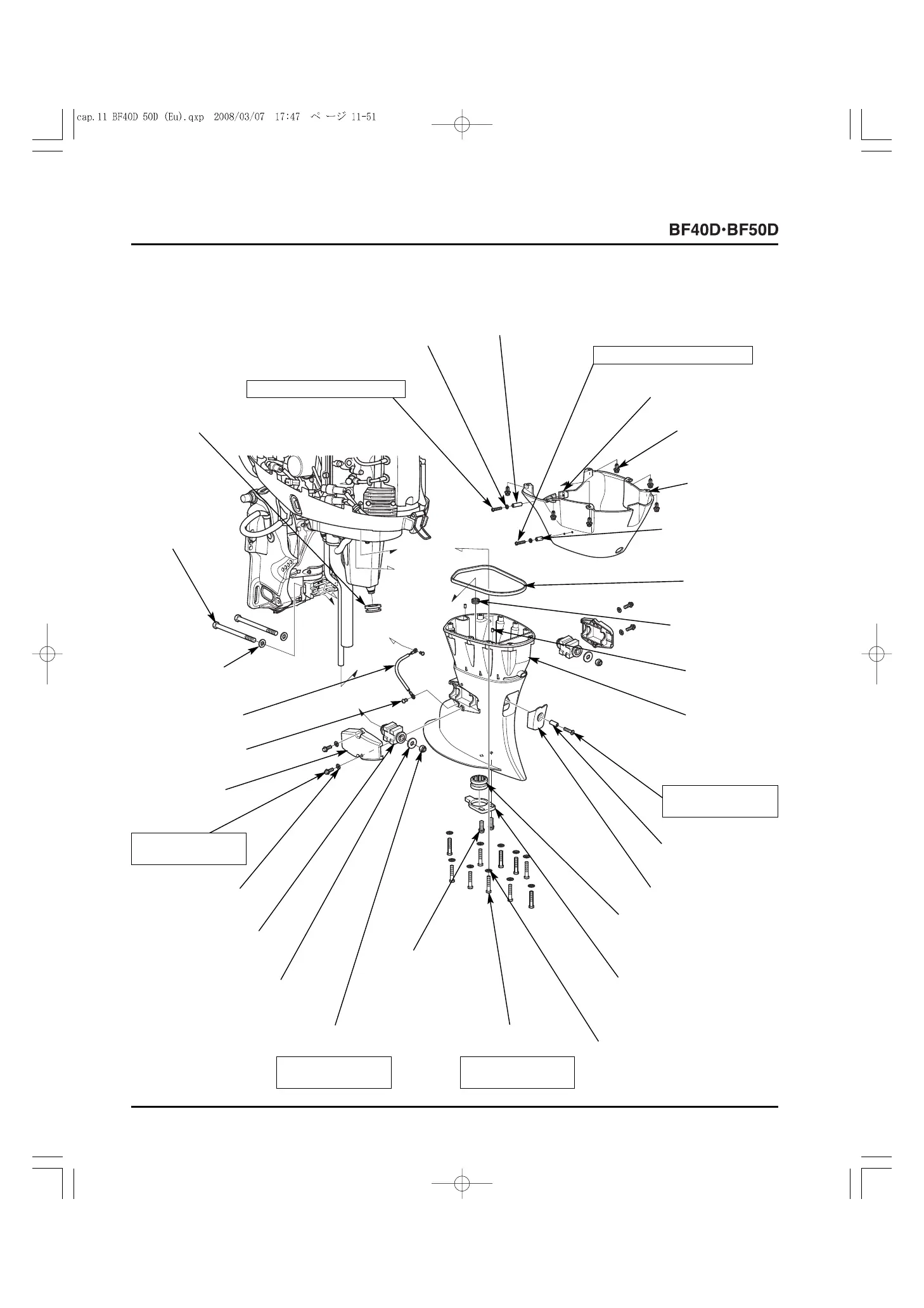

b. COMPONENT DRAWING
[1]
DRAIN PLUG
RUBBER
[13]
EXTENSION
CASE
[12]
6 x 10 mm
DOWEL PIN (2)
[19]
8 mm WASHER (10)
[10]
UNDER COVER
RUBBER
[11]
EXTENSION CASE
GROMMET
[27]
6 x 8 mm SCREW (2)
[25]
8 mm WASHER (4)
[28]
116 mm LEAD WIRE
[29]
12 mm WASHER
[SMALL] (2)
[23]
12 mm WASHER
[LARGE] (2)
[24]
LOWER RUBBER
MOUNT (2)
[26]
LOWER MOUNT
HOUSING (2)
[7]
8 x 15 mm RIVET
SCREW (6)
[4]
5 x 7 x 38 mm
DISTANCE COLLAR
[9]
5 x 7 x 23 mm
DISTANCE COLLAR
[3]
5 mm WASHER (2)
[6]
5 mm PLATE NUT (2)
[30]
12 x 162 mm
HEX BOLT (2)
[16]
DRAIN PLUG COVER
[15]
6 x 10.5 x 25 mm
DISTANCE COLLAR
[22]
12 mm SELF-
LOCKING NUT (2)
55 N
.
m (5.6 kgf
.
m,
41 lbf
.
ft)
[20]
8 x 35 mm HEX
BOLT (10)
22 N
.
m (2.2 kgf
.
m,
16 lbf
.
ft)
[21]
6 x 20 (2)
[LONG/SEMI-LONG/
EXTRA-LONG SHAFT
TYPES ONLY]
[18]
EXHAUST PIPE GROMMET
HOLDER
[LONG/SEMI-LONG/EXTRA-
LONG SHAFT TYPES ONLY]
[17]
EXHAUST PIPE GROMMET
[LONG/SEMI-LONG/EXTRA-
LONG SHAFT TYPES ONLY]
[8]
UNDER COVER
8 x 25 (4)
22 N
.
m (2.2 kgf
.
m,
16 lbf
.
ft)
[14]
6 x 35 mm
SPECIAL SCREW
6.5 N
.
m (0.7 kgf
.
m,
4.8 lbf
.
ft)
[2]
5 x 45 mm SCREW
3 N
.
m (0.3 kgf
.
m, 2.2 lbf
.
ft)
[5]
5 x 30 mm SCREW
3 N
.
m (0.3 kgf
.
m, 2.2 lbf
.
ft)
