11-53
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

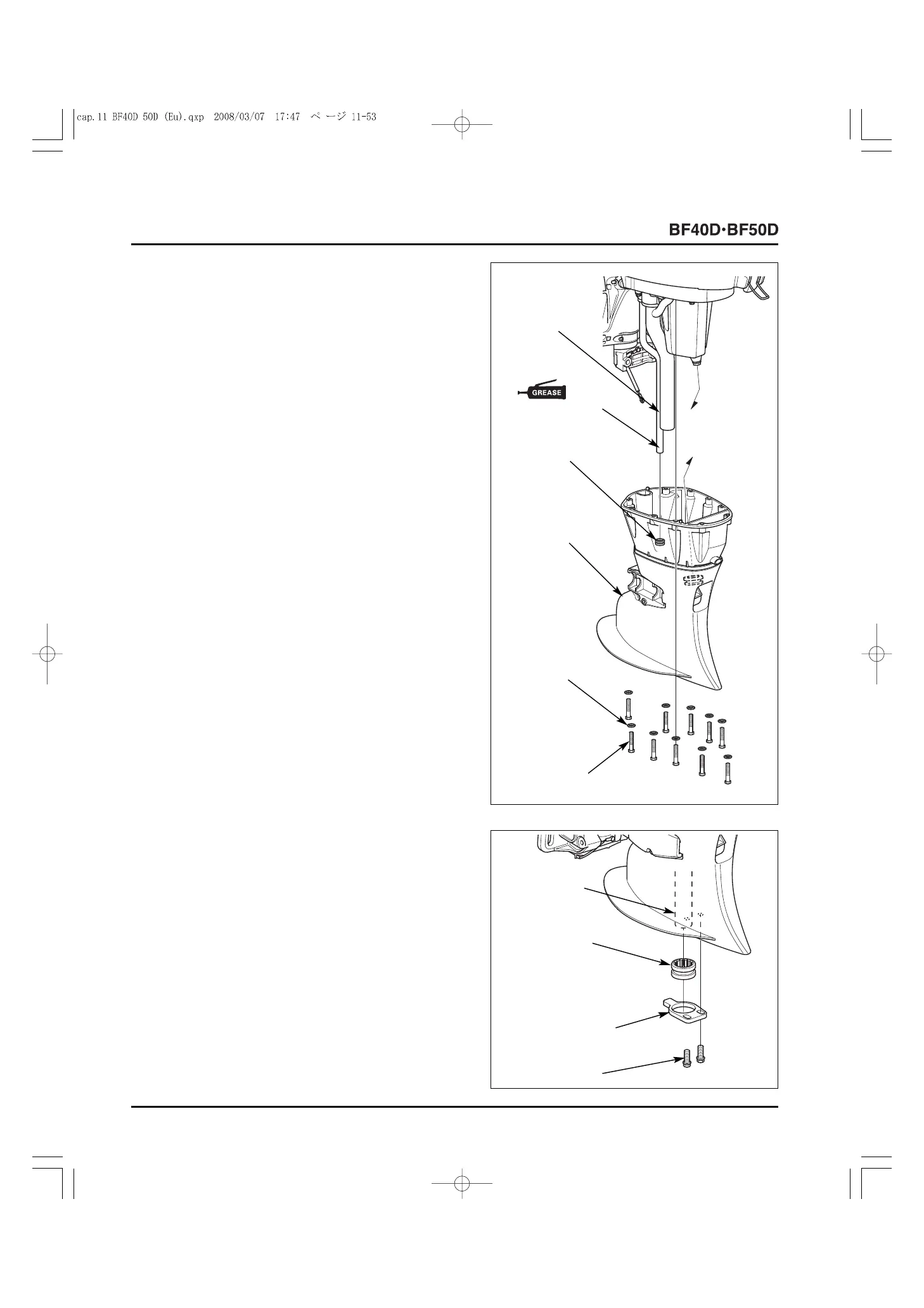

5) Apply marine grease to the water tube end.
Install the extension case on the outboard motor aligning
the water tube with the extension case grommet.
6) Tighten the ten 8 x 35 mm hex bolts to the specified torque.
TORQUE: 22 N
.
m (2.2 kgf
.
m, 16 lbf
.
ft)
[1]
WATER TUBE
[4]
EXTENSION
CASE
[3]
EXTENSION CASE
GROMMET
[6]
8 x 35 mm HEX
BOLT (10)
[5]
8 mm WASHER (10)
7) Install the exhaust pipe grommet on the exhaust pipe
grommet holder [Long/semi-long/extra-long shaft types
only].
8) Install the exhaust pipe grommet holder assembly on the
exhaust pipe, and tighten the two 6 x 20 mm flange bolts
securely [Long/semi-long/extra-long shaft types only].
6 x 20 (2)
[1]
EXHAUST PIPE
[3]
EXHAUST PIPE
GROMMET HOLDER
[2]
EXHAUST PIPE
GROMMET
[2]
(MARINE GREASE)
326
