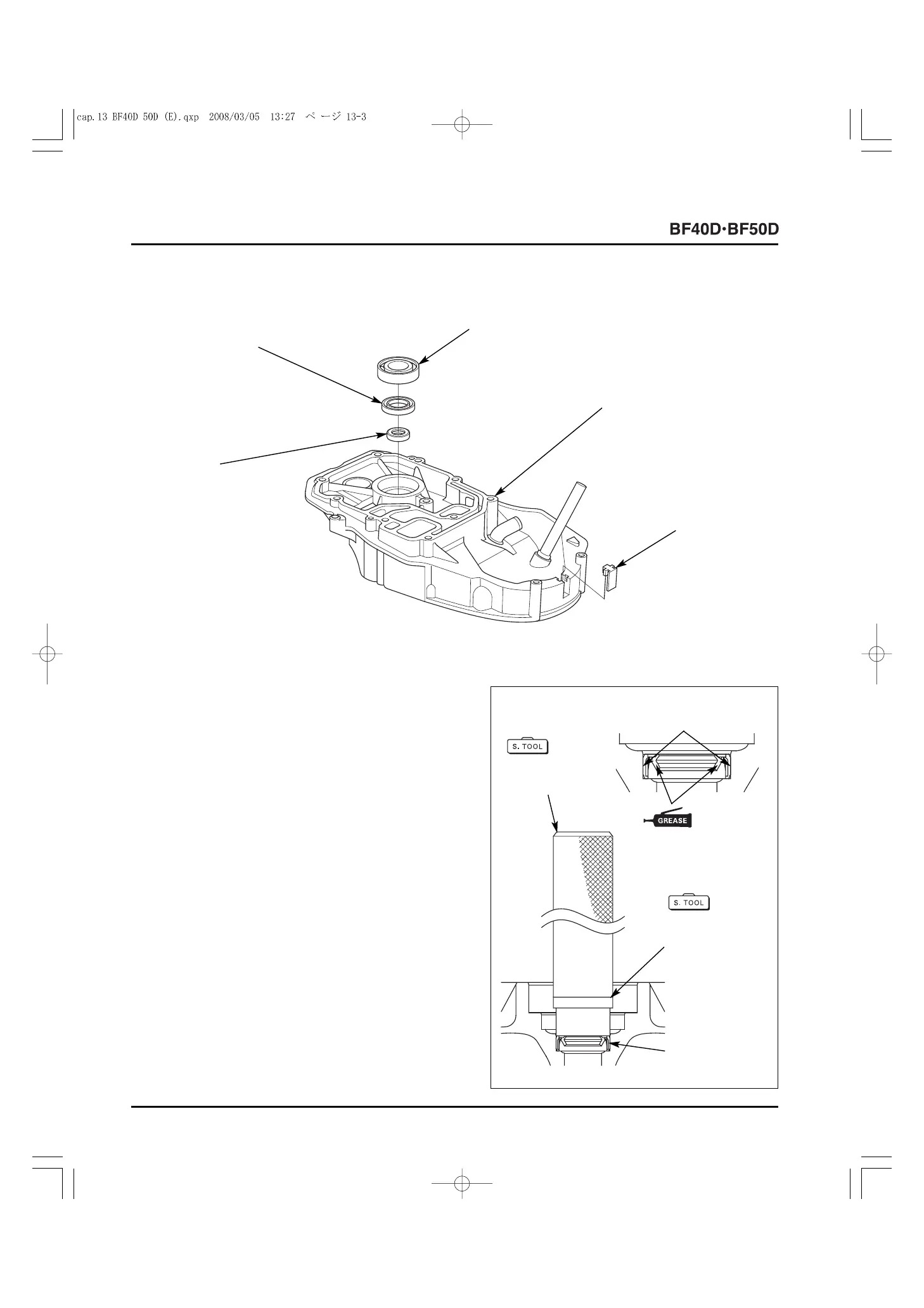

b. MOUNT CASE ASSEMBLY DISASSEMBLY
[5]
MOUNT CASE
SEAL RUBBER
[1]
17 x 26 x 7 mm
WATER SEAL
[3]
6205 RADIAL BALL
BEARING
[2]
25 x 40 x 7 mm
OIL SEAL
c. MOUNT CASE REASSEMBLY
1) Apply soapy water to the outer surface of a new 17 x 26 x
7 mm water seal.
2) Install the water seal using the special tools as shown. Note
the installation direction of the water seal.
TOOLS:
Driver 07749-0010000
Attachment, 24 x 26 mm 07746-0010700
3) After installing the water seal, apply marine grease to the
lip of the water seal.
[4]
DRIVER
07749-0010000
[1] <Water seal installation direction>
[5]
ATTACHMENT,
24 x 26 mm
07746-0010700
[6]
17 x 26 x 7 mm
WATER SEAL
[4]
MOUNT CASE
[3]
(Apply marine grease
to the water seal lip.)
[2] (Apply soapy water
to the outer surface.)
