13-7
6 x 20 (2)
[1]
TRIM ANGLE
SENSOR
[1]
WIRE HARNESS CLIP
[5]
TRIM ANGLE
SENSOR WIRE
[4]
POWER TILT
MOTOR WIRE

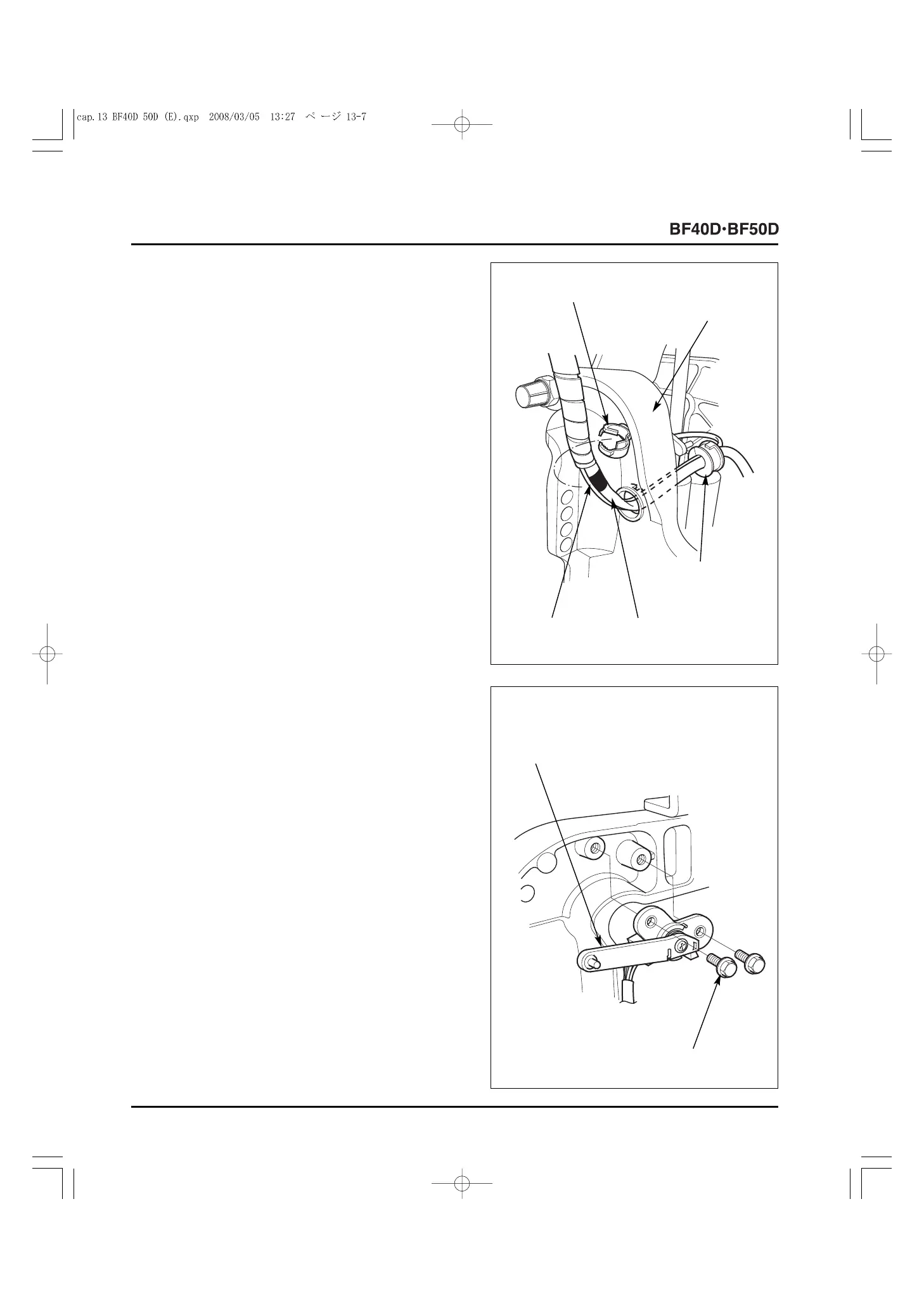

8) Remove the two 6 x 20 mm flange bolts and remove the
trim angle sensor.
[2]
L. STERN
BRACKET
[3]
MOTOR WIRE
BUSHING
5) Open the wire harness clip and release the trim angle
sensor wire and the power tilt motor wire.
6) Pull the power tilt motor wire and the trim angle sensor
wire out of the hole in the L. stern bracket.
7) Remove the motor wire bushing and the wire harness clip.
To Next Page
