10) Remove the L. stern bracket, and remove the 22 mm wave
washer.
11) Remove the gas assisted damper assembly from the R.
stern bracket.
Do not push in the piston rod after removing the gas
assisted damper assembly.
If the piston rod has been pushed down, set it in the fully
extended position (P. 13-11).
12) Remove the lower cylinder collar and the two lower
cylinder bushings from the gas assisted damper assembly.
Check the lower cylinder bushings for wear, damage or
deformation, and replace them with new ones if necessary.

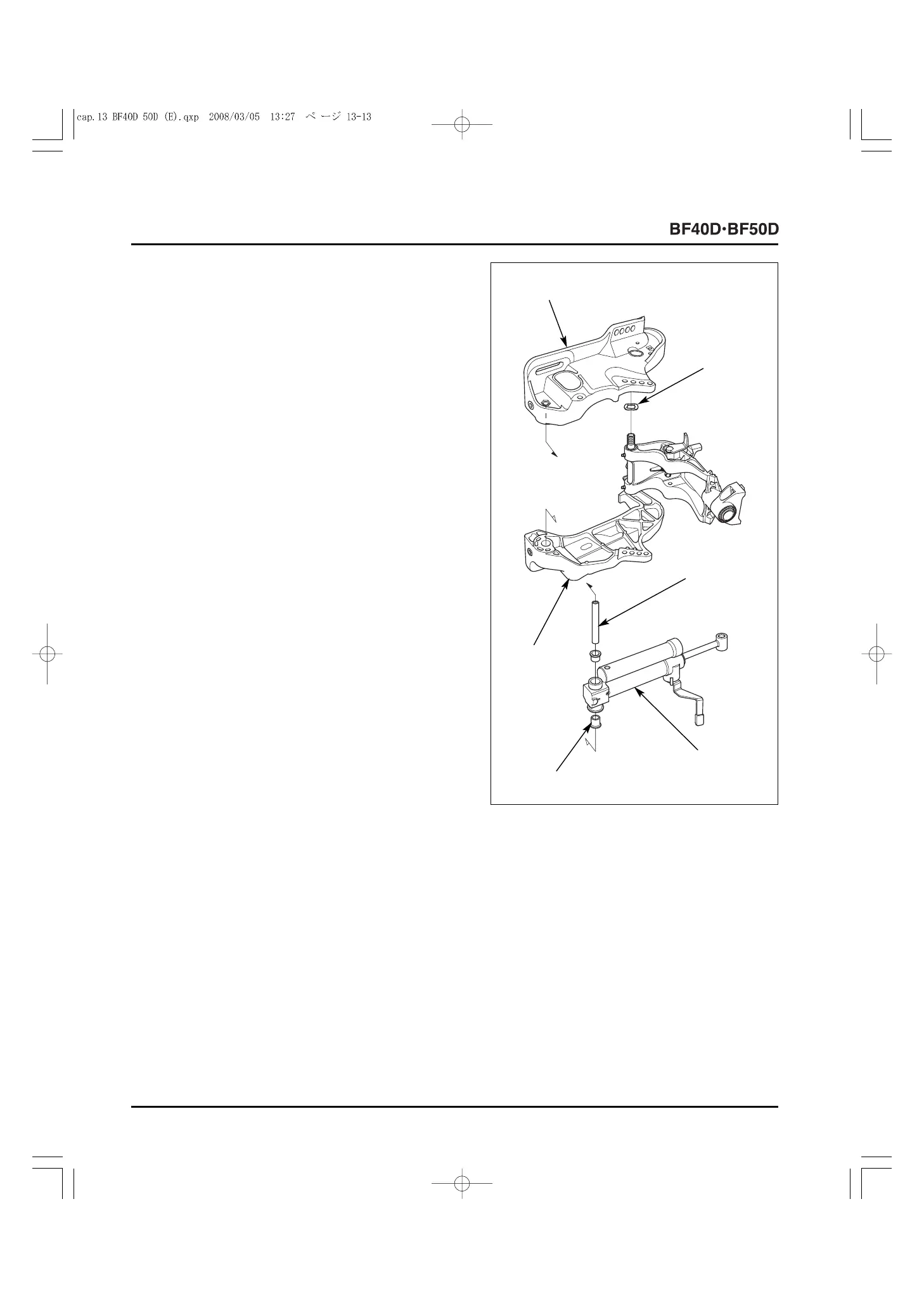

[3]
LOWER
CYLINDER
COLLAR
[1]
L. STERN BRACKET
[5]
LOWER CYLINDER
BUSHING (2)
[2]
22 mm
WAVE
WASHER
[6]
R. STERN
BRACKET
[4]
GAS
ASSISTED
DAMPER
ASSEMBLY
To Next Page
