13-35
[2]
7/8-14 UNF SELF-
LOCKING NUT
[3]
L. STERN
BRACKET
[1]
10 x 158 mm
HEX BOLT
[2]
10 mm WASHER
[3]
10 mm SELF-
LOCKING NUT

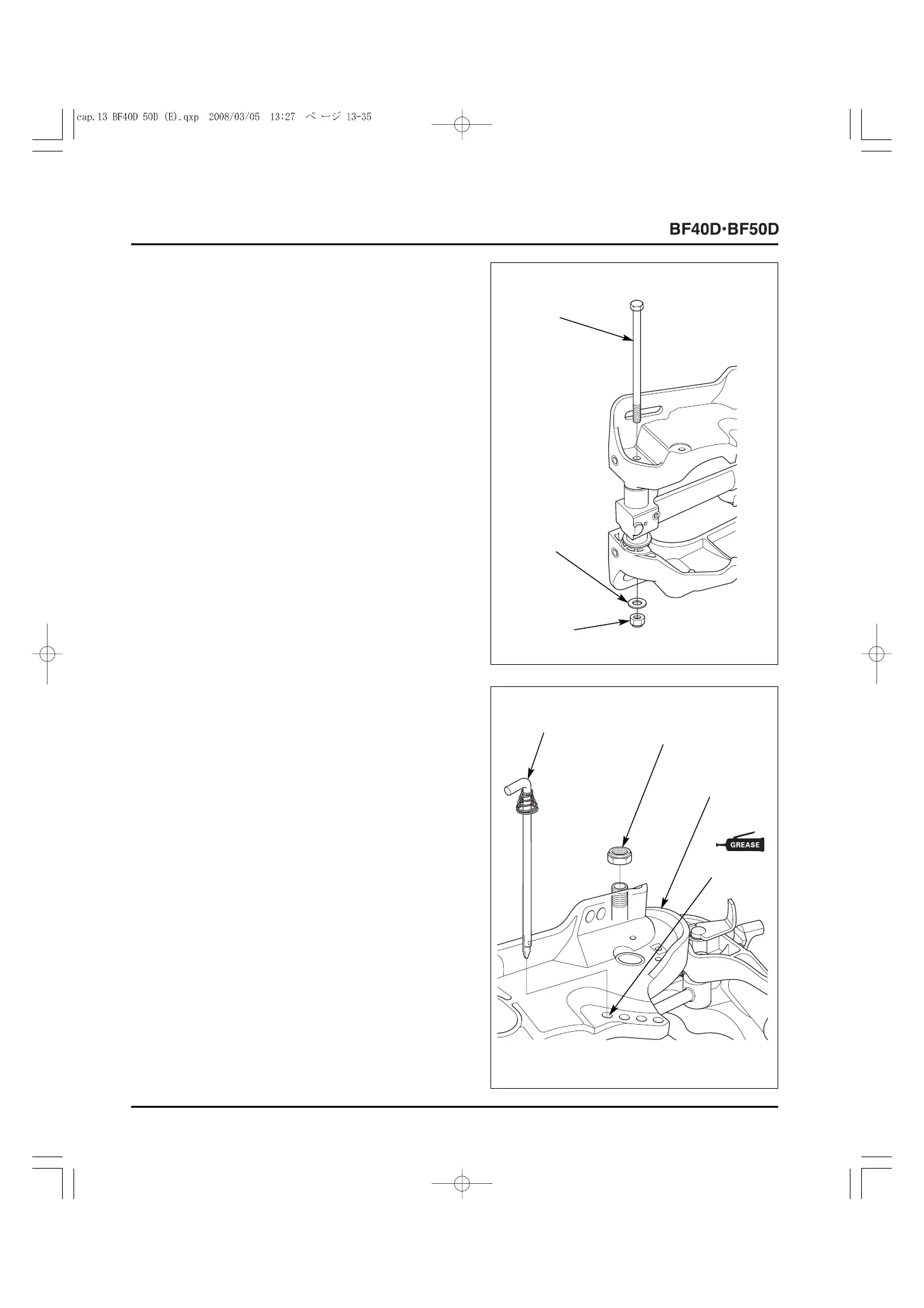

17) Loosely tighten a new 7/8-14 UNF self-locking nut.
18) Apply marine grease to the adjusting rod installation hole
in the L./R. stern bracket, and insert the adjusting rod into
the hole.
[1]
ADJUSTING ROD
16) Set the 10 x 158 mm hex bolt and the 10 mm washer as
shown, and loosely tighten a new 10 mm self-locking nut.
[4]
(MARINE
GREASE)
To Next Page
