7-15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

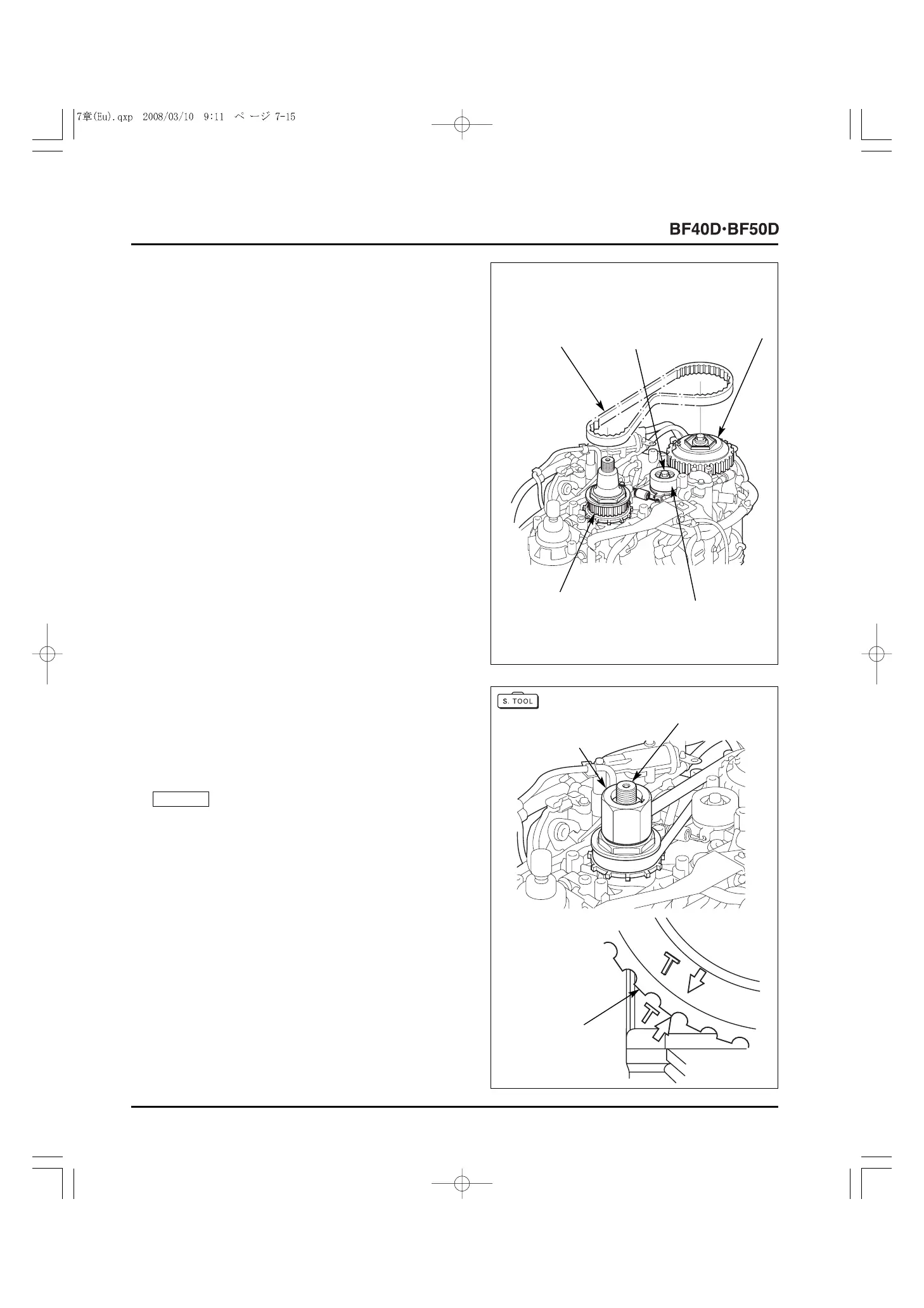

11) Install the timing belt on the timing pulley side first, then on
the pulser rotor side.
• Install the timing belt with care not to bring the marks on
the pulser rotor and on the timing mark out of alignment.
12) Loosen the 10 x 38 mm flange bolt of the timing belt
tensioner.
• Do not tighten the 10 x 38 mm flange bolt.
13) Install the special tool on the crankshaft.
TOOL:
Crankshaft holder 070PB-ZZ50100
14) Turn the crankshaft 2 turns counterclockwise using the
alignment mark on the pulser rotor as the reference point.
Do not turn the crankshaft clockwise.
NOTICE
[1]
CRANKSHAFT HOLDER
070PB-ZZ50100
[2]
CRANKSHAFT
[3]
PULSER ROTOR
[2]
PULSER ROTOR
[4]
TIMING PULLEY
10 x 38
[3]
TIMING BELT TENSIONER
[1]
TIMING BELT
