7-16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

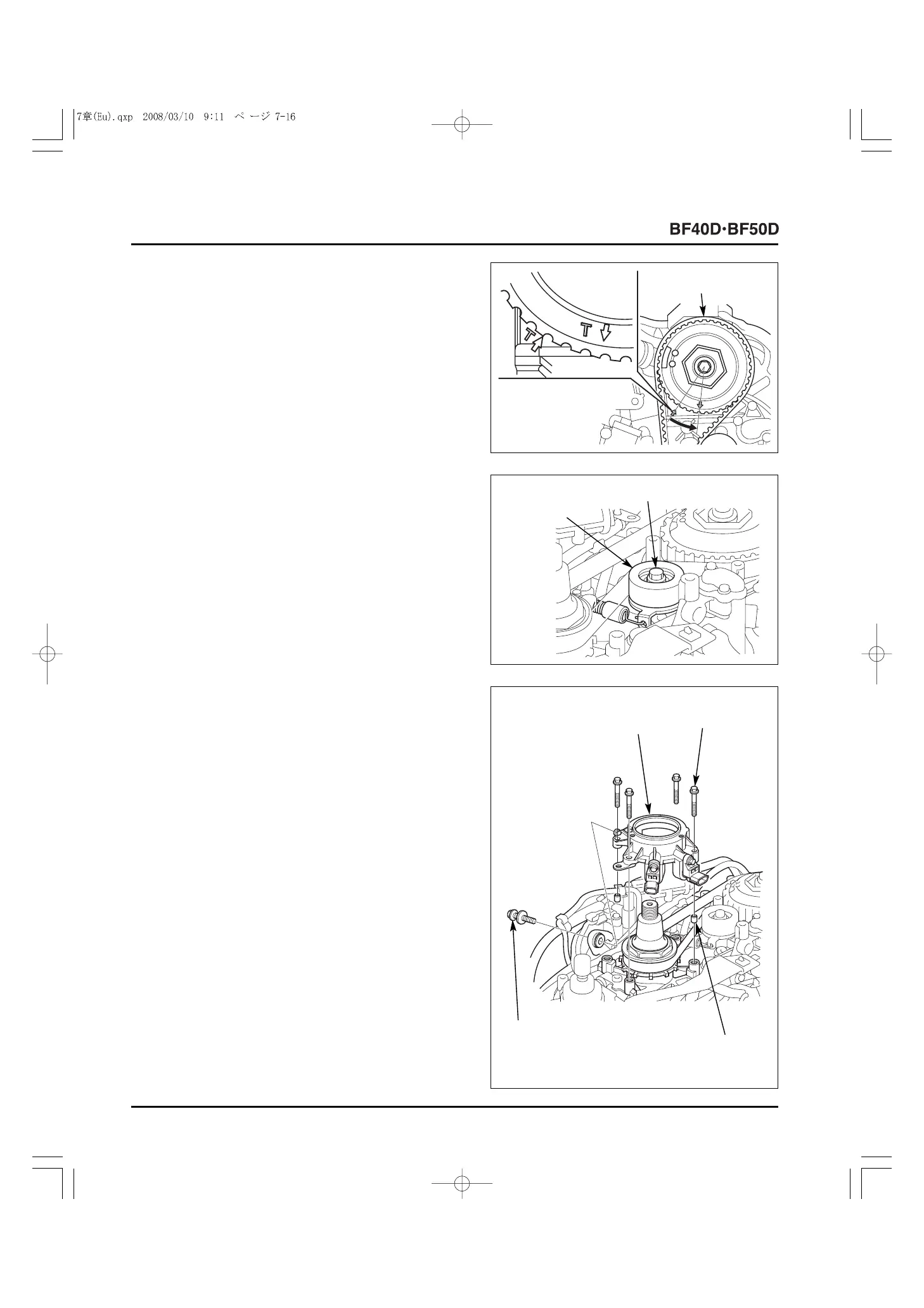

15) Turn the crankshaft counterclockwise further until the
pulser rotor turns by 3 ridges of the gear teeth.
16) Tighten the 10 x 38 mm flange bolt of the timing belt
tensioner to the specified torque.
TORQUE: 45 N
.
m (4.6 kgf
.
m, 33 lbf
.
ft)
• The timing belt tensioner is automatically adjusted. Do
not push the tensioner toward the belt by hand.
17) Install the two 8 x 10 mm dowel pins and the alternator
bracket, and tighten the four 6 x 30 mm flange bolts and the
6 x 25 mm bolt-washer securely.
[1]
PULSER ROTOR
[1]
TIMING BELT
TENSIONER
10 x 38
[1]
ALTERNATOR
BRACKET
[2]
8 x 10 mm
DOWEL PIN (2)
6 x 30 (4)
[3]
6 x 25 mm BOLT-
WASHER
