7-17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

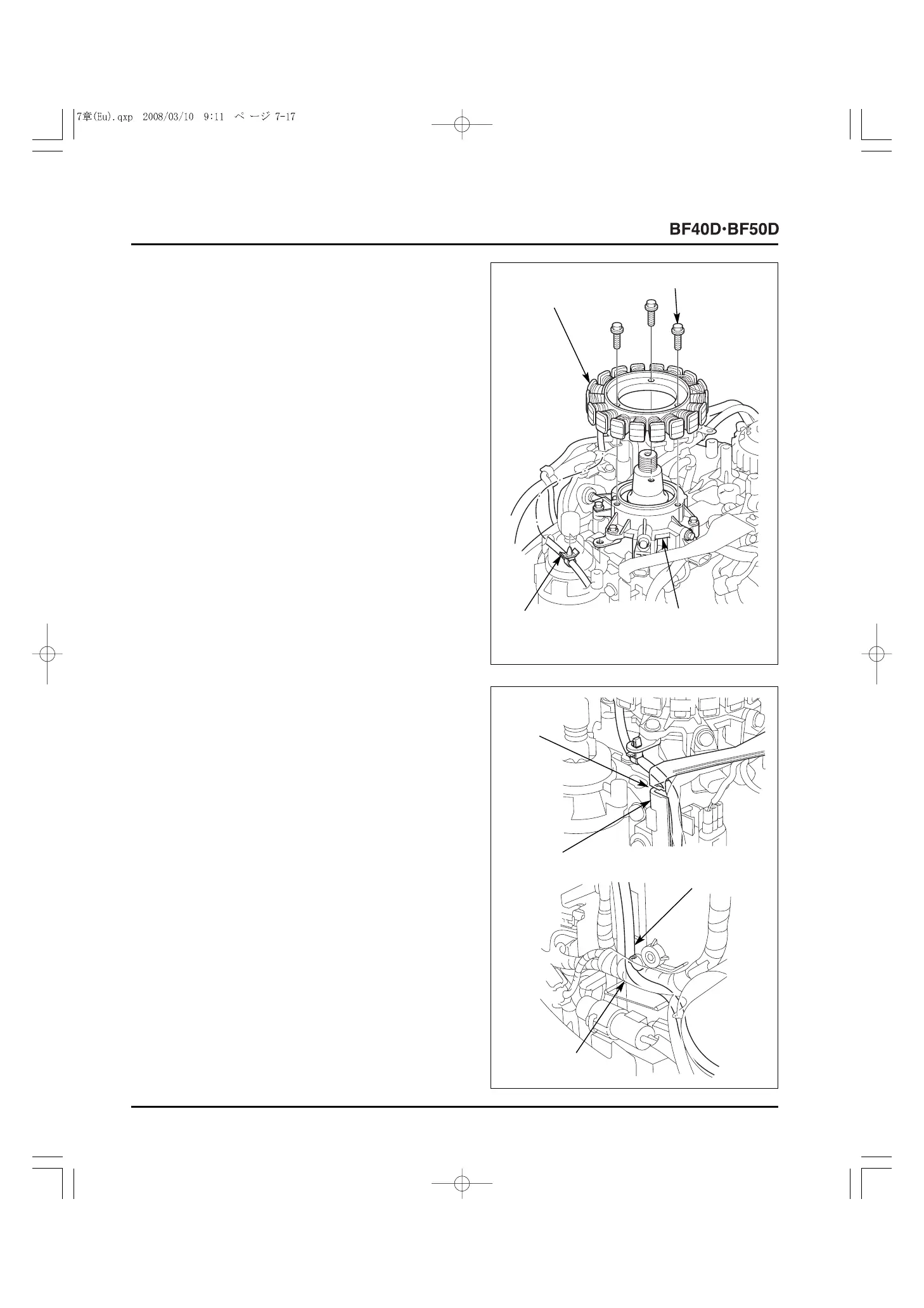

18) Install the alternator stator on the alternator bracket, and
tighten the three 6 x 25 mm flange bolts securely.
19) Install the harness band clip on the alternator bracket.
20) Route the alternator stator wire through the cutout in the
electric part case.
21) Route the alternator stator wire through the gap between
the electric part case and the main wire harness as shown.
[4]
MAIN WIRE
HARNESS
[3]
ALTERNATOR
STATOR WIRE
[2]
ALTERNATOR
BRACKET
[1]
ALTERNATOR
STATOR
[3]
HARNESS
BAND CLIP
6 x 25 (3)
[1]
CUTOUT
[2]
ELECTRIC
PART CASE
50
