b. DISASSEMBLY
1) Remove the three 5 x 20 mm screws, and remove the yoke
and the O-ring.
Replace the O-ring with a new one on reassembly.
2) Remove the armature, and remove the brush springs.
3) Remove the 4 x 12 mm screw, and remove the brush
assembly.
4) Disconnect the terminal wire (blue wire) from the breaker
assembly.
Remove the 4 x 12 mm screw, and remove the breaker
assembly.
5) Check the oil seal for damage and replace it with a new one
if necessary.
Remove the oil seal.
Replace the oil seal with a new one on reassembly.

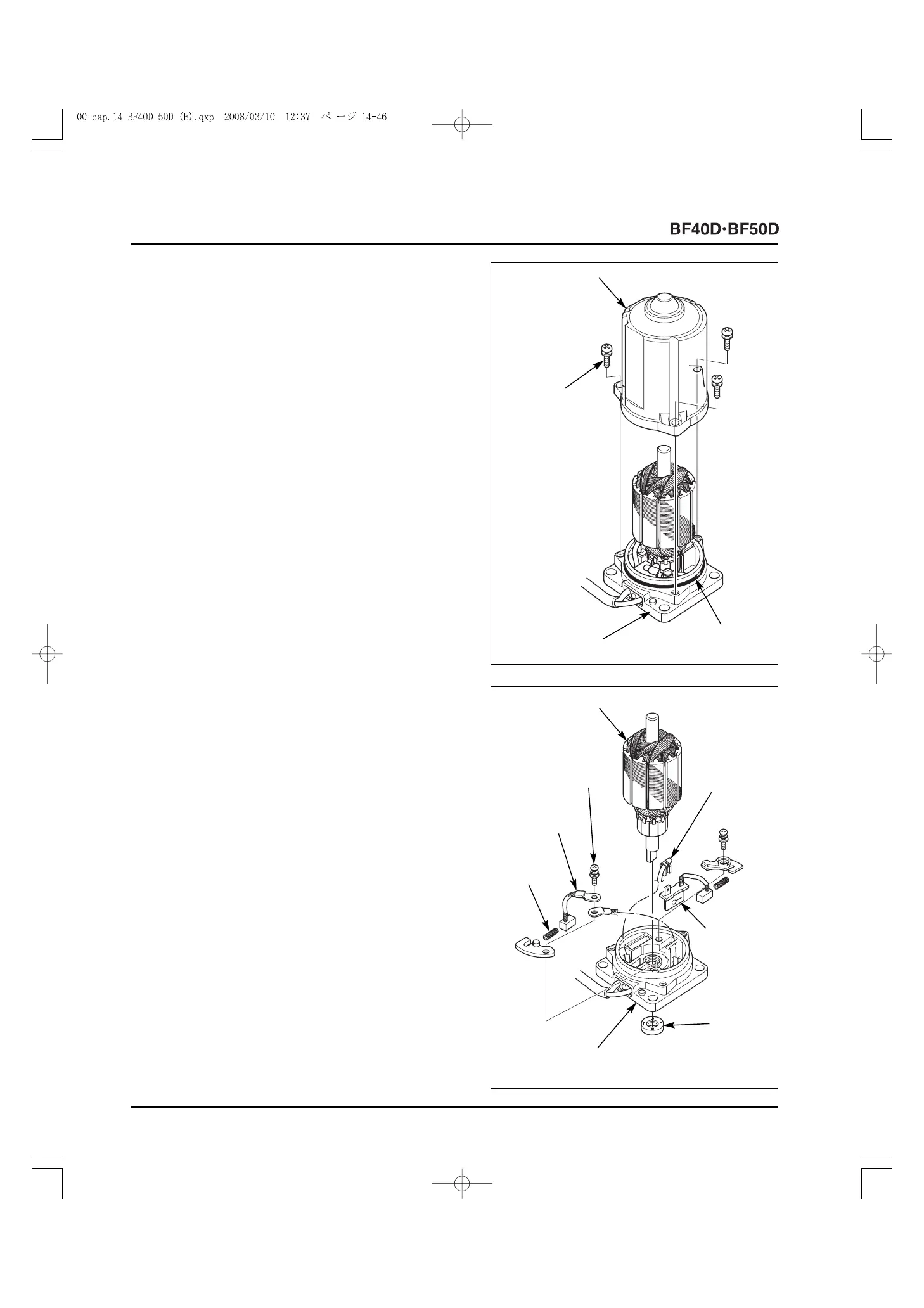

[2] 5 x 20 mm
SCREW (3)
[1] YOKE
[4] O-RING
[3]
FRONT BRACKET
ASSEMBLY
[8]
FRONT BRACKET
ASSEMBLY
[1]
BRUSH
SPRING (2)
[2]
BRUSH
ASSEMBLY
[5]
TERMINAL
WIRE (BLUE
WIRE)
[6]
BREAKER
ASSEMBLY
[3]
4 x 12 mm
SCREW (2)
[4] ARMATURE
[7]
OIL SEAL
