14-47

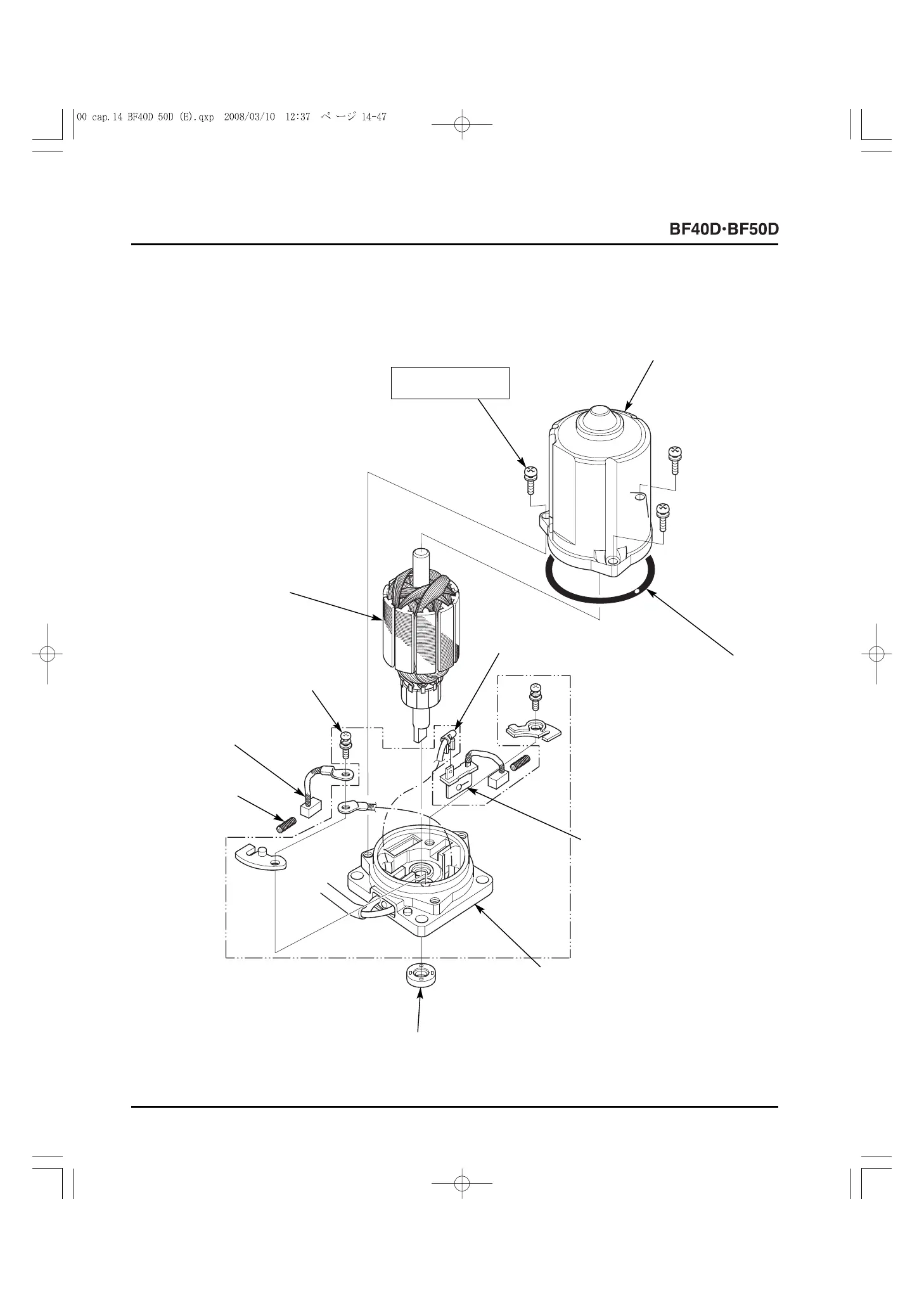

c. COMPONENT DRAWING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
[2] YOKE
[11] ARMATURE
[6]
FRONT BRACKET ASSEMBLY
[3] O-RING
[7]
OIL SEAL
[8]
BRUSH SPRING (2)
[9] BRUSH ASSEMBLY
[4]
TERMINAL WIRE
(BLUE WIRE)
[5]
BREAKER ASSEMBLY
[10]
4 x 12 mm SCREW (2)
[1]
5 x 20 mm SCREW (3)
2.1 N
.
m (0.2 kgf
.
m,
1.5 lbf
.
ft)
