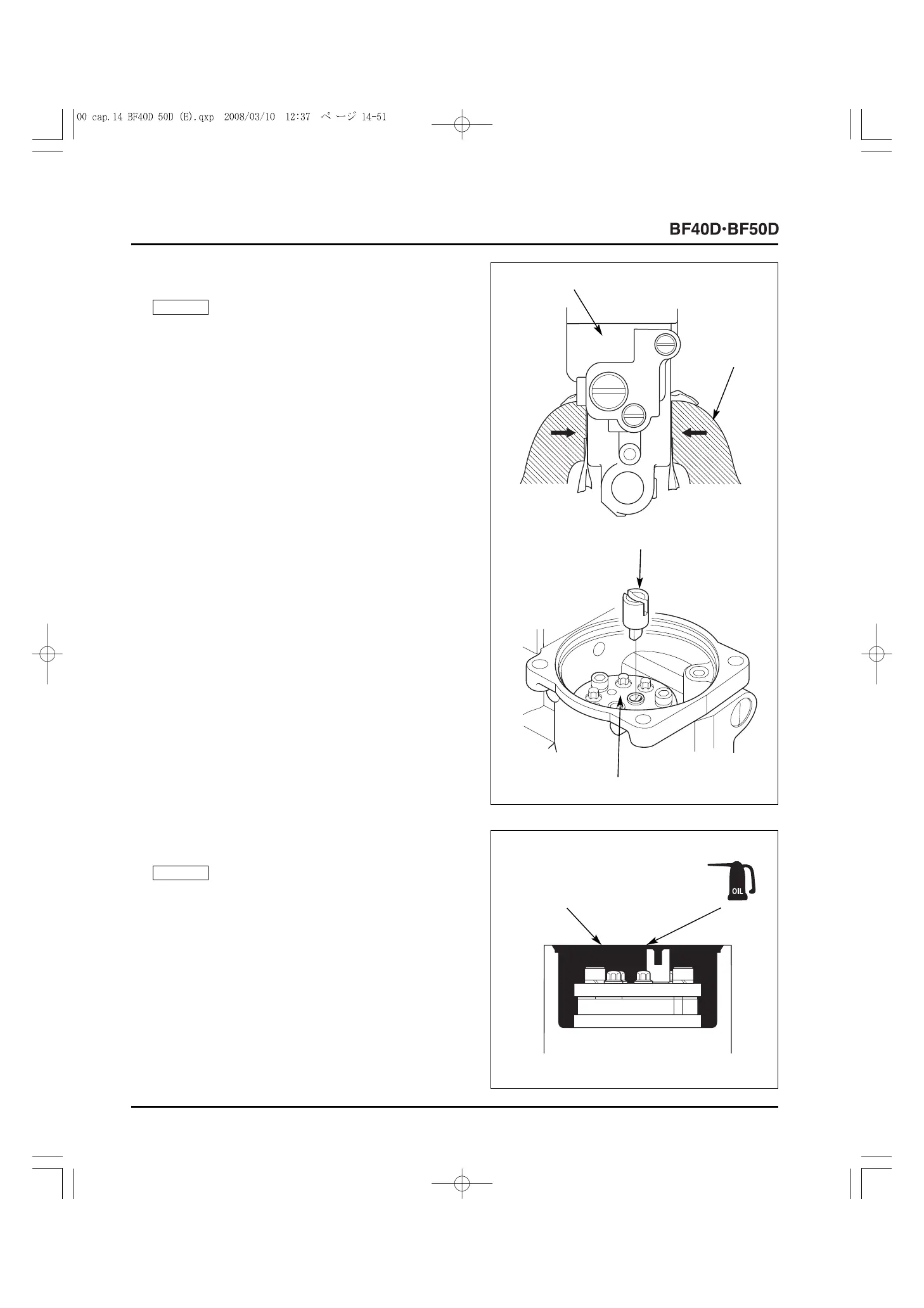

f. INSTALLATION
1) Set the cylinder comp. in a vise.
Do not tighten the vise excessively, as it can damage the
cylinder comp.
2) Install the drive joint in the gear pump assembly in the
position shown.
NOTICE
3) Pour the ATF into the gear pump chamber of the cylinder
comp. until it flows out.
After pouring the ATF, check the ATF in the gear pump
chamber for bubbles. If the ATF contains bubbles, remove
them using an oil bottle or equivalent tool. Note that the
bubbles in the ATF will cause air in the system.
After removing the bubbles, fill the gear pump chamber
with fresh ATF again.
NOTICE
[3] DRIVE JOINT
[4] GEAR PUMP ASSEMBLY
[1]
GEAR PUMP CHAMBER
[1] CYLINDER COMP.
[2]
VISE
(ATF)
To Next Page
