6 x 20 (2)
[4]
HO2S 4P
CONNECTOR
[3]
ECM BRACKET
[1]
ELECTRIC PART CASE
[2]
ECM
7-19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

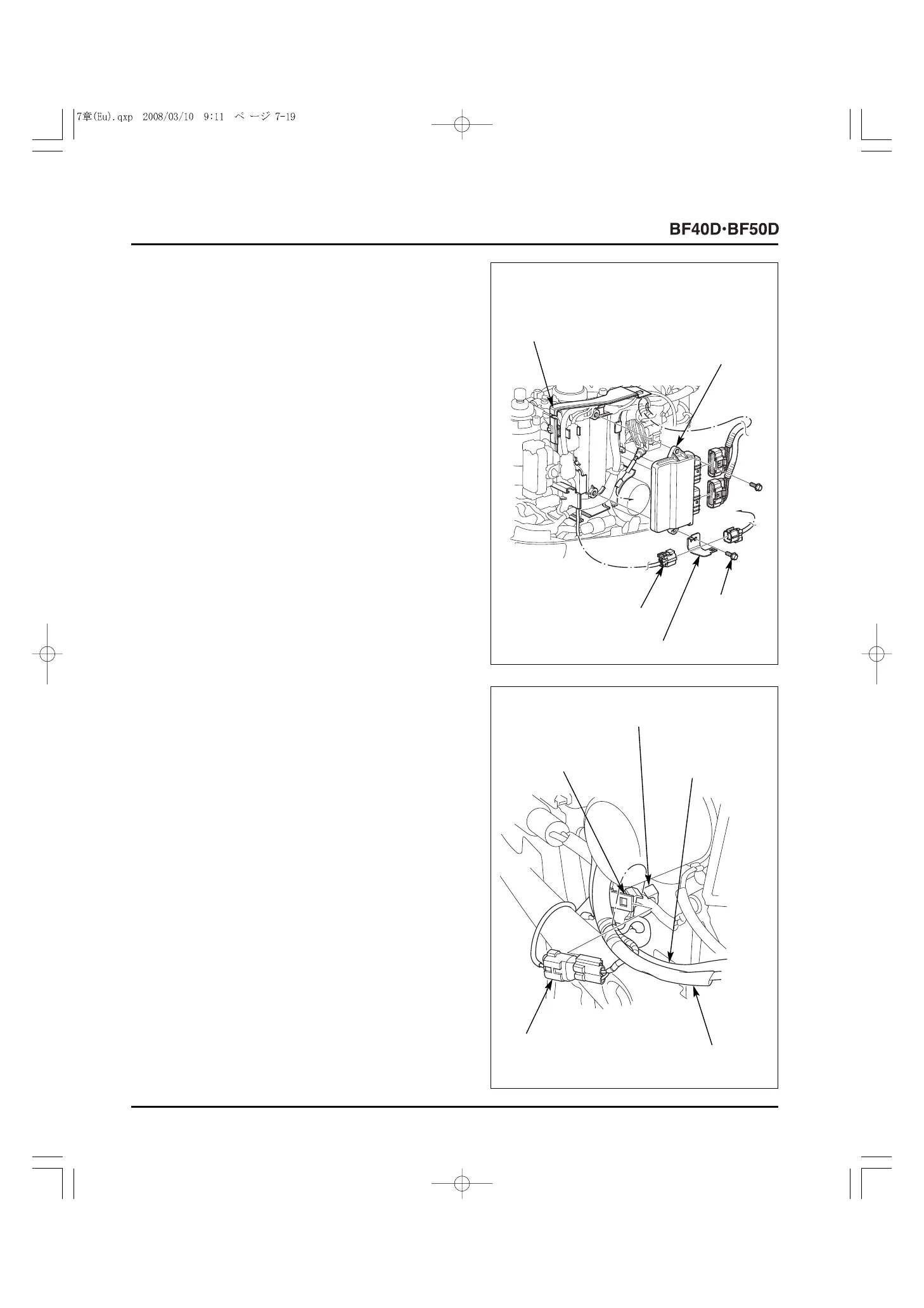

26) Set the ECM and the ECM bracket on the electric part case,
and tighten the two 6 x 20 mm flange bolts to the specified
torque.
TORQUE: 5 N
.
m (0.5 kgf
.
m, 3.7 lbf
.
ft)
27) Install the HO2S 4P connector on the ECM bracket and
connect the connector.
28) Set the alternator stator wire and the main wire harness in
the wire harness clip.
29) Install the power tilt relay 2P connector on the harness clip
bracket A [Power trim/tilt type only].
[5]
POWER TILT RELAY
2P CONNECTOR
[3]
ALTERNATOR
STATOR WIRE
[4]
MAIN WIRE
HARNESS
[2]
WIRE HARNESS CLIP
[1]
HARNESS CLIP
BRACKET A
