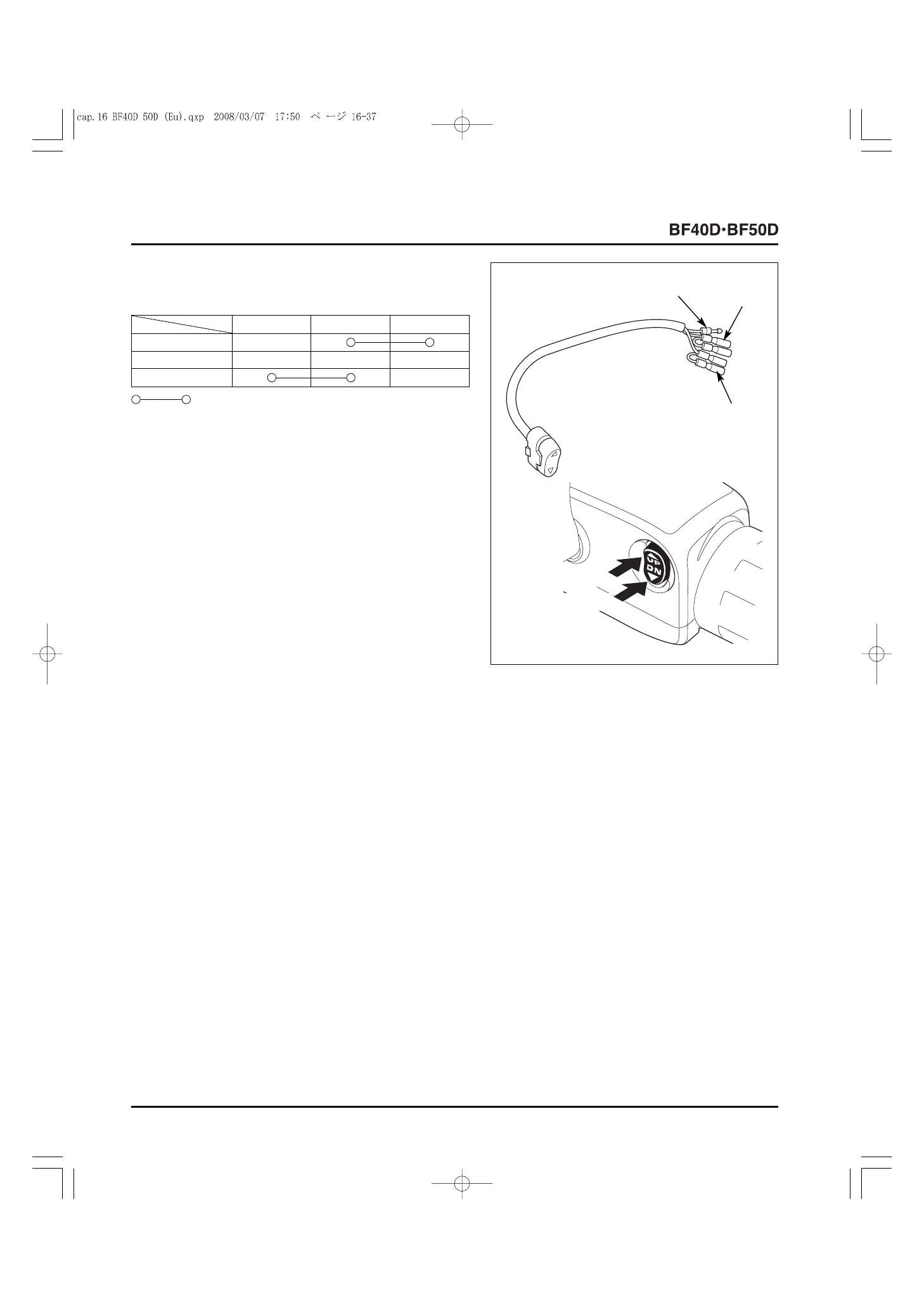

• POWER TILT SWITCH
Check for continuity between the terminals with the switch in
each position.
[5] DN (Down)
[4] UP (Up)
[3]
LIGHT
BLUE
[1]
WHITE/BLACK
[2]
LIGHT
GREEN
: Continuity
If there is any abnormality, replace the switch with a new one.
Light blue White/black Light green
UP (Up)
Neutral
DN (Down)
