17-3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

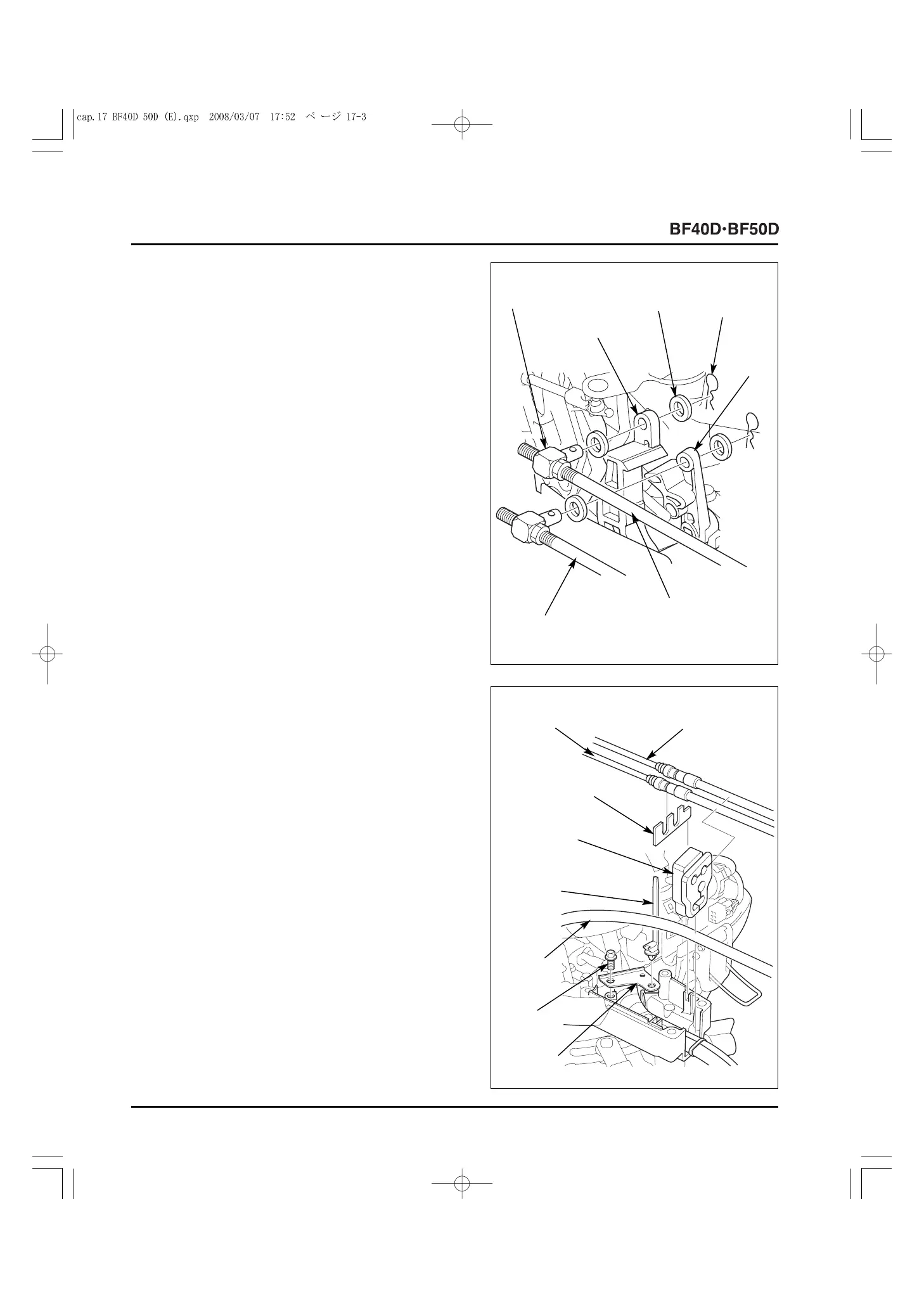

4) Remove the two 6 mm lock pins and the two 6 mm washers
from the two remote control cables, and remove the
remote control cables from the throttle arm and the shift
link B.
Remove the two 6 mm washers from the shift pivot of each
remote control cable.
5) Remove the two remote control cables from the under case
grommet A and the remote control cable plate.
6) Remove the remote control cable plate.
7) Open the harness band clip.
8) Remove the 6 x 12 mm flange bolt, and remove the cable
clip bracket from the engine under case.
9) Remove the under case grommet A from the engine under
case.
10) Remove the starter cable and the handle cable from the
under case grommet A [Tiller handle type only].
Remove the starter cable and the remote control cable A
from the under case grommet A [Remote control type
only].
[6]
REMOTE CONTROL
CABLE [THROTTLE SIDE]
[7]
REMOTE CONTROL
CABLE [SHIFT SIDE]
[3]
6 mm
WASHER (4)
[4]
6 mm LOCK
PIN (2)
[2]
THROTTLE
ARM
[5]
SHIFT
LINK B
[1]
SHIFT
PIVOT (2)
[6]
UNDER CASE
GROMMET A
[7]
REMOTE CONTROL
CABLE PLATE
[5]
HARNESS
BAND CLIP
[4]
HANDLE
CABLE
[1]
REMOTE CONTROL
CABLE [THROTTLE SIDE]
[2]
REMOTE CONTROL
CABLE [SHIFT SIDE]
[3]
CABLE CLIP
BRACKET
6 x 12
