17-4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

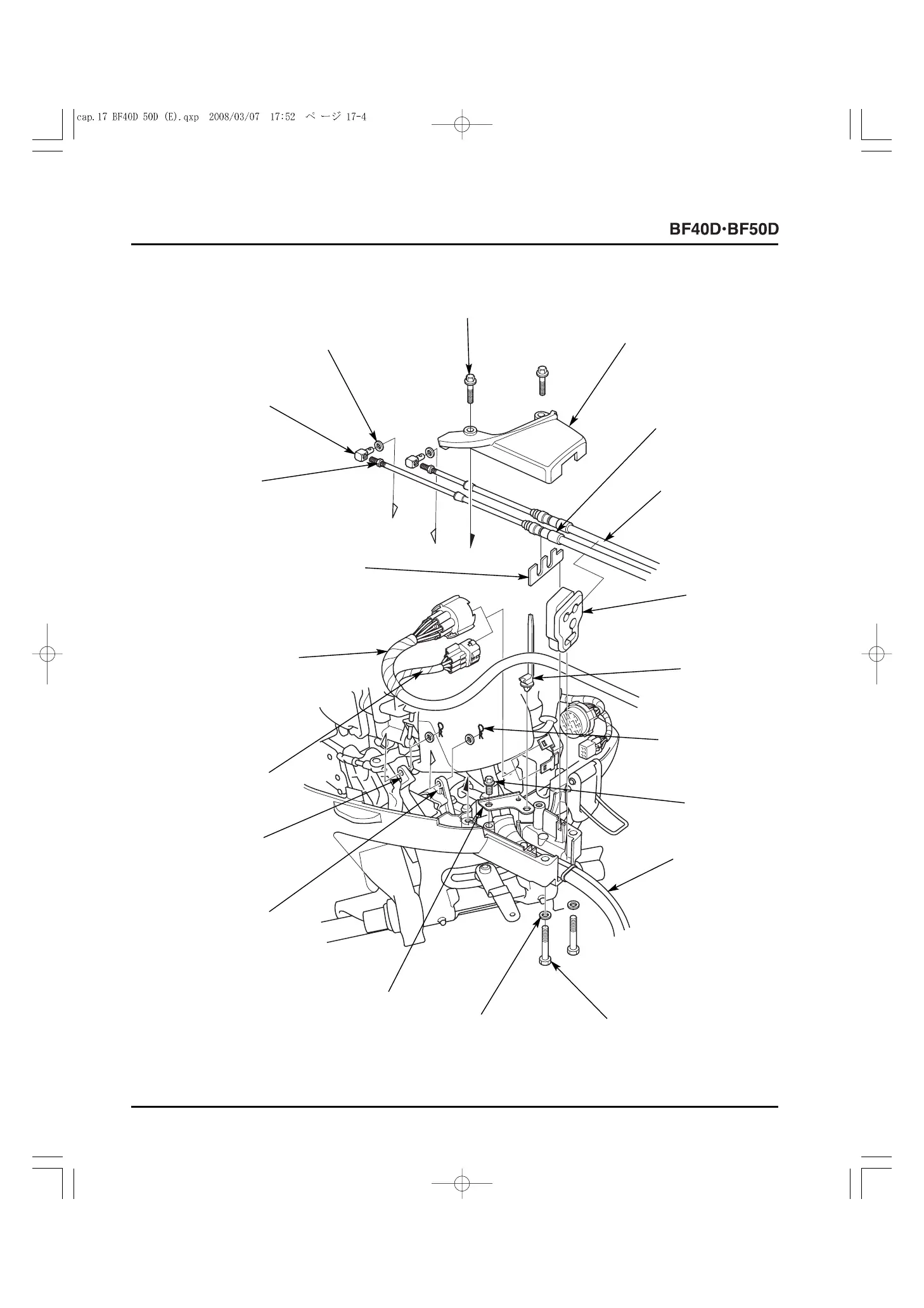

b. COMPONENT DRAWING
6 x 28 (2)
[4]
SEPARATE CASE
[11]
6 x 40 mm HEX
BOLT (2)
[12]
6 mm WASHER (2)
[17]
HANDLE CABLE
[TILLER HANDLE TYPE ONLY]
REMOTE CONTROL CABLE A
[REMOTE CONTROL TYPE
ONLY]
[16]
INDICATOR WIRE
[REMOTE CONTROL
TYPE ONLY]
[5]
REMOTE CONTROL
CABLE
[THROTTLE SIDE]
[6]
REMOTE CONTROL
CABLE [SHIFT SIDE]
[3]
6 mm WASHER (4)
[9]
6 mm LOCK PIN (2)
[2]
SHIFT PIVOT (2)
[1]
LOCK NUT (2)
[15]
THROTTLE ARM
[14]
SHIFT LINK B
[7]
UNDER CASE
GROMMET A
[18]
REMOTE CONTROL
CABLE PLATE
[10]
STARTER CABLE
[8]
HARNESS BAND
CLIP
[13]
CABLE CLIP BRACKET
6 x 12
