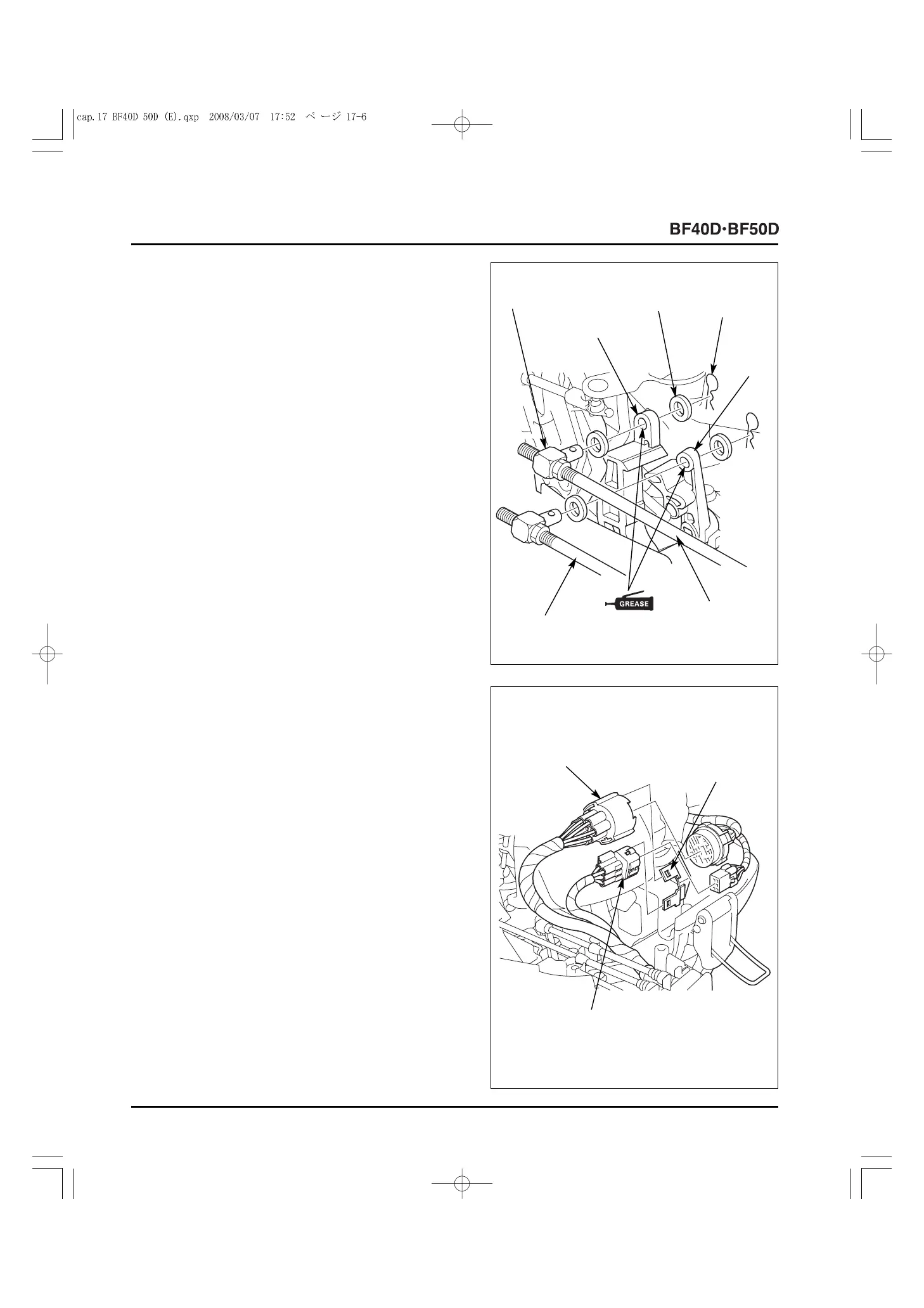

7) Apply marine grease to the shift pivot installation hole in
each of the throttle arm and the shift link B.
8) Set the 6 mm washers on the shift pivot of the respective
remote control cables.
Set the remote control cables on the throttle arm and the
shift link B, and install the 6 mm washers and the 6 mm lock
pins.
9) Connect the handle cable 14P connector and the handle
cable 6P connector, and install the 14P connector and the
6P connector on the main relay bracket [Tiller handle type
only].
Connect the remote control cable A 14P connector and the
indicator wire 6P connector, and install the 14P connector
and the 6P connector on the main relay bracket [Remote
control type only].
[1]
HANDLE CABLE 14P CONNECTOR
[TILLER HANDLE TYPE ONLY]
REMOTE CONTROL CABLE A
14P CONNECTOR
[REMOTE CONTROL TYPE ONLY]
[3]
HANDLE CABLE 6P CONNECTOR
[TILLER HANDLE TYPE ONLY]
INDICATOR WIRE
6P CONNECTOR
[REMOTE CONTROL TYPE ONLY]
[2]
MAIN RELAY
BRACKET
[6]
REMOTE CONTROL
CABLE [THROTTLE
SIDE]
[8]
REMOTE
CONTROL CABLE
[SHIFT SIDE]
[3]
6 mm
WASHER (4)
[4]
6 mm LOCK
PIN (2)
[2]
THROTTLE
ARM
[5]
SHIFT
LINK B
[1]
SHIFT
PIVOT (2)
[7]
(MARINE
GREASE)
