17-7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

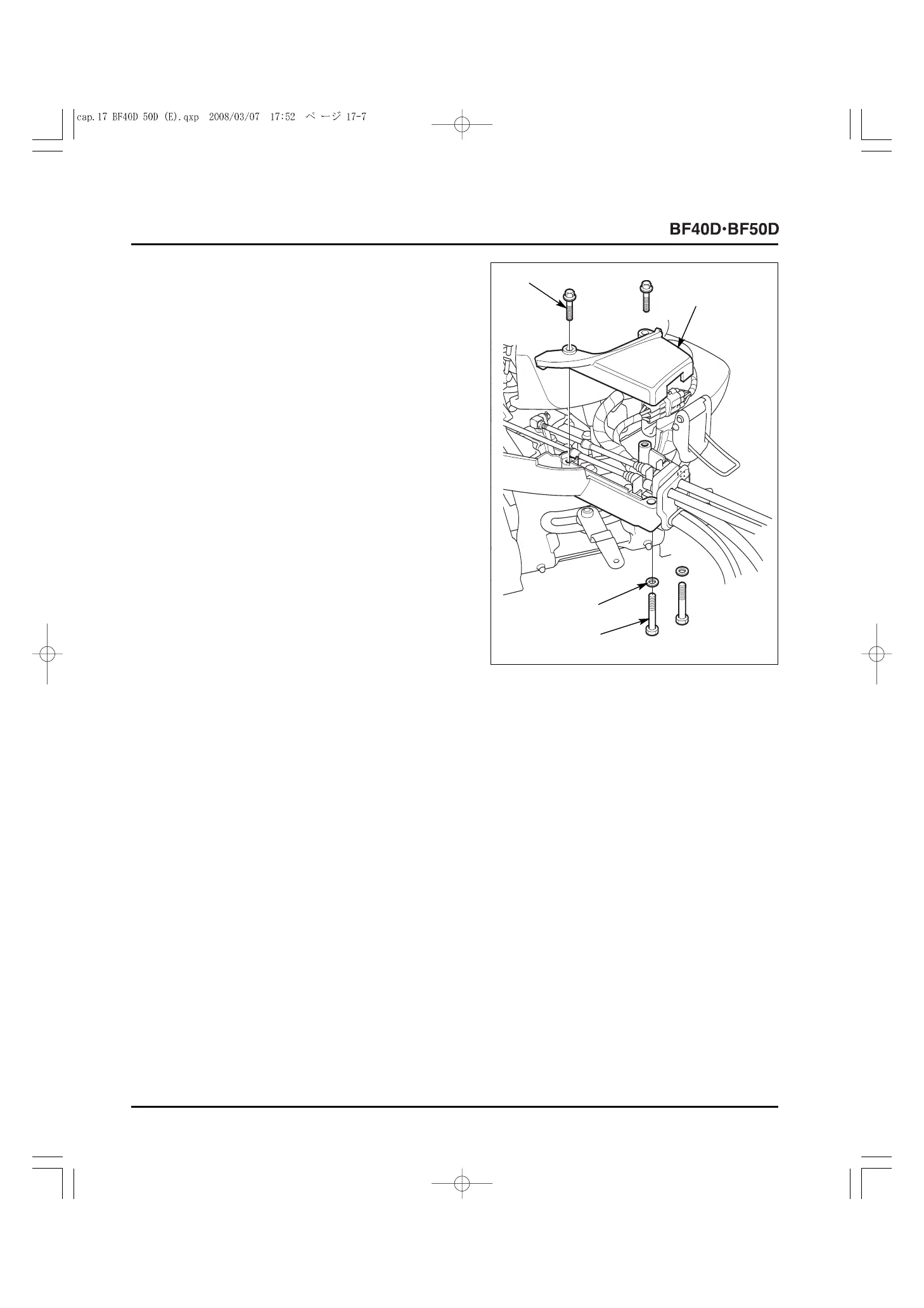

10) Install the separate case, and tighten the two 6 x 28 mm
flange bolts, two 6 mm washers and the two 6 x 40 mm hex
bolts securely.
11) Perform the following adjustments.
- Throttle cable (P. 3-17)
- Shift cable (P. 3-20)
12) Install the engine cover (P. 4-2).
6 x 28 (2)
[1]
SEPARATE
CASE
[3] 6 x 40 mm HEX
BOLT (2)
[2]
6 mm
WASHER (2)
650
