b. DISASSEMBLY
Remove the throttle arm bracket assembly (P. 17-8).
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
[5]

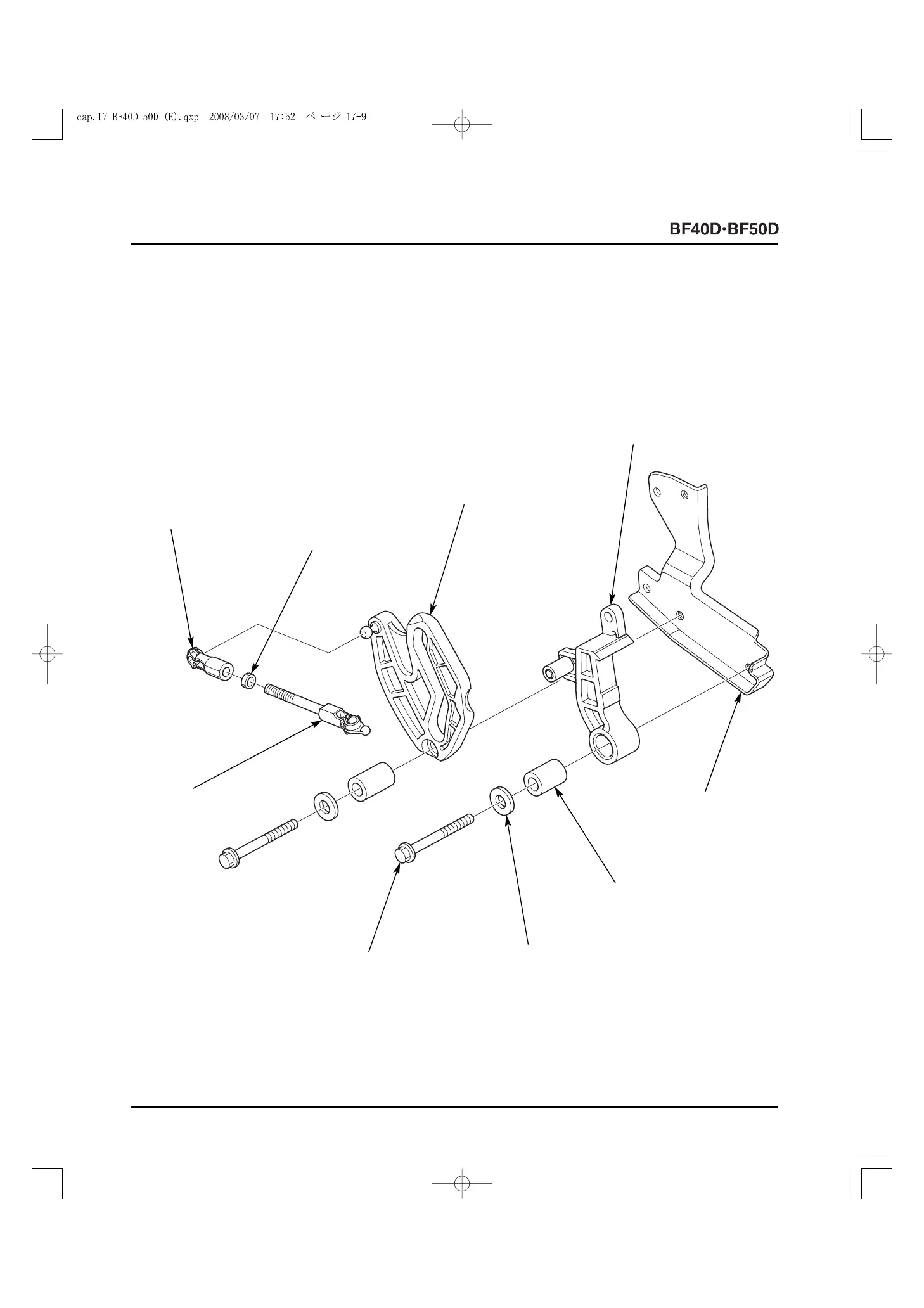

THROTTLE ARM
BRACKET
[6]
20.5 x 11 x 6 mm
DISTANCE COLLAR (2)
[7]
PIVOT WASHER (2)
[4]
THROTTLE ARM
[3]
THROTTLE CAM
[8]
THROTTLE ROD
[1]
LINKAGE PIVOT
[2]
5 mm HEX NUT
6 x 30 (2)
