Honda BF40D - Page 70

7-27
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

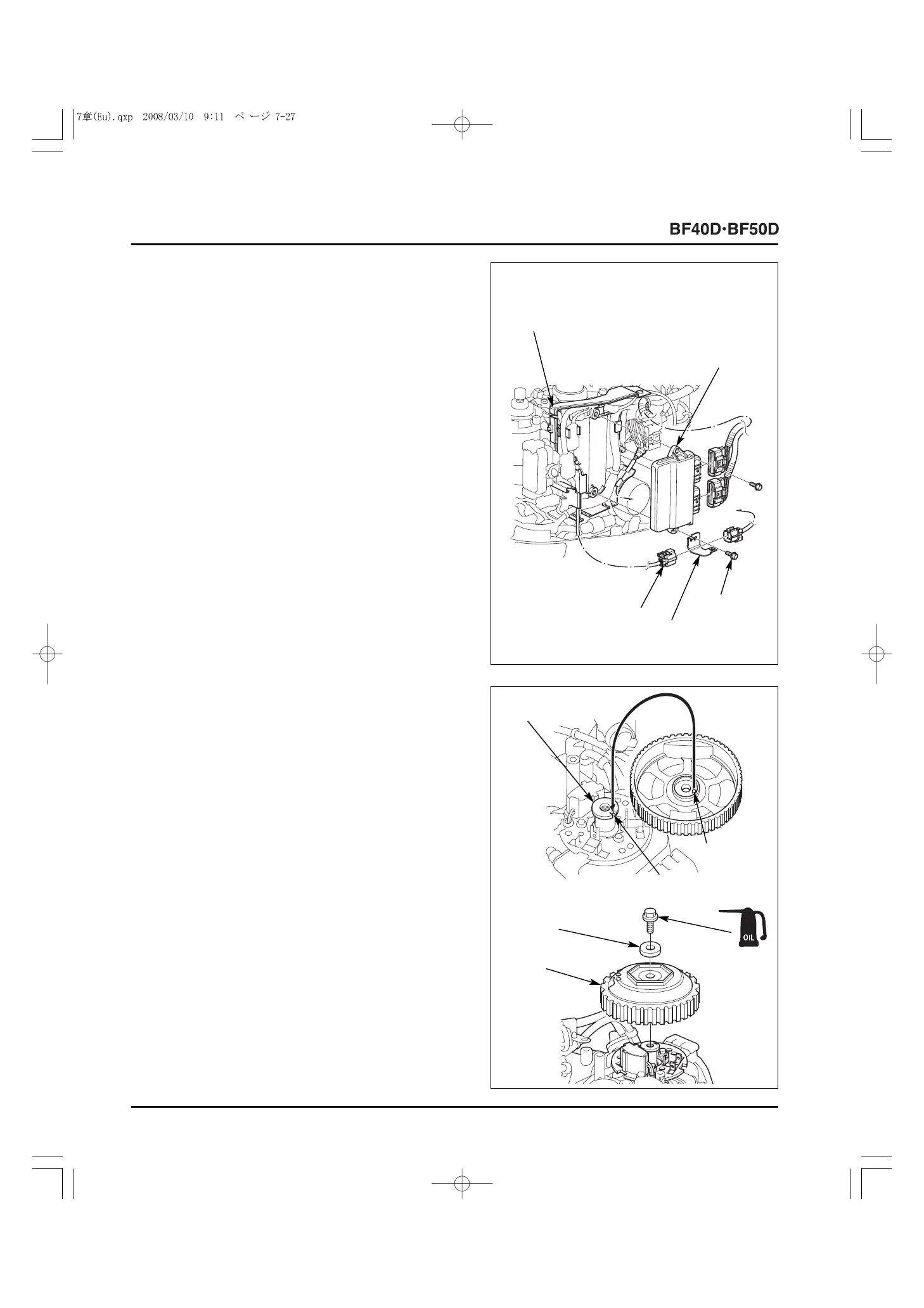

6) Set the ECM and the ECM bracket on the electric part case,
and tighten the two 6 x 20 mm flange bolts to the specified
torque.
TORQUE: 5 N
.
m (0.5 kgf
.
m, 3.7 lbf
.
ft)
7) Install the HO2S 4P connector on the ECM bracket, and
connect the connector.
8) Install the pulser rotor on the camshaft while aligning the
projection on the pulser rotor with the recess in the
camshaft.
9) Apply engine oil to the threads and seat of the 10 x 32 mm
flange bolt.
10) Set the 10 x 28 x 5 mm washer on the 10 x 32 mm flange
bolt, and loosely tighten the 10 x 32 mm flange bolt.
[3]
RECESS
[4]
10 x 28 x 5 mm
WASHER
[5]
PULSER
ROTOR
[1]
CAMSHAFT
[2]
PROJECTION
10 x 32
[4]
HO2S 4P CONNECTOR
[1]
ELECTRIC PART CASE
[3]
ECM BRACKET
6 x 20 (2)
[2]
ECM
