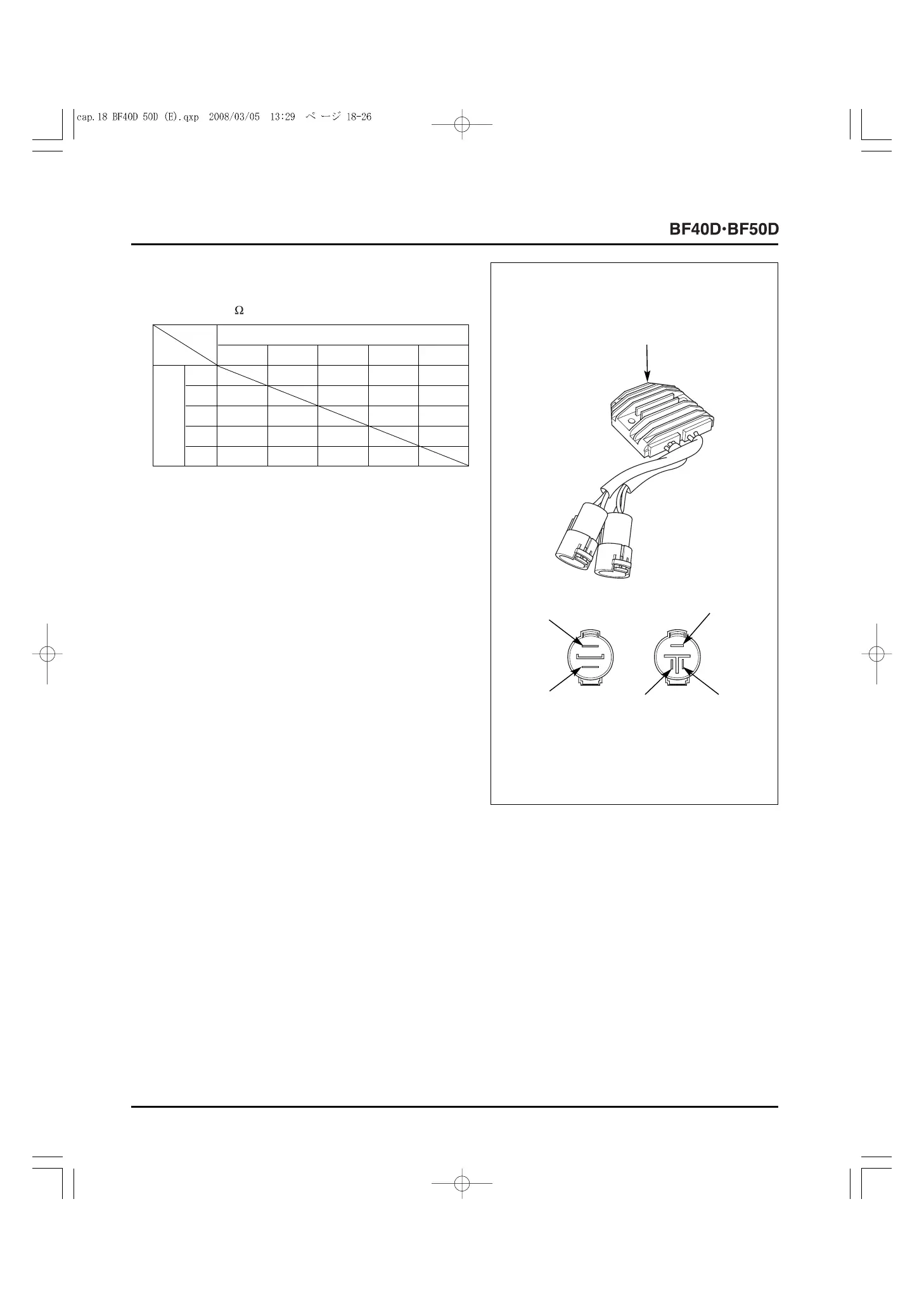

• REGULATOR/RECTIFIER
1) Measure the resistance between the terminals listed below.
[5] Resistance ( )
2) If the measurement is outside the specification, replace the
regulator/rectifier.
[1]
REGULATOR/RECTIFIER
[7] Tester (+) side
W [3] No.1 [4] No.2 [2] No.3 Bl
W 10k - 100k 10k - 100k 10k - 100k 50k - 500k
[3] No.1 5 - 5k 10k - 100k 10k - 100k 50k - 500k
[4] No.2 5 - 5k 10k - 100k 10k - 100k 50k - 500k
[2] No.3 5 - 5k 10k - 100k 10k - 100k 50k - 500k
Bl 500 - 10k 500 - 10k 500 - 10k 500 - 10k
[6] Tester (
-
) side
[3]
No.1
[4]
No.2
[2]
No.3
W
Bl
