7-28
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

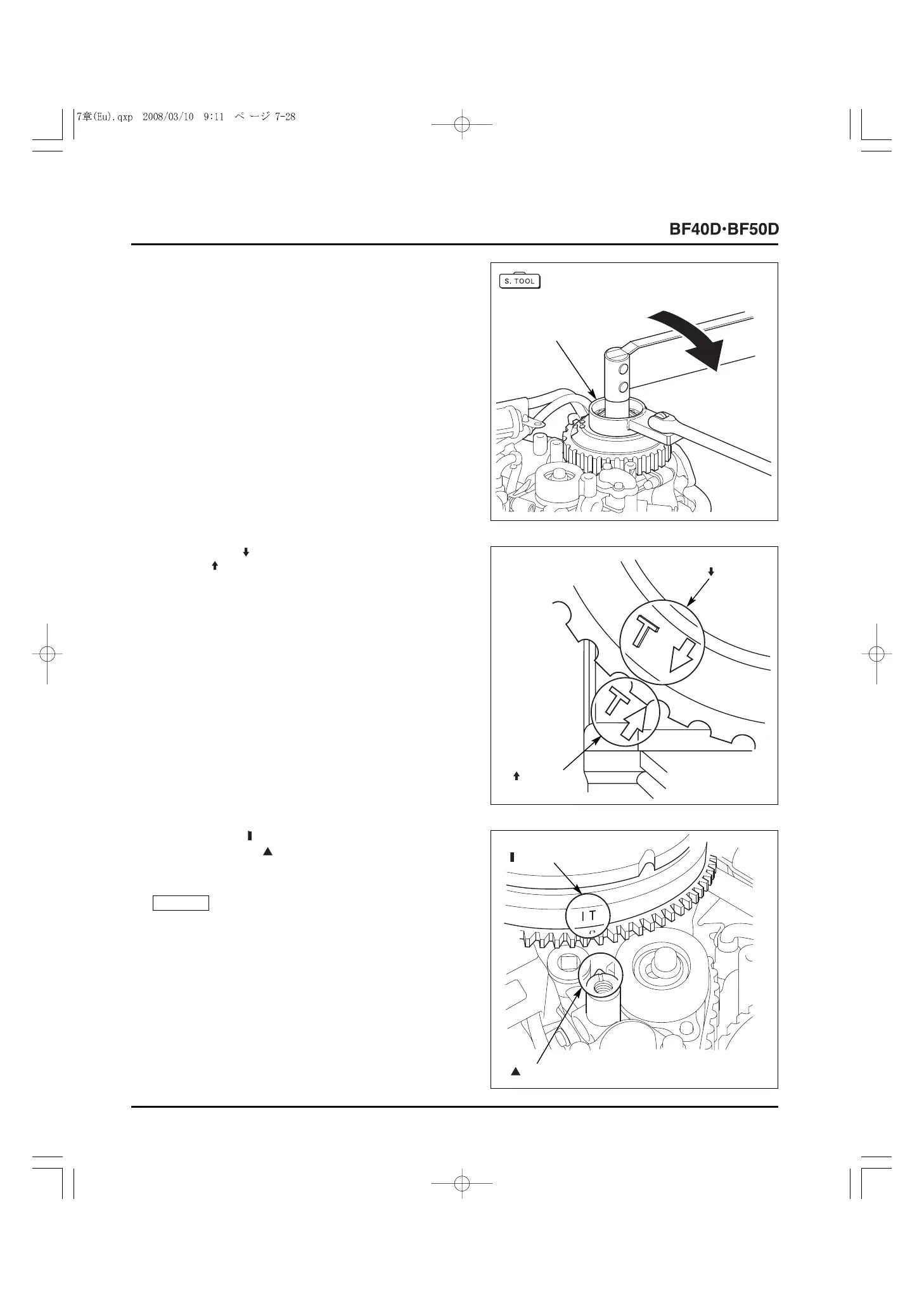

11) Tighten the 10 x 32 mm flange bolt to the specified torque
using the special tool as shown.
TOOL:
56 mm lock nut wrench 07LPA-ZV30200
TORQUE: 57 N
.
m (5.8 kgf
.
m, 42 lbf
.
ft)
13) Check that the " T" mark on the alternator rotor is in
alignment with the " " mark on the cylinder block.
If the marks are out of alignment, turn the alternator rotor
counterclockwise to align the marks.
Be sure to turn the alternator rotor in the direction shown
with the arrow. Do not turn in the opposite direction.
NOTICE
12) Check that the "T " mark on the pulser rotor is in alignment
with the "T " mark on the cylinder head.
If the marks are out of alignment, set the special tool on the
pulser rotor and turn the pulser rotor counterclockwise to
align the marks.
TOOL:
56 mm lock nut wrench 07LPA-ZV30200
[2]
"T " MARK
[1]
"T " MARK
[1]
" T" MARK
[2]
" " MARK
[1]
56 mm LOCK NUT
WRENCH
07LPA-ZV30200
To Next Page
