8-2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

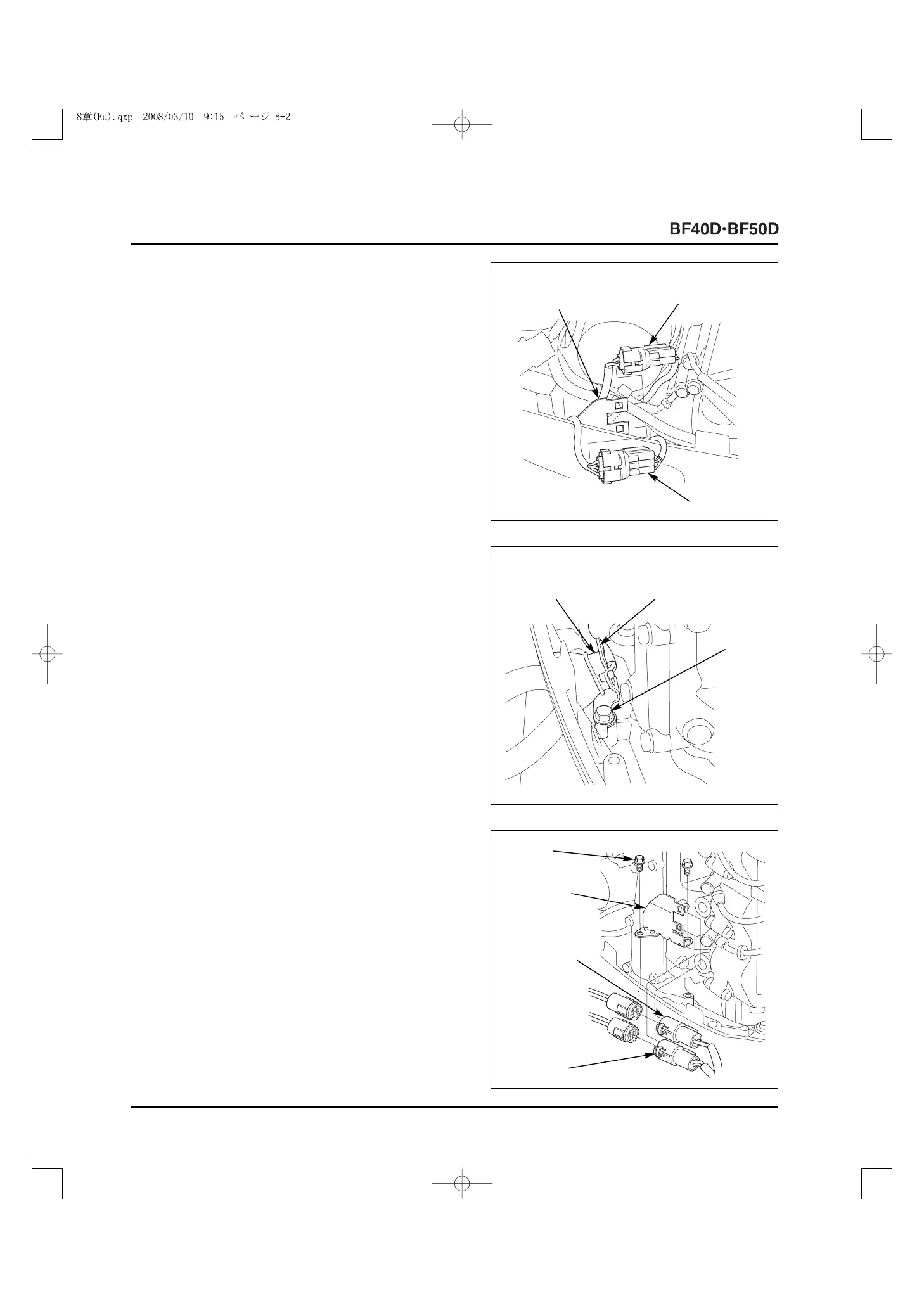

1. WATER JACKET COVER/
THERMOSTAT
a. REMOVAL
Remove the following parts.
- Engine cover (P. 4-2)
- Alternator cover (P. 7-2)
1) Remove the power tilt relay 2P connector and the power tilt
switch 3P connector from the harness clip bracket A [Power
trim/tilt type only].
3) Disconnect the regulator/rectifier 2P connector and the
regulator/rectifier 3P connector.
Remove the regulator/rectifier 2P connector and the
regulator/rectifier 3P connector from the connector bracket
B.
4) Remove the two 6 x 12 mm flange bolts and remove the
connector bracket B.
2) Remove the 6 x 12 mm flange bolt, and remove the power
tilt switch and the power tilt switch stay as a set [Power
trim/tilt type only].
[1]
HARNESS CLIP
BRACKET A
[2]
POWER TILT
RELAY 2P
CONNECTOR
[3]
POWER TILT
SWITCH 3P
CONNECTOR
[2]
POWER TILT
SWITCH STAY
[1]
POWER TILT SWITCH
6 x 12
[2]
REGULATOR/
RECTIFIER 2P
CONNECTOR
[3]
REGULATOR/
RECTIFIER 3P
CONNECTOR
6 x 12 (2)
[1]
CONNECTOR
BRACKET B
