6) Remove the cylinder head assembly from the cylinder
block.
7) Remove the cylinder head gasket and the two 6 x 10 mm
dowel pins from the cylinder block.
Replace the cylinder head gasket with a new one on
reassembly.
8) Get a commercially available 3 mm screw [pitch: 0.5 mm
(0.02 in)] on hand.
Screw the 3 mm screw into the oil path orifice and remove
the oil path orifice.
Replace the O-ring with a new one on reassembly.

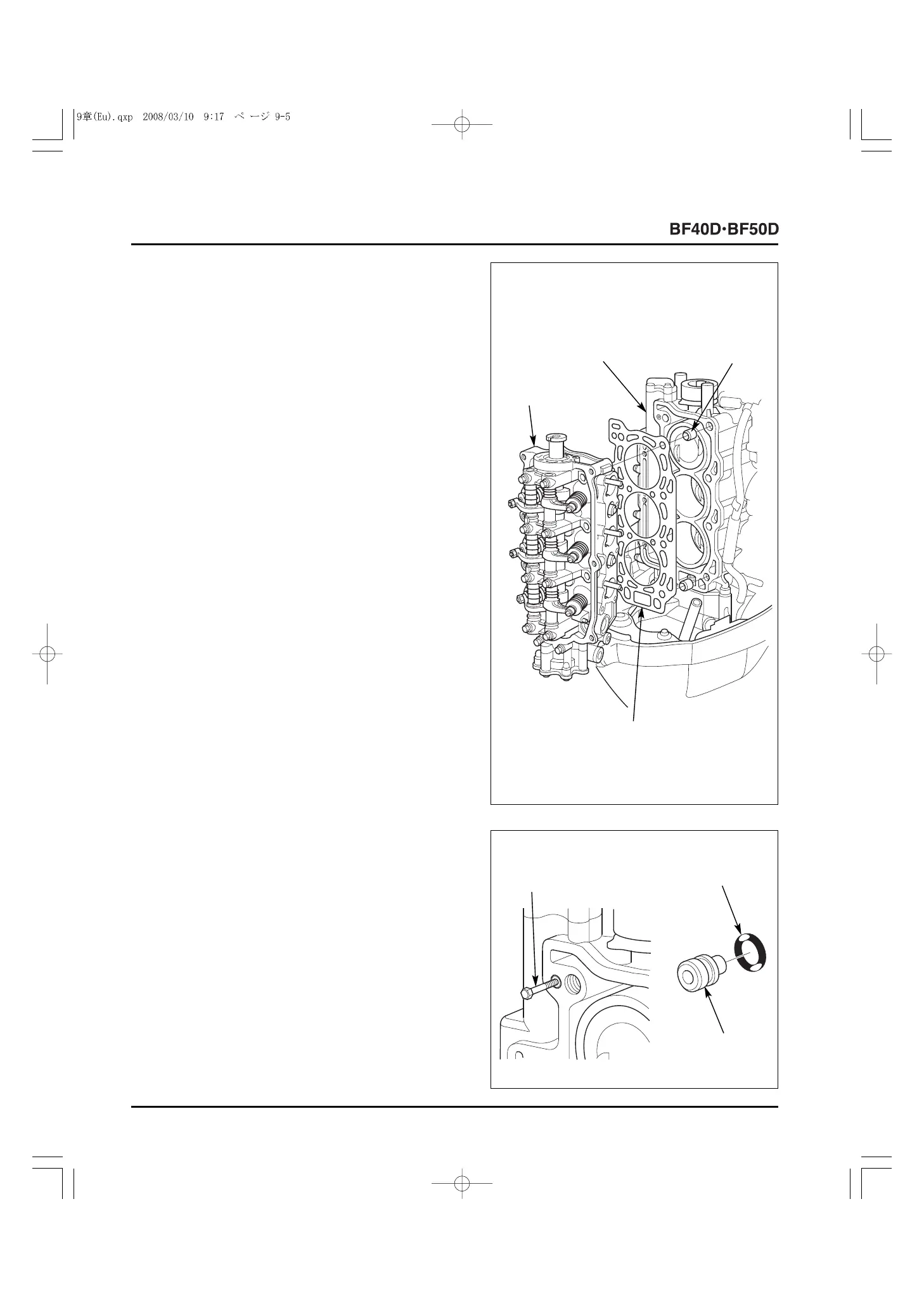

[1]
CYLINDER HEAD
ASSEMBLY
[2]
CYLINDER
BLOCK
[4]
CYLINDER HEAD
GASKET
[3]
6 x 10 mm
DOWEL PIN (2)
[3]
OIL PATH
ORIFICE
[2]
4.8 x 1.9 mm
O-RING
[1]
3 mm screw
[pitch: 0.5 mm (0.02 in)]
(Commercially available)
