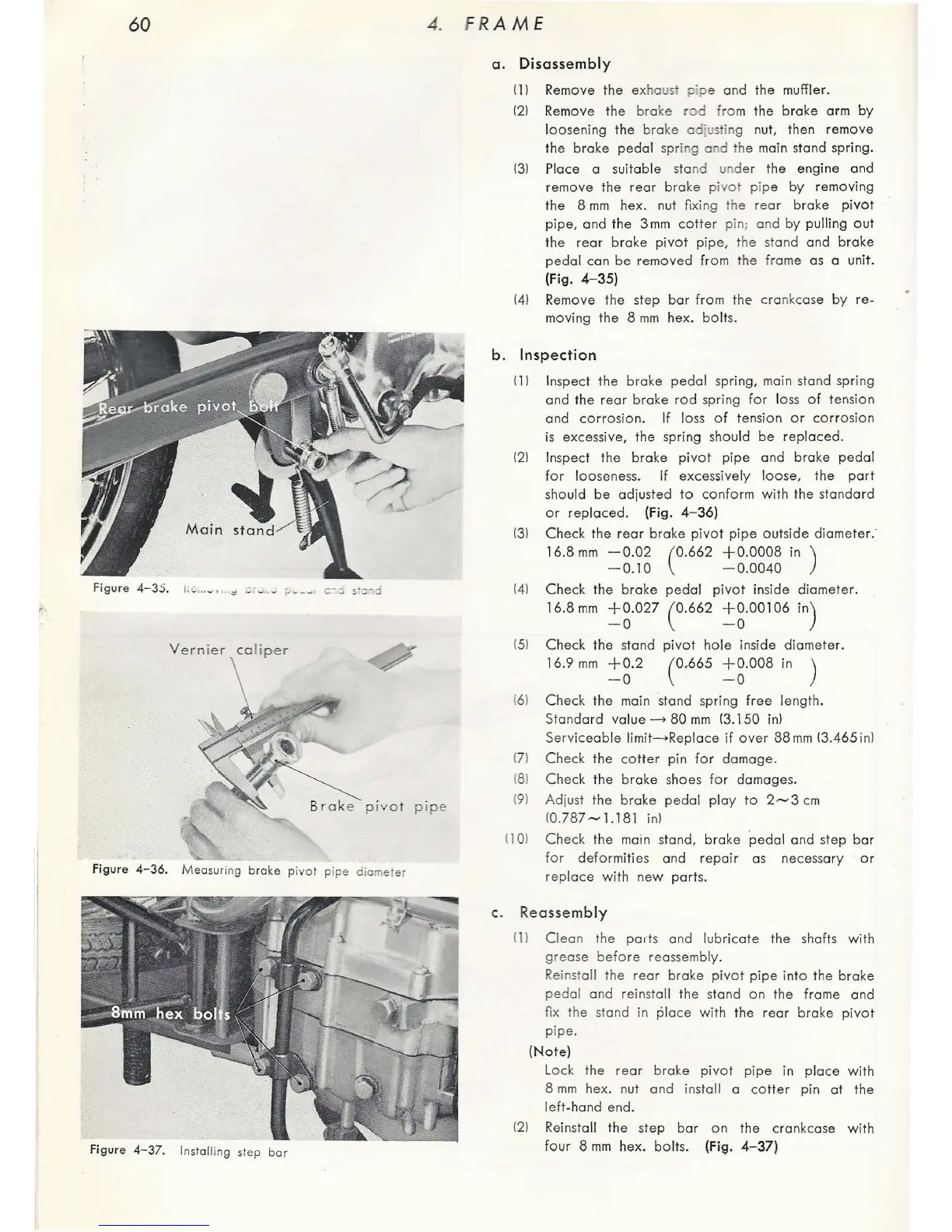

Honda C65 - Rear Brake Disassembly; Rear Brake Inspection; Rear Brake Reassembly; Measuring Brake Pivot Pipe Diameter

60
Ve r nier ca l iper
Figure 4- 36 . M easuring brake p ivot p ipe diameter
Figur e 4- 37. I ns talling st ep bar
4. FRAME
pipe
o. Disassembly
Ill Remove the exhaust pi pe and the muffler.
(2) Remove the bra ke r od fro m the brake arm by
loosening the bra ke ad justing nut, then remo ve
the brake pedal spring and the ma in stand spring.
131 Place a suitable stand und er the engine and
remove the rear bra ke p ivot pi pe by removing
the 8 mm hex . nut fixing the re ar brake pivo t
pipe, and the 3 mm cot ter pin ; and by pulling out
the rear brake pivot pipe , th e stand and brake
pedal can be removed from the frame as a unit .
(Fig.
4-35)
141 Remove the step bar fro m the crankcase by re-
m oving the 8 mm he x. bolts.
b. Inspection
Ill Inspect the brake pedal spring, main stand spr in g
and the r ear brake rod spring for loss of tensi on
and corrosion. If loss of te nsion or co rrosi on
is excessive, the spring shou ld be rep lac ed.
1 21 Inspect the brake pivot pipe and brake peda l
for looseness. If excessively loose , the part
should be adjusted to conform wi th the standard
or rep l aced. (Fig. 4-36)
131 Check the r ea r brake pi vot pipe outside di ameter. :
16.8 mm -0 .02 (0 .662 + 0.0008 in )
-0.1 0 - 0. 004 0
141 Check the b ra ke p ed al pivot inside diamete r.
16.8 mm + 0.027 (0.66 2 + 0.001 06 in)
- 0 -0
151 Check the stand pi vot hole inside di am ete r.
16.9 mm + 0.2 ( 0.665 + 0.008 in )
-0 - 0
161 Check th e main stand spring fre e length.
Stan
dard value--> 80 mm 13.150 in )
Se r vice abl e limit-->Replace if over 88 mm 13.465 inl
(7) Check the co tter pin fo r damage .
181 Ch eck the b rake shoes for damages.
191 Adjust the b ra ke pedal pla y to 2-3 em
10.787 -1.181 in)
1101 Check the main stand, brake ·pe dal and st ep bar
fo r deform iti es and r epa ir as necessary · or
replace wi th new parts.
c. Reassembly
Ill Clean the pads and lubric ate the sh aft s wit h
grease befo re reassembly.
Rei nst all the rear brake pi vot pipe int o the brak e
pedal and reinstall the s ta nd on the frame and
flx the s ta nd in pla ce with the re ar brake piv ot
pipe.
(Not e)
L
ock the r ear b ra ke pi vot pi pe in pla ce wit h
8
mm hex. nut and install a co tter p in at the
l ef t-hand end.
121 Reinstall th e step ba r on th e crankcase w ith
four 8 mm hex. bo l ts . (Fi9. 4-37)
