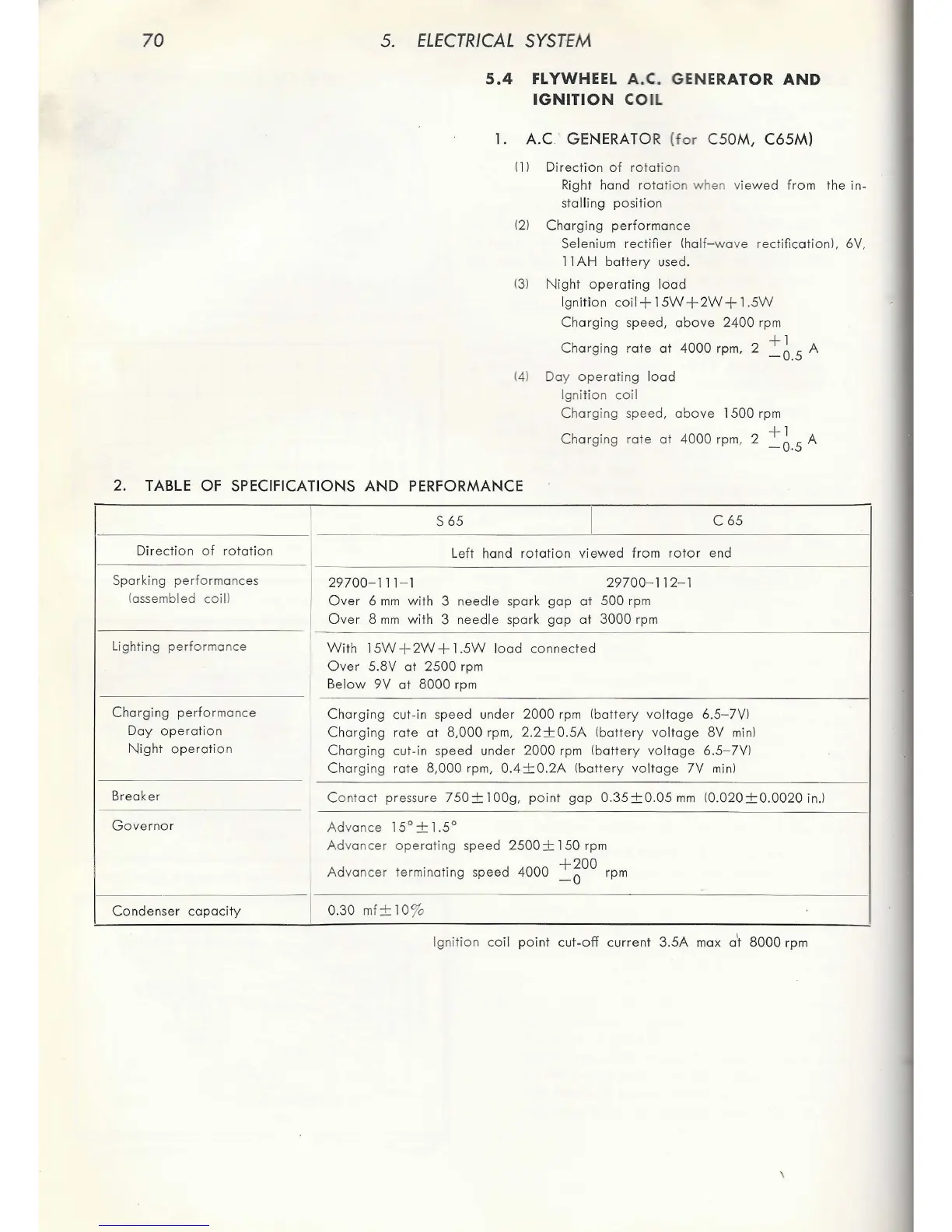

70 5. ELECTRICAL SYSTEM
5.4 FLYWHEEL A.C. GENERATOR AND
IGNITION COIL
1. A.C GENERATOR ( for C50M, C65M )
(1) Direction of rota tio n
Right hand
rotat ion when vi ewed from the in-
stal ling pos i tio n
(2)
Char ging performance
Selenium rect ifier (hal f-wav e rectification), 6V .
11 AH battery used.
(3)
Night operat ing load
Igni ti on coil+15W+2W+1.5W
Charging speed, above 2400 rpm
Charging rate at 4000 rpm, 2 +
1
A
-0.5
(4) Day operating load
Ignition coi l
Ch argi ng speed, abo ve 1 500 rpm
Chargi ng rate at 4000 rpm, 2 ! 6.
5
A
2. TABLE OF SPEC IF ICA TIO NS AN D PERF O R MAN CE
I
s 65
I
c 65
Directi on of rot ation
L ef t hand ro t ation viewed from rotor end
Sp arking performances
29700-11 1- 1 29700 - 112-1
(assembled coill
Over
6 mm with 3 needle spark gap at
500 rpm
Ove r 8 mm with
3
needle spark gap at
3000 rpm
Lighting
perfor mance
With
15W+2W+1 . 5W
l oad connected
Over 5.8V at 2500 rpm
Below 9V at 8000 rpm
Charging perf ormance
Charging
cut-in speed under 2000 rpm (battery voltage 6. 5-7Vl
Day opera t ion
Charging
rate at 8,000 rpm, 2. 2±0 . 5A (battery voltage 8V min)
Nig ht operatio n
Cha r ging cut-in speed under 2000 rpm (battery vo lt age 6.5 - 7Vl
Charging
rate 8, 000 rpm, 0.4 ± 0.2A (bat tery vol t age 7V mi n)
Br eaker
Contact pressure 7 50± 1 OOg, poin t gap 0.35 ±0.05 mm !0. 020 ±0 . 0020 i n.)
- -
Gove r nor
Advanc e 15° ± 1.5°
Advancer ope rating speed 2500 ± 150 rpm
Ad v ancer termin ating speed 4000
+200
rpm
- 0
Condenser capacity 0. 30 mf± 10%
Ignition co il po int cut - off current 3. 5A max a
1
t 8000 rpm
