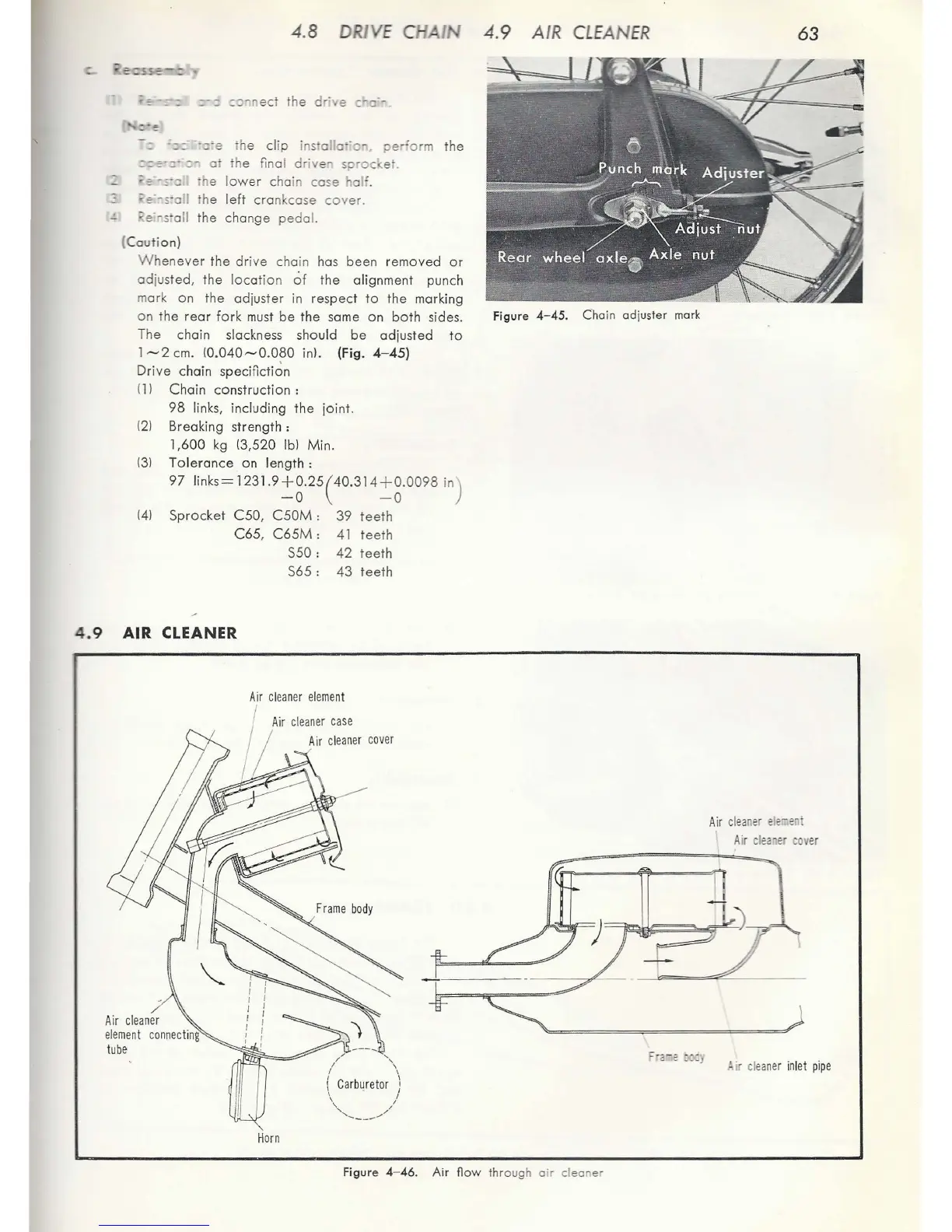

4.8 DRJVE C
::::mnect the dr' e c-:::·-.
- ·:::- ·:::·e
the clip ins a ll a· ·c - perform the
:::::=·:::··:;- at the final dr iv en scroc et.
~~ --~ me low er chain case half.
;:e·-s-all the l eft crankca se cover.
::>e ·ns'all the change peda l.
( Caution)
Wh enever the drive chain has been rem oved or
adjusted, the locat ion of the alignment punch
mark on the adjuster in respect to the marking
on the
rear fork must be the same on both sides.
The chain slackness should be adjusted to
1 ~2 em. (0.040~0.080 in). (Fig. 4-45)
Drive chain speci fl cti ~ n
(J) Chain construction:
98 links, including the j oint .
(
2) Breaking strength :
1 ,600 kg (3,520 lbl Min .
(3)
Tolerance on length:
97 links= 123 1.9+0 . 25 (40.3 1 4+0 . 0098 in)
-0 -0
(4) Sprocket C50 , C50M : 39 teeth
C65 , C65M : 41 teeth
550 : 42 tee th
5
65 : 43 teeth
4.9 AIR CLEANER
/
I I
( Carburetor )
I I
I '
' '
' .......... ___ ,.;
Horn
4. 9 AIR CLE ANER
Figure 4- 45. Chain ad juster mark
Figure 4- 46. A ir flow th rough a ir cl ea ner
63
Air cleaner ele":ent
I
Air cl eaner in le t pi pe
