PERIODICAL ADJ U ST
T
91
12 ~~- - s ·-e right crankcase c ove r, pu ll out the
s.:: ·Qc n and wash in gasoline . (Fig. 6.20)
(Co i on )
Ins
all the oil fiter screen with the narrow
opere d side toward the inside and the fin
on the filter sc re en toward the bo tt om.
9. AIR CLEANER CLEANING
An air cleaner clogged with dust rest ricts the free
passage of inlet air and result in power loss or drop
in acceleration, therefore , to assure proper perform-
once, periodic cleaning of the air cleaner should be
performed.
l. Removal (C50, C50M, C65, C65M)
a. Lo osen the cop nut on t op of the front cover
and remove the air c leaner cover, then loose n
nut
on the insi de and detach the air cleaner .
b. For
models S50 and S65, remo ve the air clea ner
cove r on the center right side, loose n th e
screw and remove the ai r clea ner . (Fig. 6-21 )
2.
Cleaning
c. Top the cleaner ligh tly to remove the dust and
then blow dry compre ss ed air from the inside
or use a brush. (Fig. 6-22)
(Caution)
I 11 The air cleaner is mode of paper and if torn
or damaged, replace with a new element.
121 Oil or water on the cleaner element will
render it ineffective and will cause dust to
enter the engine cy linder, resulting in in-
creased cylinder wear.
10. CLUTCH ADJUSTMENT
(550, 565)
The function of the clutch is to tran smit or dis-
engage the rotary power produced by the engine
to the transmission. If the gear is engaged without
the clutch be i ng completely disengaged, the vehicle
will start moving wi th a jolt or the engine will stall
out. On the othe r hand, if the clutch is slipping,
the speed of the motorc yc le will log in relation to
the engine speed.
1. Lever play (550, 565)
There should be 1 to 1.5cm 10.4 -0 .6 inl of free
ploy in the clu tc h lever be fo re the clutch starts
to
disengage. (Fig. 6- 23)

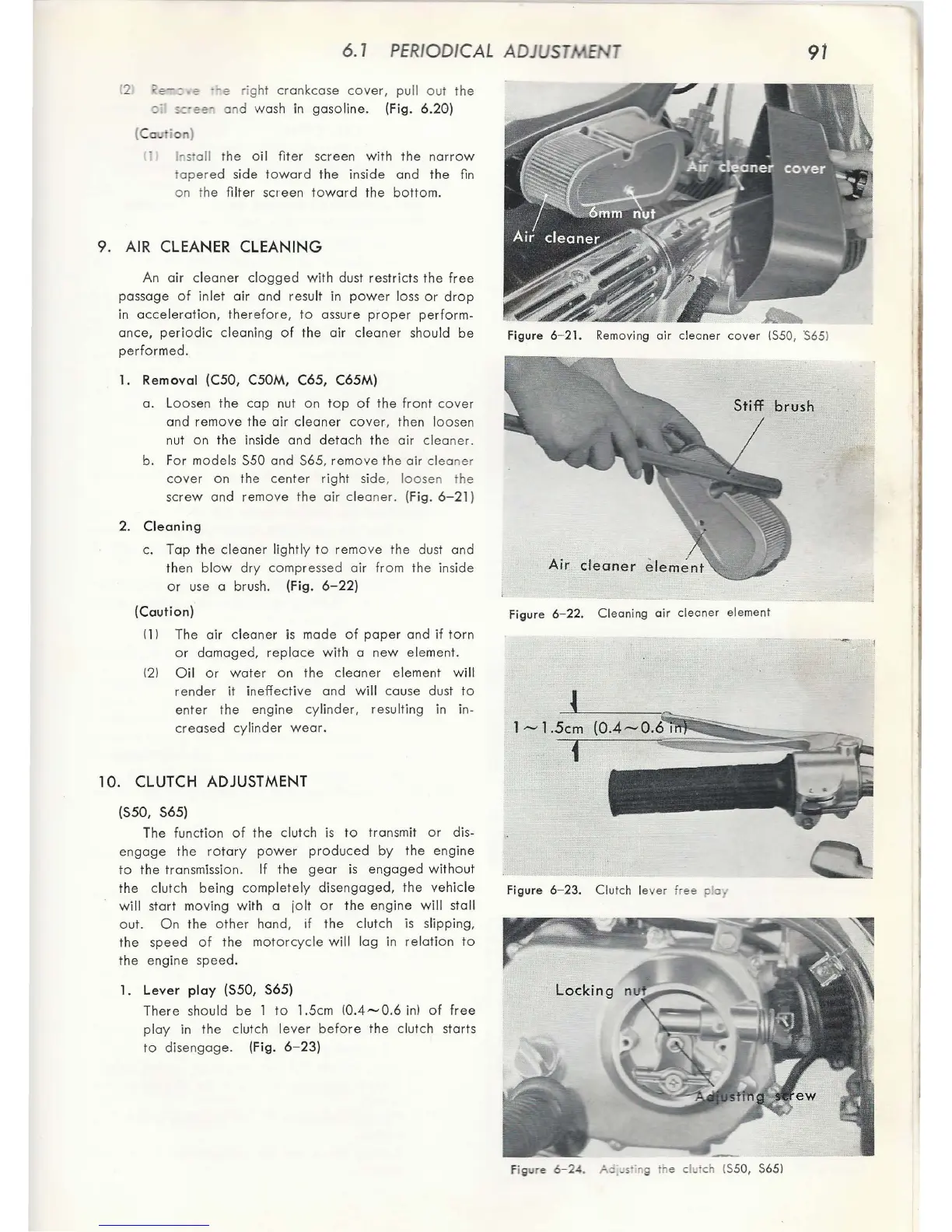

Figure 6- 21. Removing air cleaner cover 155 0, 'S65l
Stiff brush
Air cleaner
Figure 6- 22. Cleaning air cleaner element
Figure 6- 23.
Clutch lever free plot
Fi gu re 6-24. Ao .s· ing I e cl ch 15 50, S65l
