Honda C65 - Muffler and Exhaust Pipe; Frame Body and Electrical Equipment Installation Diagram; Muffler Cross Section and Gas Flow Diagram (C50, C50 M, C65, C65 M)

ear winke r
FRA ME BOD Y 4.11 EXHA S
tP= A D M FF ER 65
Winker
Horn

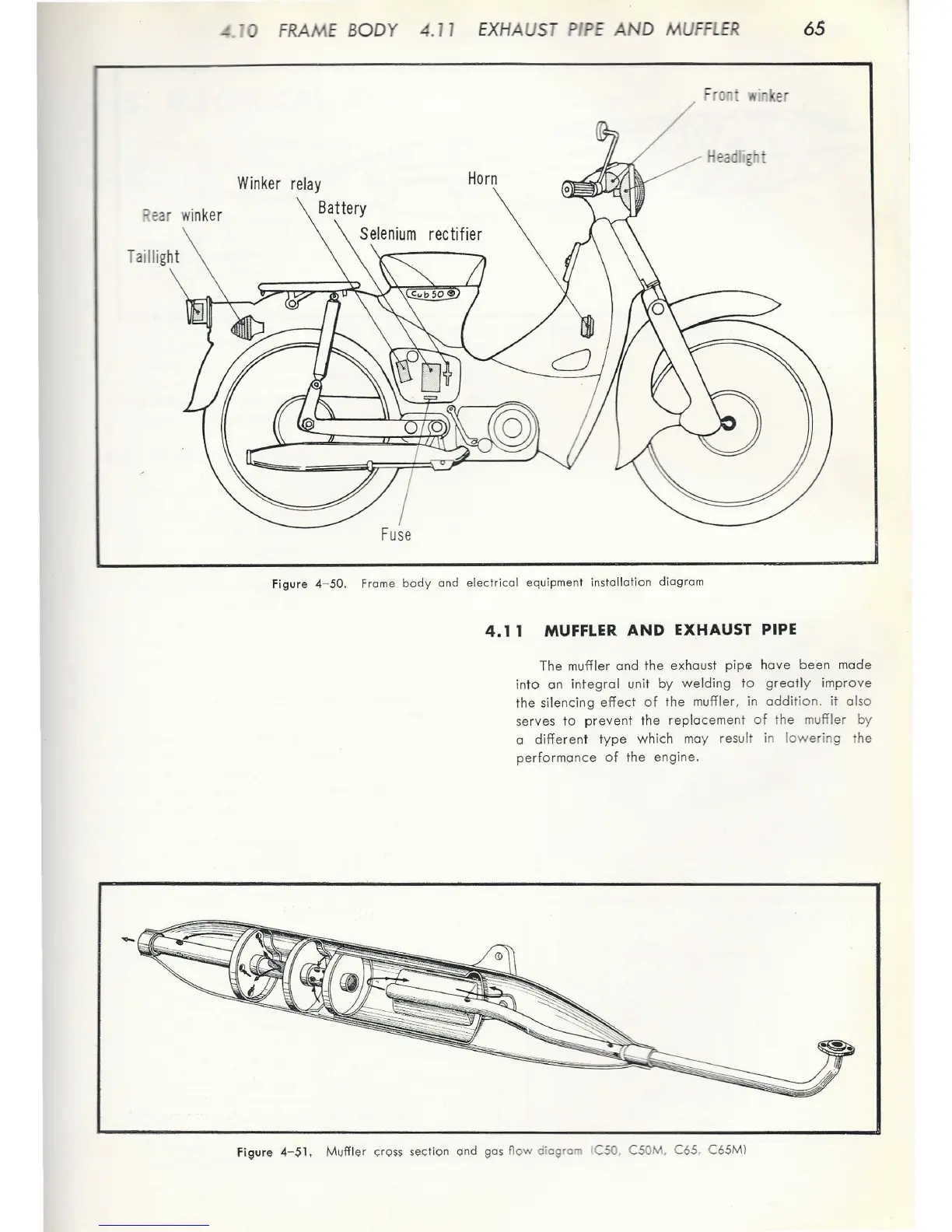

Figure 4- 50. Frome body and electrical equipment installation diagram
4.11 MUFFLER AND EXHAUST PIPE
T he muffler and the exhaust p ip ~ hove been mode
into on in teg r al unit by we ldi ng to great ly i mprove
the silenci ng effect of the muffler, in add ition . it al so
se rves to preven t the rep lacement o f the muffl er by
a di
fferent ty pe which may resu lt in low ering the
performance of the en gine.
Fi9ure 4- 51. Muffler cross se ction ond gas flow diagram IC50, C50M, C65, C65MI
