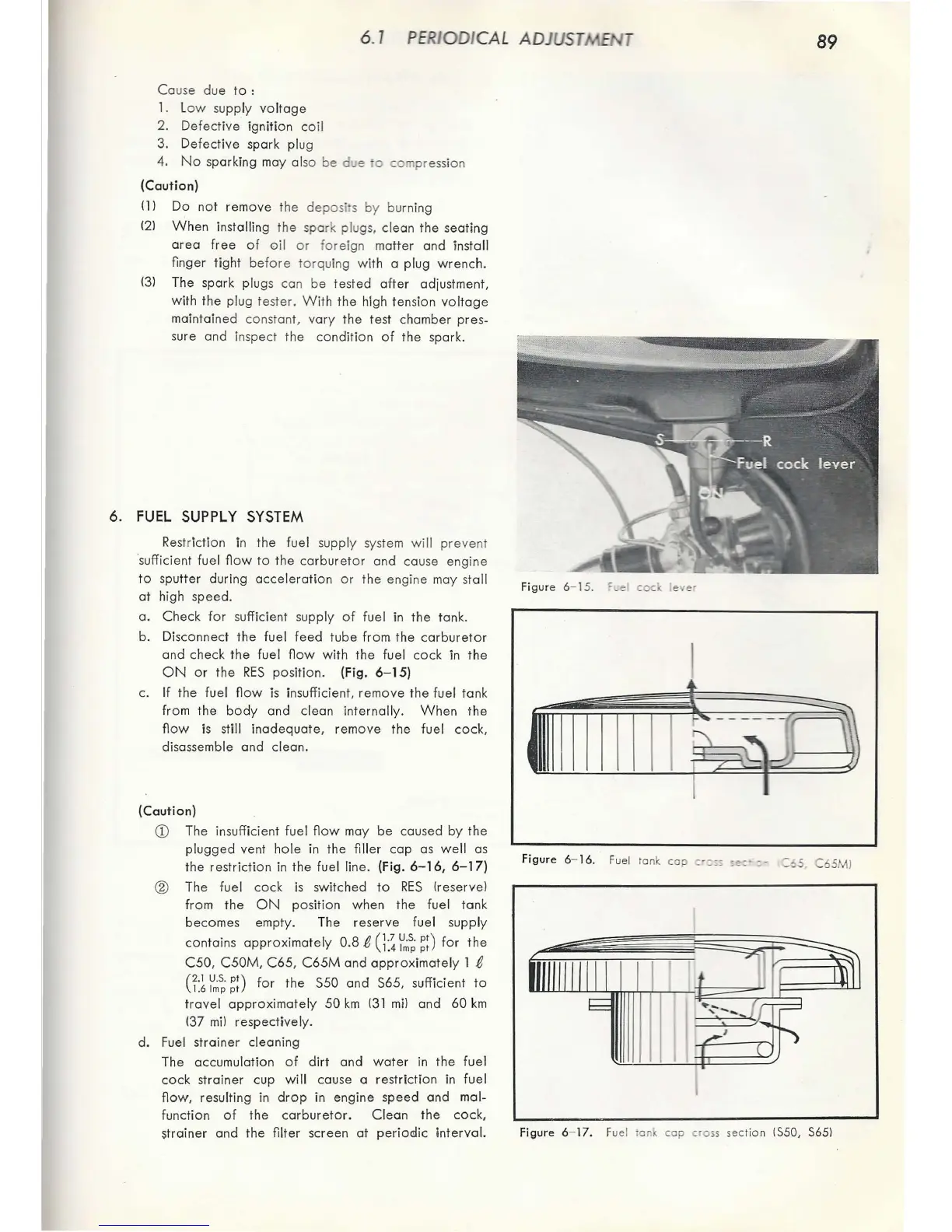

Honda C65 - Fuel Supply System; Fuel Strainer Cleaning; Fuel Cock Lever View; Fuel Tank Cap Cross Section

6. 7 PE JODI CAL ADJ ST ,
89
Ca u se due to :
1. L ow sup ply voltage
2. Defective ignition co il
3. Defective spark plug
4. No sp arking may al so be due to com pression
(Caution)
(1) Do not remove the deposi is by burning
(2)
When installing the spa rk plugs, clean the se at ing
area free of oil or for eign matter and install
finger t
ight be fo re torquing wi th a plug wre n ch .
(3) The spark plugs con
be tested after adjustment,
with the plug tester. With the high tension vo ltage
maintained constant, vary the test chamber pres-
su re and inspect the condition of the spark.
6. FUEL SUPPLY SYSTEM
Rest r iction in the fuel supply system will preve nt
·su ff icient fuel fl ow to the carbu r eto r and cause engine
to
sp utter during ac ce lerati on or the engine may stall
at high speed.
a. Check
for sufficient supp ly of fuel in the tank.
b. Disconnect the
fuel feed tu be from the c arburetor
and check the fuel flow wi th the fuel cock in the
ON or the RE S posi tio n. (Fig. 6-15)
c. If the fuel flow is insuffici en t, remove the f uel tank
from the body and clean internally. Wh en the
flow is still inadequate, r emove the fuel cock ,
disassemble
and clean.
(Caution)
CD Th e insufficient fu el flow may be caused by th e
plugged vent ho le in the filler ca p as we ll as
the
re s triction in the fuel line. (Fig. 6-16, 6-17)
® Th e fuel cock is sw it ched to RE S (r eserve)
from the ON posi tion when the fuel tank
becomes empty. The reserve fuel supply
contains
appr ox imat ely 0 8 g (1.
7
u. s. pt ) for t he
· 1.4 Imp pt
C 50, C50M, C65, C6 5M and appr ox im at ely 1 &
(
2
·
1
u. s. p t) for the S50 and S65 suffici en t to
1.6 I mp pt '
tra vel approximately 50 km 131 m il and 60 km
137 m il re sp ectivel y.
d.
Fue l s trainer cleaning
Th e ac cumulation of dirt and water in the fuel
coc k s trainer cup will cause a re s tri c ti on in fu el
flow, resulting in drop in engine sp eed and mol-
function
of the carburetor. C lean the cock,
s tra iner and the fi lter screen at perio!ilic Interv al.
Figure 6- 16. Fu el tonk cop c-:::.;
65MJ
Figure 6- 17. Fuel tonk cop cross sectio n (550, 565)
