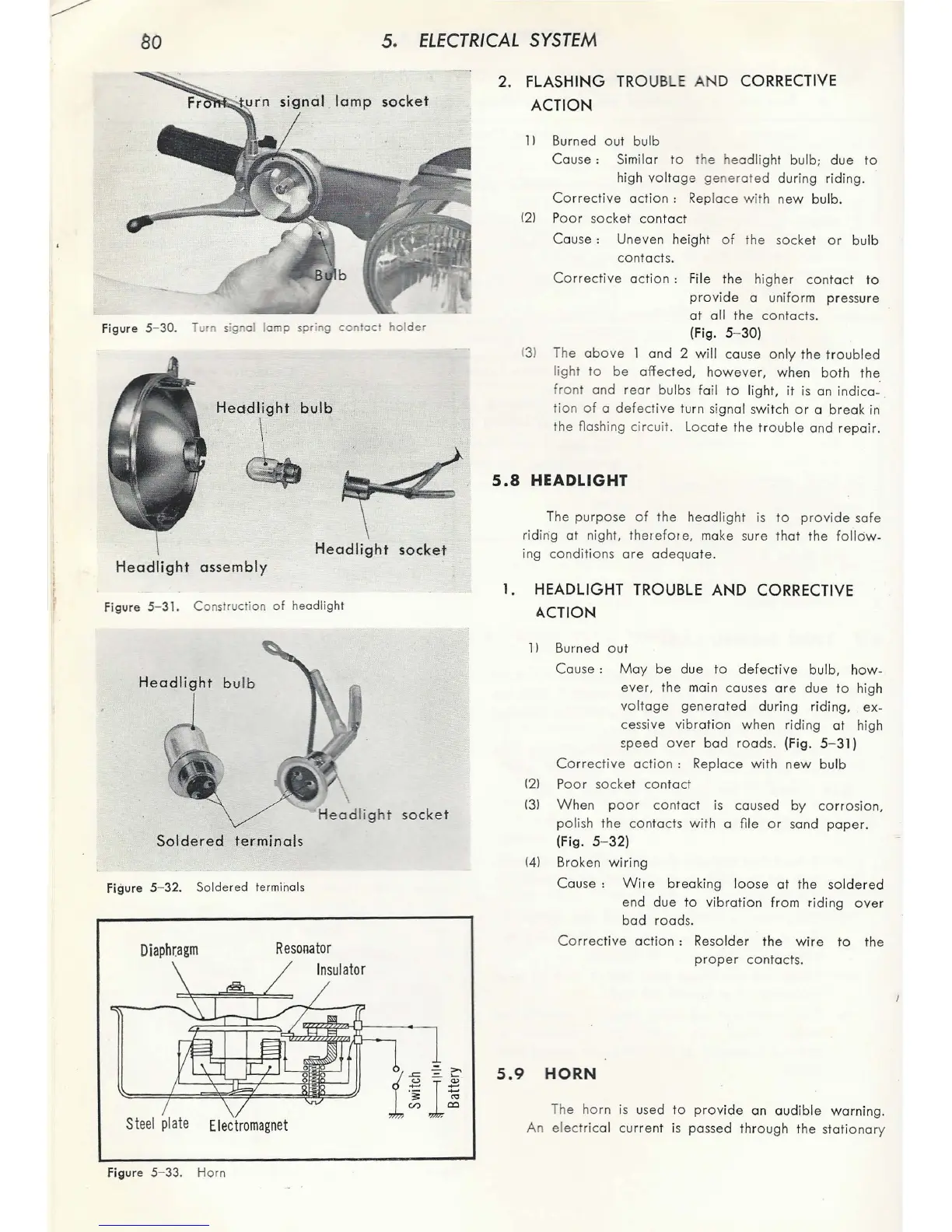

5. ELECTRICAL SYSTEM
Figure 5- 30. Turn signal lamp s pr i ng contact hol de r
Headl i ght bulb
\
~
Headlight socket
Headlight assembly
2. FLASHI NG TROUB LE AN D CORRECTIVE
ACTION
11 Burned out bulb
Cause : Similar to the h ead light bulb; due to
high voltage generated dur ing rid ing.
Cor rect ive action : Replace wi th new bulb.
1 21 P oor socket contact
Couse : Uneven height of the socket or bulb
cont acts.
Corrective action : Fi le the hi gher contact to
provide a uniform pressure
at all the contacts.
(Fig. 5- 30)
1 31 The above 1 and 2 will cause on ly the troubled
li ght to be affected, however, when both t he
front and rear bulbs fail to l ight, it is an i ndica- .
lion of a defect ive turn s ign al switch or a break in
the flashing circui t. L ocate the trouble and repa ir.
5.8 HEADLIGHT
The purpose of the headlight is to provide safe
riding at night, therefo re, make sure that the follow -
ing conditions are adequate .
1. HEADLIGHT TROUBLE AND CORRECTIVE
Figure 5 -31. Construction of headlight ACT ION
11 Burned out
Cause : May be due to defective bulb, how-
Headlight b ulb ever, the m ain causes are due to high
Soldered terminals
Figure 5- 32 . Soldered terminals
Diaphragm
Figure 5- 33. Horn
Resonator
I ns u lator
voltage gene ra ted dur ing r id ing, ex-
cessive vibration when riding at high
speed over bad ro ads. (Fig. 5- 31)
Co r rective ac t ion : Replace with new bulb
121 Poor socket contac t
13 1 When poor co n tact is caused by corrosion,
polish the contacts with a file or sand paper .
(Fig.
5- 32)
141 Broken wi r ing
Cause : Wi re breaking loo se at the solde red
end due to vibration fr om riding over
bad roads .
Correc t ive action : Re solder the wire to the
pr oper contacts.
5.9 HORN
The horn is used to pr ovide an aud ible warn ing.
An el ect ric al current is passed through the stationar y
