Honda C65 - Rear Fork Disassembly; Rear Fork Inspection; Play in the Break Pedal; Measuring Pivot Rubber Bushing

o e)
er connecting the rear brake, adjust the brake
pedal pl oy to 2-3cm 10.787-1.181 inl.
(Fig.
4- 39)

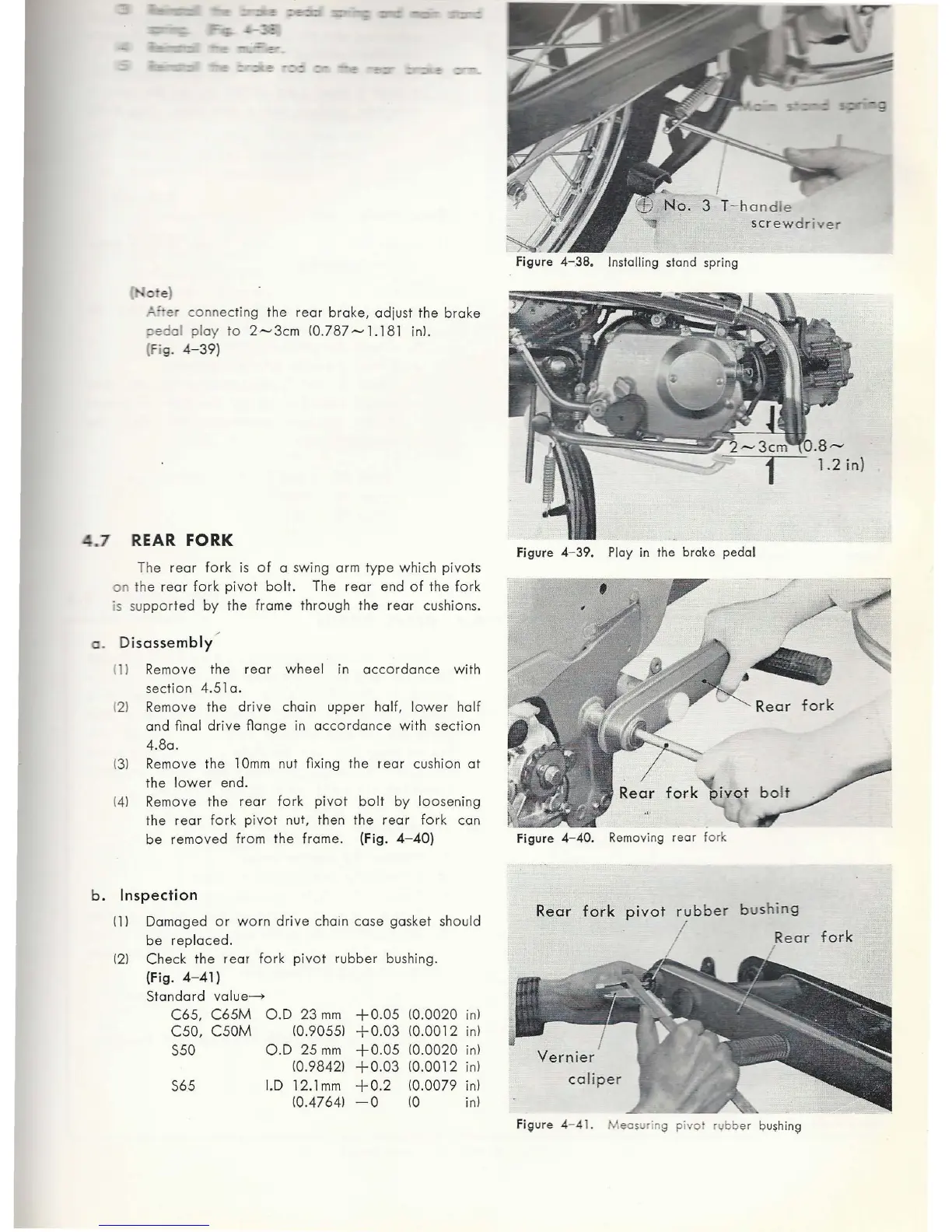

.7 REAR FORK
The rear fork is of a sw ing arm type whi ch pivots
on the rear fork pivot bolt. The rear end of the fork
is
su pported by the frame through the re ar cushions.
a. Disassembly"'
11 ) Remove th e re ar wheel in accordance wit h
sect
ion 4.51a.
1 2) Remove the dr ive chain u pper hal f, l owe r ha lf
a
nd final drive flange in accordance with sec tion
4.8a.
(
3) Rem ove th e 1 Omm nut fixi ng the rear cushion at
the l ower end.
14 1 Rem ove t he rear fo rk pi vot bo lt by looseni ng
the rear f ork pi vot nu t, t hen the r ea r f ork con
be removed from the frame. (Fig.
4-40)
b. Inspection
{1) Dama ged or worn drive cha in c as e gasket should
be replaced.
12) Check the rear fo rk pivot rubber bus hi ng.
(Fig.
4- 41)
Standard va lu e -+
C65, C65M O. D 23 mm
C5 0, C50M 10. 90551
S5 0 O.D 25 mm
S 65
(0. 9842 )
I.D 12. 1mm
10.4764)
+0 .05
10.0020
+ 0.03
10.0012
+ 0.05 10.0020
+ 0.03
10 .0012
+0 .2
10 .0079
- 0
(0
i n)
in)
in)
in)
in)
in)
3
T-ha nd le
scre wdr iver
Figure 4- .38, Installing stand spring
Figure 4- 39.
Ploy in the broke pedal
Rear fork
Figure 4- 40. Removing rear fork
Rear fork pivot rubb er bushing
Rear for k
I
Figure 4- 41 . Measuring pi vot rub b<;lr bu sh in9
