S3 Series UL Listing Document — P/N LS10005-051GF-E:D3 3/09/2016 33
Relay Circuit, Open Collector and Other Similar Outputs Installation Wiring
2.13 Relay Circuit, Open Collector and Other Similar Outputs

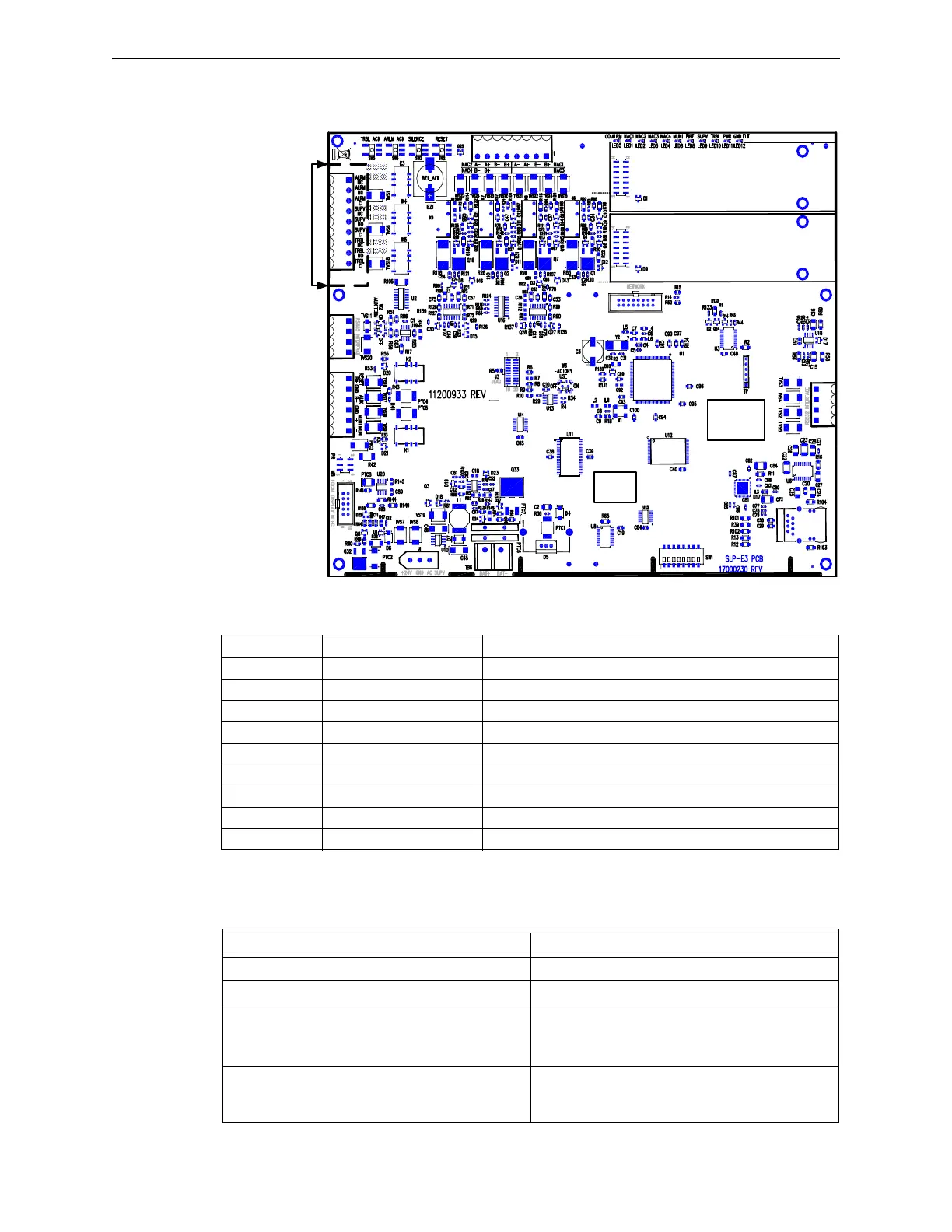

Figure 2.13.1 illustrates the Relay, Open Collector and other similar outputs on the SLP main board panel.
Figure 2.13.1 Relay, Open Collector and Other Outputs
Table 2.13.1 lists the relay circuit outputs for the SLP main board.
2.13.1 Relay Circuit Specifications
Table 2.13.1.1 lists the relay circuit specifications.
SLP-E3
SLC-PM/SLC95-PM #2
SLC-PM/SLC95-PM #1
TB4
TB3
TB2
TB1
TB5
BAR CODE
LABEL
PRODUCT
SERIAL NUMBER
PRODUCT
DATE CODE
LABEL
ETHERNET
J2
W1
J7
RELAY, OPEN
COLLECTOR,
AND OTHER
SIMILAR
OUTPUTS
1
B- B+
J1
J1
J4
J5
J6
Designation Description Comments
TB4-1 ALRM NC Alarm relay contact normally CLOSED N/C
TB4-2 ALRM NO Alarm relay contact normally OPEN N/O
TB4-3 ALRM C Alarm relay contact common
TB4-4 SUPV NC Supervisory relay contact normally CLOSED N/C
TB4-5 SUPV NO Supervisory relay contact normally OPEN N/O
TB4-6 SUPV C Supervisory relay contact common
TB4-7 TRBL NC Trouble relay contact normally CLOSED N/C
TB4-8 TRBL NO Trouble relay contact normally OPEN N/C
TB4-9 TRBL C Trouble relay contact common
Table 2.13.1 SLP Relay Circuit Outputs-Installation Wiring Terminals
Requirements Relay Circuit Specifications
Circuit supervision: Not Supervised
Circuit Power Requirements: N/A
Designated as “Common,” “Zone,” or
“Programmable”:
The Alarm and Supervisory relays are either
Common or Programmable (depending on the
configuration settings). The Trouble Relay is
Common.
Loading in voltage, current, frequency, and for
relays, power factor (if power factor is not
specified, it will be assumed to be .35 inductive).
30 VDC, 2A (max.)
Table 2.13.1.1 Relay Circuit Specifications
