S3 Series UL Listing Document — P/N LS10005-051GF-E:D3 3/09/2016 13
SLP-E3 Main Circuit Installation Wiring Diagram Installation Wiring
2.2.2 SLP-E3 Rechargeable Battery Circuit Installation Wiring Diagram
Figure 2.2.2.1 shows the SLP-E3 rechargeable battery installation wiring diagram.

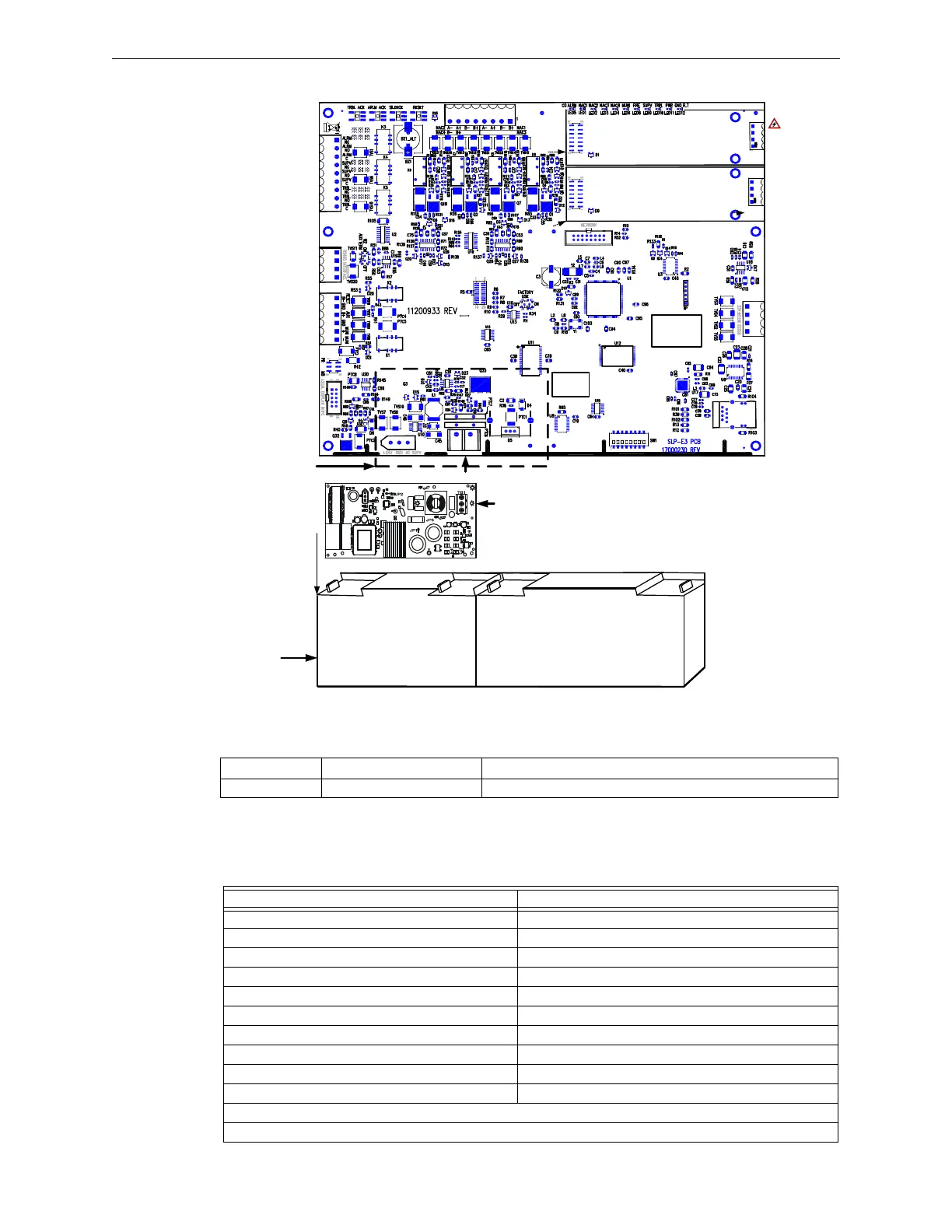

Figure 2.2.2.1 SLP-E3 Rechargeable Battery Installation Wiring Diagram
2.2.3 SLP-E3 Rechargeable Battery Installation Wiring Terminals
Table 2.2.3.1 lists the SLP-E3 rechargeable battery installation wiring terminals.
2.2.4 SLP-E3 Rechargeable Battery Circuit Specifications
The S3 Series (Small Addressable FACP) provides the SLP-E3 rechargeable battery circuit. Table 2.2.4.1 lists
the SLP-E3 rechargeable battery circuit specifications.
2.
RECHARGEABLE
BATTERY CIRCUIT
SUPERVISED
BATTERY BATTERY
SLP-E3
SLC-PM/SLC95-PM #2
SLC-PM/SLC95-PM #1
TB4
TB3
TB2
TB1
TB5
BAR CODE
LABEL
PRODUCT
SERIAL NUMBER
PRODUCT
DATE CODE
LABEL
ETHERNET
J2
W1
J7
J3
JTAG
TB1
TB1
W3
TB6
BAT+ BAT-
J1
J5
J6
J4
SW5 SW4
SW3 SW2
FLPS-7
MAIN CIRCUIT
SUPPLY
L1 GROUND L2
NOTE 1: INTERNAL
BATTERIES FROM
SLP-E3 TB6 (NON
POWER-LIMITED),
USE 12 AH
BATTERIES.
NOTE 2: EXTERNAL
BATTERIES FROM
SLP-E3 TB6 (NON
POWER-LIMITED),
USE 12 TO 55 AH
BATTERIES.
B- B+
WARNING!
INSTALLTHE
SLC-PM/
SLC95-PM
COMPONENT
SIDE UP!
J6 J1
J1
(SEE WARNING).
(SEE WARNING).
J1
Designation Description Comments
TB6 BAT+/BAT- Battery Connection
Table 2.2.3.1 SLP-E3 Rechargeable Battery Circuit Installation Wiring Terminals
Requirements SLP-E3 Specifications
Circuit Supervision Supervised for Short, Open, Ground Fault, Charger Fail
Nominal Voltage +24 VDC
Supervisory Current 0.100 amps
Alarm Current 0.180 amps
Suitable Battery Type Sealed Lead Acid
Battery Charging Current 1 A
Minimum Battery Capacity 7 A/H (minimum)
Maximum Battery Capacity 55 A/H
Maximum Standby Duration 4, 24, 60, 90 Hours (See Note 1)
Maximum Alarm Operation Following Standby 5, 15, 30, 60 minutes at Full Load (See Note 2)
Table 2.2.4.1 SLP-E3 Main Circuit Specifications
To Next Page
