38 S3 Series UL Listing Document — P/N LS10005-051GF-E:D3 3/09/2016
Installation Wiring Separation of Circuits
2.17 Separation of Circuits
2.17.1 S3 Series, B-Size Cabinet, Class 2 Power-Limited/Non Power-Limited
Wiring Requirements
UL Standard 864, (Control Units for Fire Protective Signaling Systems), requires that a minimum of 1/4 inch
separation be maintained between Class 2 power-limited circuits and non power-limited circuits. The control
unit is designed so the required separation between these circuits (Class 2 power-limited vs. non power-lim-
ited) is maintained at the field wiring terminals.
In order to fully comply with the intent of these requirements, however, the minimum 1/4 inch separation must
also be maintained between the field wiring conductors of Class 2 power-limited circuits and non power-lim-
ited circuits. This may be accomplished by routing the field wiring as shown in Figure 2.17.1.1 and
Figure 2.17.1.2.
Unless otherwise indicated on the unit, all field-wiring circuits are Class 2 power-limited except:
• AC power circuit
• Standby battery circuit
• Telephone line connections
• Master Box / Releasing
Figure 2.17.1.1 illustrates the S3 Series System, B-Size cabinet, Class 2 power-limited and non-power-limited
wiring extending from the SLP-E3 and FLPS-7 modules.

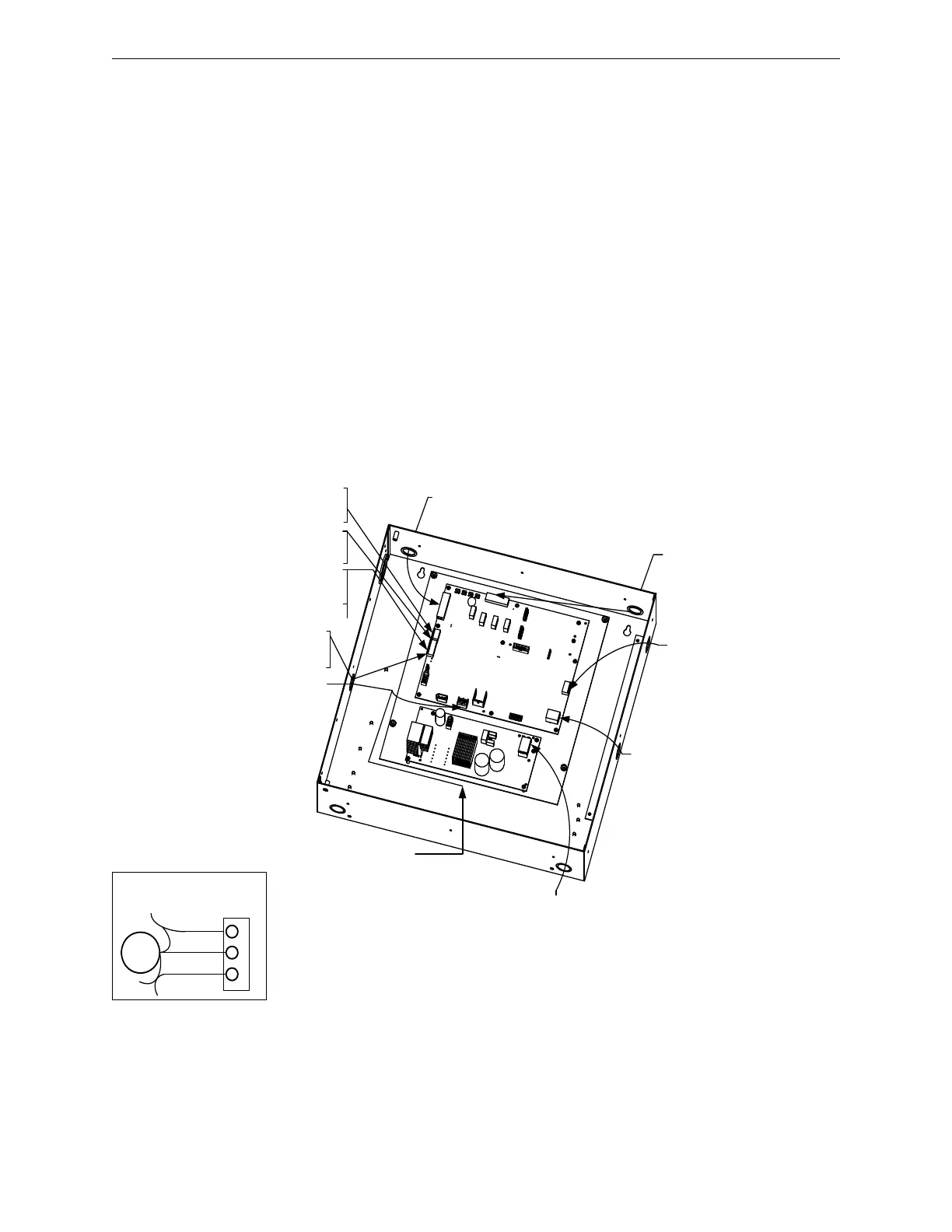

Figure 2.17.1.1 S3 Series, B-Size Cabinet, Class 2 Power-Limited and
Non-Power-Limited Wiring
(Basic Bottom Level Circuit Board Configuration)
T
B
4
T
B
3
T
B
2
DRY CONTACTS (FORM “C”)
FROM SLP-E3 TB4
(CLASS 2 POWER-LIMITED)
T
B
5
J
2
T
B
1
T
B
1
RS485 INTERFACE
FROM SLP-E3 TB3
(CLASS 2 POWER-LIMITED)
AUXILIARY POWER
FROM SLP-E3 TB2
(CLASS 2 POWER-LIMITED)
MUNICIPAL/RELEASING CIRCUIT
(NON POWER-LIMITED)
FROM SLP-E3 TB2
EXTERNAL BATTERY
FROM SLP-E3 TB6
(NON POWER-LIMITED)
USE 12 TO 55 AH BATTERIES.
ETHERNET
FROM SLP-E3 J2
(CLASS 2 POWER-LIMITED)
INTERNAL BATTERY
FROM SLP-E3 TB6
(NON POWER-LIMITED)
USE 12 AH BATTERIES.
RS232 INTERFACE
FROM SLP-E3 TB5
(CLASS 2 POWER-LIMITED,
SUPERVISED)
- CONNECT TO PRINTER PORT
NAC CIRCUITS
FROM SLP-E3 TB1
(CLASS 2 POWER-LIMITED)
S
L
P
-
E
3
F
L
P
S
-
7
AC POWER
FROM FLPS-7 PCA TB1
(NON POWER-LIMITED)
AC BRANCH CIRCUIT
POLARITY REVERSAL
(CLASS 2 POWER-LIMITED)
FROM SLP-E3 TB2
WIRE
NUT
AUX B+
GRND -
RESETTABLE +
-
-
+
+
1
2
3
DETAIL FIGURE 1
(SEE DETAIL FIGURE 1)
