26 S3 Series UL Listing Document — P/N LS10005-051GF-E:D3 3/09/2016
Installation Wiring Communication Circuits
2.9.1 W1 Jumper Block (Master Box/Releasing Solenoid Configuration)

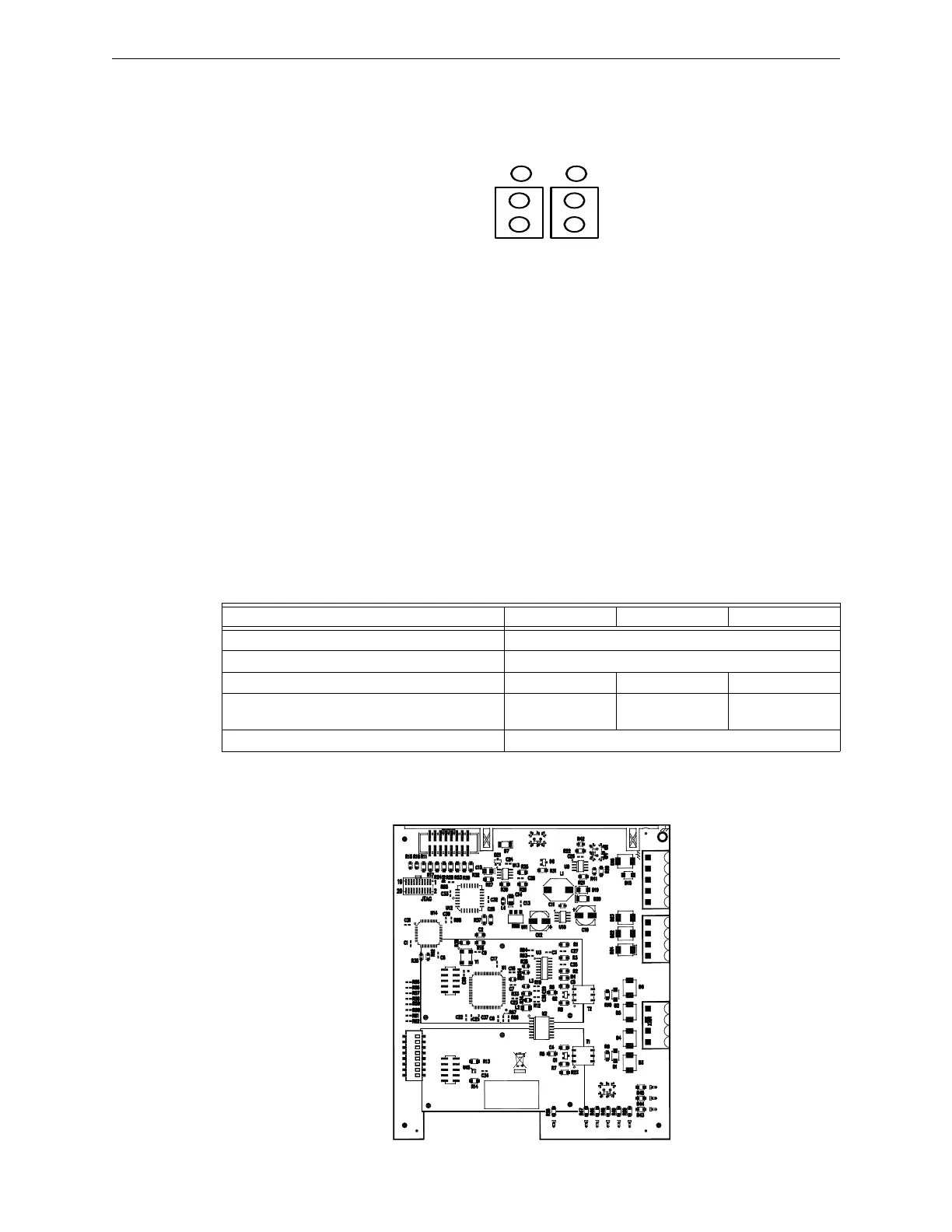

Figure 2.9.1.1 illustrates the W1 jumper block positions for the Master Box/Releasing Solenoid configuration.
Figure 2.9.1.1 W1 Jumper Block Positions for Master Box/Releasing Solenoid
2.10 Communication Circuits
2.10.1 S3 Series System Communication Circuits
The RPT-E3-UTP is the network communication circuit for the S3 Series System. It provides a remote inter-
face between the ILI-MB-E3/ILI95-MB-E3, ANX (used for Fire applications only) and the Broadband net-
work. It can also be used with the NGA. Use the following network communication circuits with this system.
RPT-E3-UTP (Repeater Module) provides unshielded, twisted-pair wire.
FML-E3 (Fiber-Optic Multi-Mode) provides the fiber-optic multi-mode 62.5 microns fiber.
FSL-E3 (Fiber-Optic Single-Mode) provides the fiber-optic single-mode 50 microns fiber.
For system assembly and installation wiring terminal designations, refer to the following documents:
- RPT-E3-UTP Installation Instructions, P/N: 9000-0580.
- FML-E3/FSL-E3 Installation Instructions, P/N: LS10046-000GF-E.
You can download these documents from the Gamewell-FCI Website (www.gamewell-fci.com).
2.10.2 RPT-E3-UTP Communication Circuit Specifications
Table 2.10.2.1 lists the RPT-E3-UTP communication circuit specifications.
2.10.3 RPT-E3-UTP Installation Wiring Diagram
Figure 2.10.3.1 illustrates the RPT-E3-UTP circuit board diagram.
Figure 2.10.3.1 RPT-E3-UTP Circuit Board Diagram
PR MB
W1
Requirements RPT-E3-UTP FML-E3 FSL-E3
Circuit Supervision: Supervised
If the circuit is power-limited: Class 2 Power-Limited
Supervisory Current: 0.016 amp 0.053 amp 0.079 amp
Max. voltage, rated current, and frequency
(RS-232 & RS-485) do not require these.
0.017 amp 0.053 amp 0.079 amp
Maximum line impedance or equivalent: 40 Ohms
Table 2.10.2.1 RPT-E3-UTP Communication Circuit Specifications
TB3
TB4
TB1
RPT-UTP-PCA REV
PRODUCT
DATE CODE
LABEL
FIBER
MODULE #1
J10
J4
J1
PWR
FIBER
MODULE #2
8
7
6
5
4
3
2
1
DG RST DUP MRC REC
LED8
LED7
LED3
LED2
LED1
LED9
ON OFF
J2
J3
ON OFF
SW1
RX2
LED6
LED5
LED4
RX1
TX
GF
SUPV
GND
REF
ARCNET
TERM
1
1
1
J5
J6
8
1
10
2
1
9
10
2
1
9
15
16
1
2
