24 S3 Series UL Listing Document — P/N LS10005-051GF-E:D3 3/09/2016
Installation Wiring Reverse Polarity Communication Circuit
2.7.13 Cabinet Enclosure for LCD-SLP
Table 2.7.13.1 lists the cabinet enclosures you can use to install the LCD-SLP.

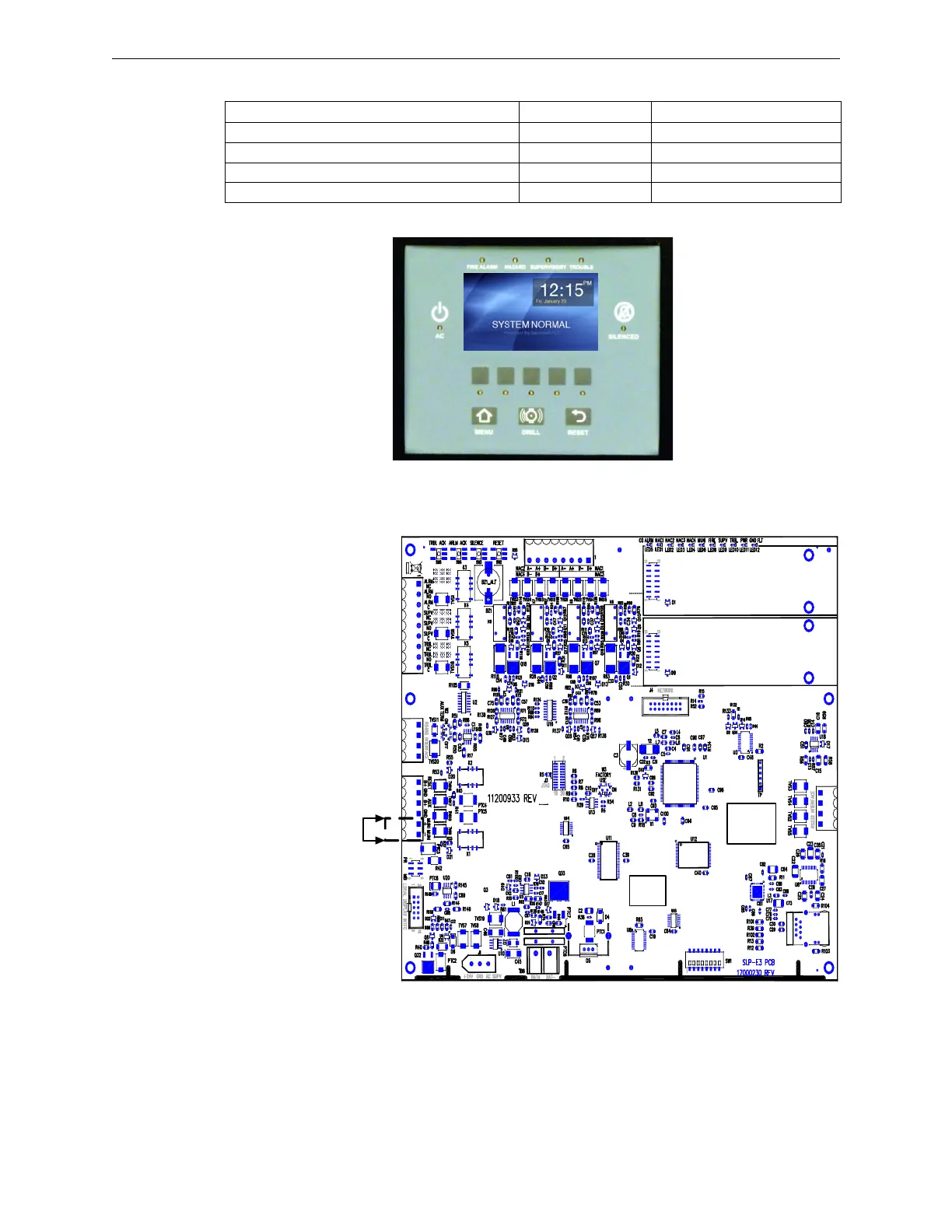

Figure 2.7.13.1 illustrates the LCD-SLP Display Panel.
Figure 2.7.13.1 LCD-SLP Display Panel
2.8 Reverse Polarity Communication Circuit
Figure 2.8.1 illustrates the Reverse Polarity communication circuit on the SLP main board panel.
Figure 2.8.1 Reverse Polarity Communication Line Circuit
Cabinet Part Numbers Dimensions
SLP-BB cabinet (also called the B-Slim cabinet) SLP-BB 14 1/2” W x 20 1/8” H x 4 1/2” D
S3 Series, B-Size Cabinet S3BB-BB/RB 19.38” W x 19.38” H x 4.50” D
E3 Series Cabinet A2 E3BB-BA2/RA2 13.25” W x 10.00” H x 3.00” D
E3BB-FLUSH-LCD Cabinet A2 E3BB-FLUSH-LCD 13.25” W x 10.00” H x 4.50” D
Table 2.7.13.1 Cabinet Enclosures for the LCD-SLP Display Panel
B- B+
SLP-E3
SLC-PM/SLC95-PM #2
SLC-PM/SLC95-PM #1
TB4
TB3
TB2
TB1
TB5
BAR CODE
LABEL
PRODUCT
SERIAL NUMBER
PRODUCT
DATE CODE
LABEL
ETHERNET
J2
POLARITY REVERSAL
CLASS 2 POWER-LIMITED
W1
J7
J1
J1
J5
J6
To Next Page
