S3 Series UL Listing Document — P/N LS10005-051GF-E:D3 3/09/2016 31
Power Output Circuits Installation Wiring
2.11 Power Output Circuits

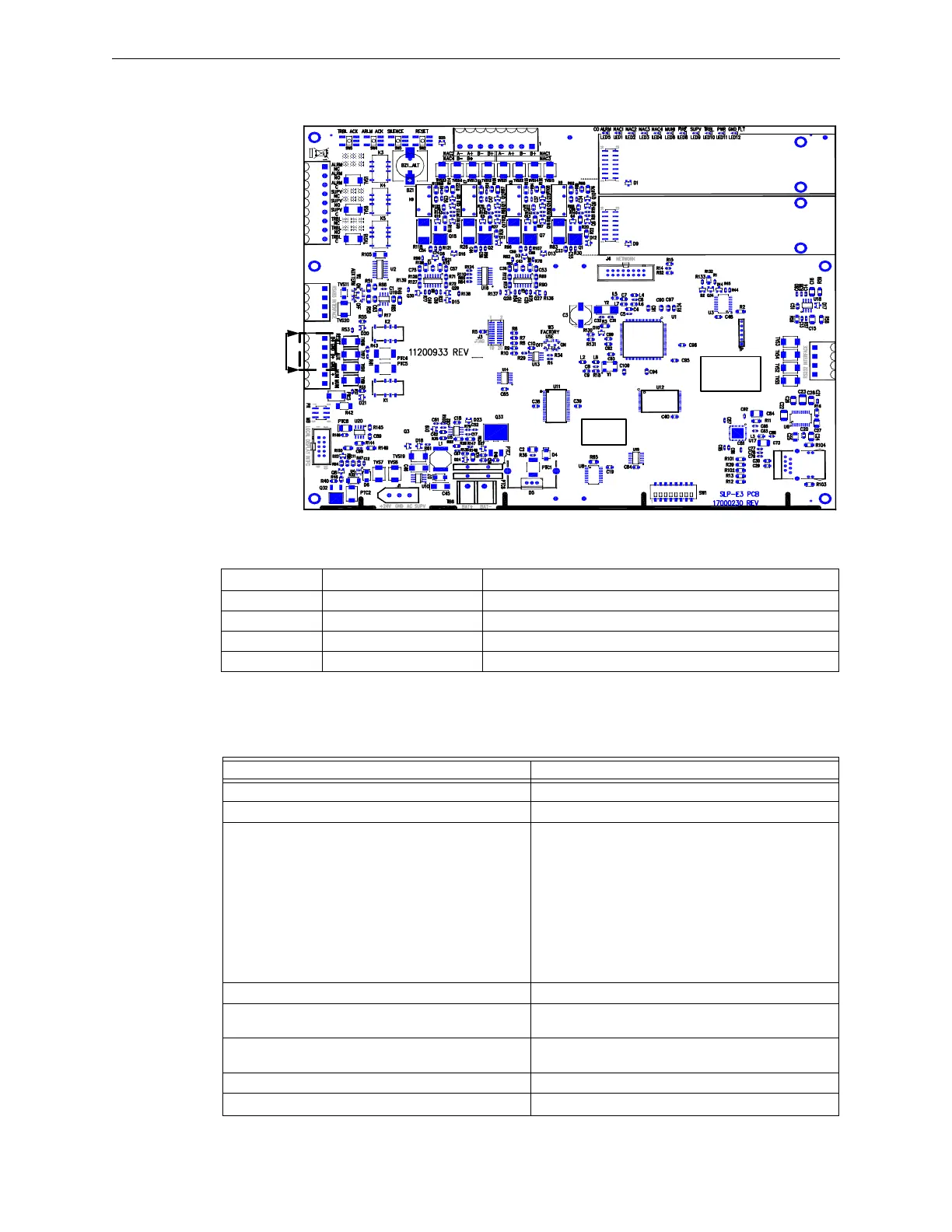

Figure 2.11.1 illustrates the location of the power output circuits for the SLP main board panel.
Figure 2.11.1 Power Output Circuits
Table 2.11.1 lists the power output circuit terminal wiring designations.
2.11.1 Power Output Specifications
Table 2.11.1.1 lists the power output specifications.
SLP-E3
SLC-PM/SLC95-PM #2
SLC-PM/SLC95-PM #1
TB4
TB3
TB2
TB1
TB5
BAR CODE
LABEL
PRODUCT
SERIAL NUMBER
PRODUCT
DATE CODE
LABEL
ETHERNET
J2
W1
J7
POWER
OUTPUT
CIRCUITS
B- B+
J1
J5
J6
J1
Designation Description Comments
TB2-1 RESET B+ Resettable 24 VDC Auxiliary Power
TB2-2 GND Resettable Power Common Negative
TB2-3 AUX B+ Non-resettable 24 VDC Auxiliary Power
TB2-4 NC Make No Connection
Table 2.11.1 Power Output Circuit - Installation Wiring Terminals
Requirements Power Output Specifications
Circuit Supervision: Supervised
If the circuit is power-limited: Class 2 Power-Limited
For Special Applications Notification Appliances, there
shall be a list of devices with the manufacturer and part
number information that can be connected when NAC
is selected as a special application.
Max. Alarm Load: -
Class A, 2.0 A/circuit Special Applications @ 24 VDC
nominal
Class B, 2.0 A/circuit Special Applications @ 24 VDC
nominal
Class A, 0.2 A/circuit Regulated @ 24 VDC nominal
Class B, 0.2 A/circuit Regulated @ 24 VDC nominal
NOTE: For additional information on the compatible
devices with the Manufacturer’s name and model
number, refer to the Compatibility Addendum for
Gamewell-FCI Manuals.
For Regulated Output: 0.2A at 24 VDC nominal
Identify the Manufacturer’s Name, model designation
for appliances to be used on the circuit.
Refer to the Compatibility Addendum to Gamewell-FCI
Manuals, P/N: 9000-0427-L8.
Impedance values for testing at which ground faults are
annunciated when ground faults affect operation.
Zero Ohms
Power output circuit battery backed-up or not. Yes
See General Wiring for duplicate terminal requirements.
N/A
Table 2.11.1.1 Power Output Specifications
