Honeywell MetroSelect Eclipse MS 5145 - ISBT Code 128 Implementation; ISBT Code 128 Configuration Mode

5–1
ISBT Code 128 Implementation
Configuration Mode

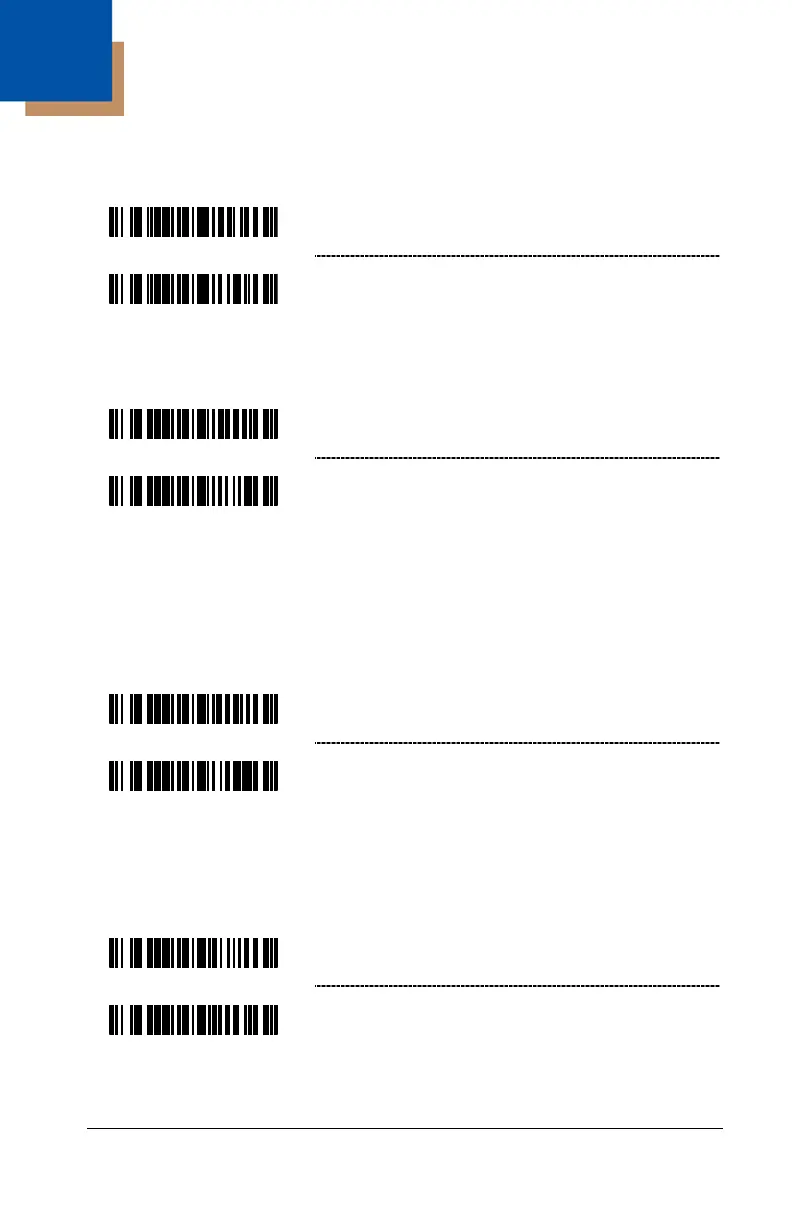

³ 1 3 8 4 1 7
Enable ISBT Code 128
³ 1 3 8 4 0 7
Disable ISBT Code 128
The bar codes below enable or disable a special transmit mode as outlined in
section 3.5.2 of the ISBT-128 Specification. This output method allows the user
to confirm independently the accuracy of the Code-128 check digit.
³ 1 3 8 4 1 6
Enable ISBT Special Transmit
³ 1 3 8 4 0 6
Disable ISBT Special Transmit
The bar codes below enable or disable the transmission of the ISBT Code 128
data identifiers. When this option is enabled, the first two data characters
are removed from the data stream (ID characters) unless the ISBT bar code
scanned contains Donation Identification Number identifiers. If Donation
Identification Number identifiers are present, only the first ID character is
removed from the Donation ID Number. The second is regarded as
normal data.
³ 1 3 8 4 1 5
Don’t Transmit ISBT ID’s
³ 1 3 8 4 0 5
* Transmit ISBT Identifiers
The bar codes below convert and transmit the Mode 37, 2 check digit from the
flag digits of the Donation Identification Number provided the check digit is
contained in the flag digits. Transmission of the Donation Identification number
will be the same except for the last two digits, which are converted into a single
check sum character.
³ 1 3 8 5 1 0
Convert Flag Digits to Mod 37, 2 CD
³ 1 3 8 5 0 0
* Normal Flag Digit Transmission
5
