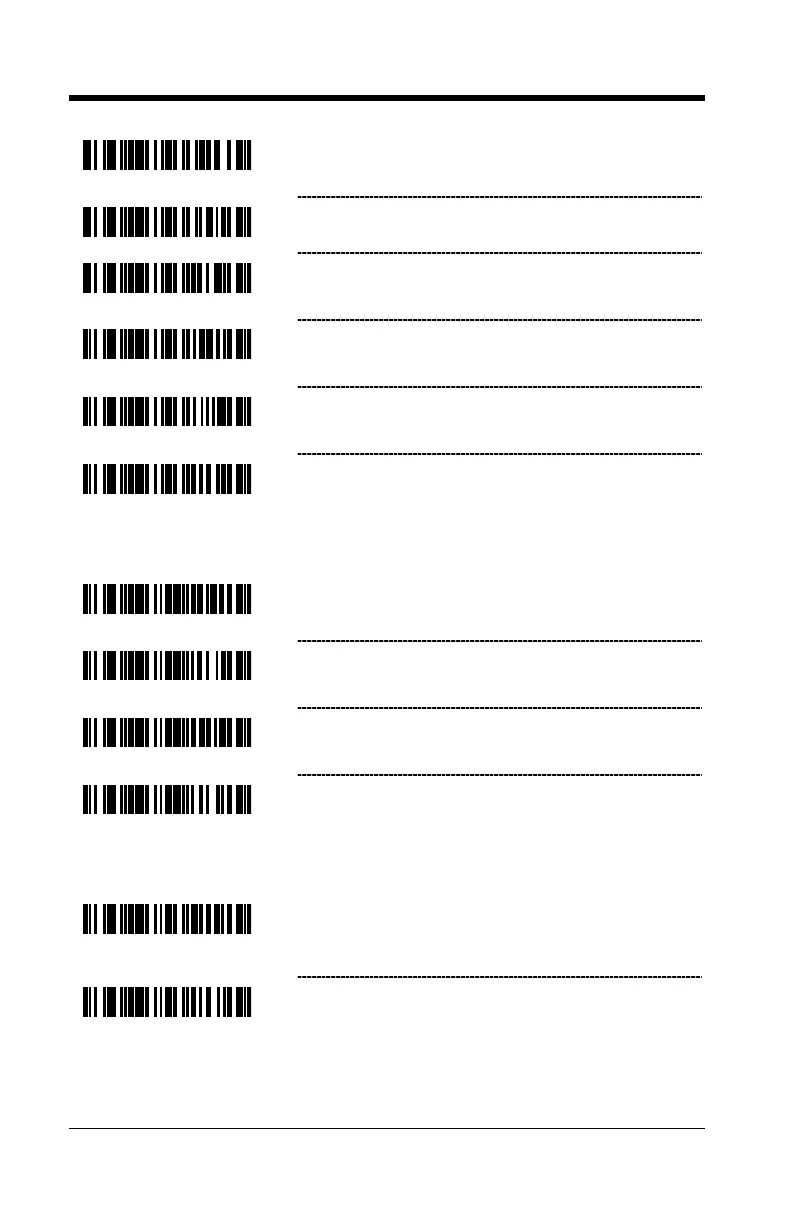

10–2
³ 4 1 5 8 5 0
* 9600 BAUD Rate
³ 4 1 5 8 4 0
4800 BAUD Rate
³ 4 1 5 8 3 0
2400 BAUD Rate
³ 4 1 5 8 2 0
1200 BAUD Rate
³ 4 1 5 8 1 0
600 BAUD Rate
³ 4 1 5 8 0 0
300 BAUD Rate
Data/Stop Bits
³ 1 1 6 0 1 3
8 Data Bits The number of data bits
transmitted for each character.
³ 1 1 6 0 0 3
* 7 Data Bits
³ 1 1 6 0 1 4
1 Stop Bit
³ 1 1 6 0 0 4
* 2 Stop Bits
Hardware Handshaking
³ 1 1 5 8 1 6
Enable RTS/CTS Handshaking
Output a
Request to Send (RTS) signal and wait for a Clear
to Send (CTS) signal before transmitting data.
³ 1 1 5 8 0 6
* Disable RTS/CTS Handshaking.
