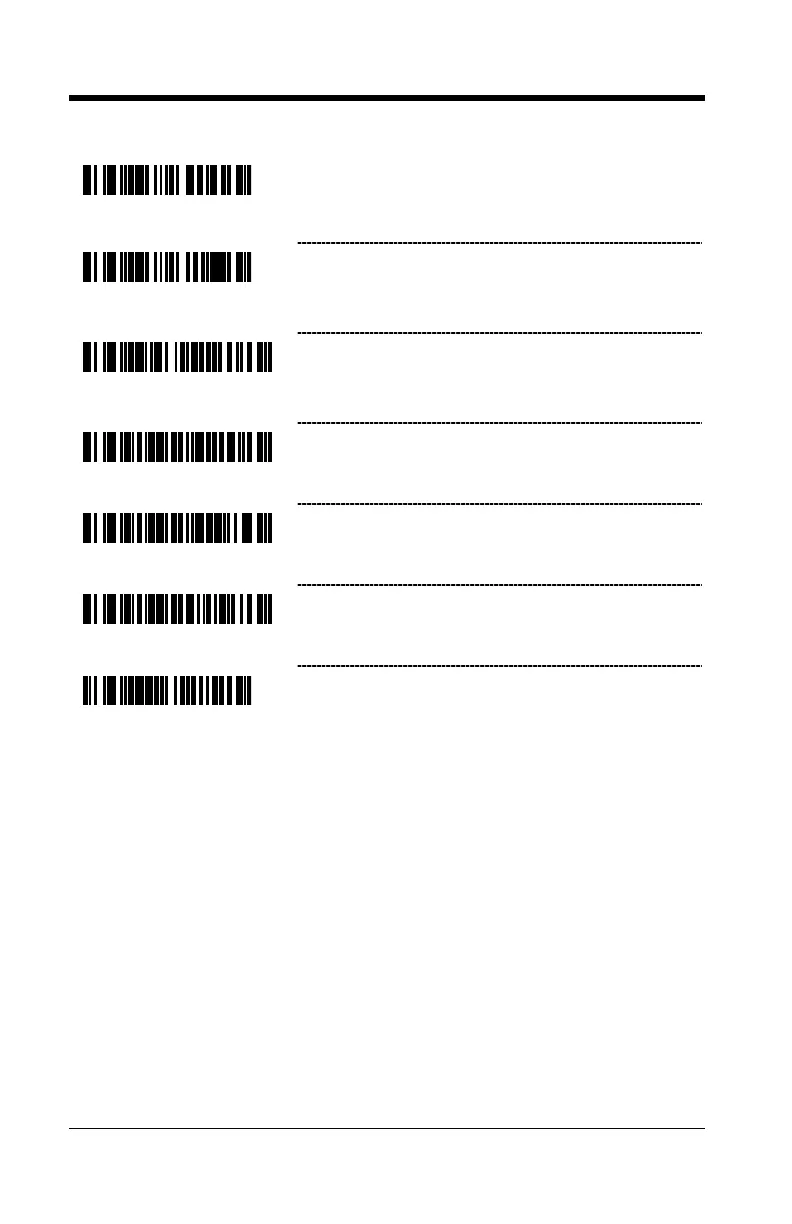

Set Narrow Element Width
³ 1 1 6 9 1 2
10x Narrow Element Border – Allows the
transmission of Light Pen/Wand emulation using
a 10x border.
³ 1 1 6 9 0 2
* 50x Narrow Element Border – Allows the
transmission of Light Pen/Wand emulation using
a 50x border.
³ 8 1 6 8 1 6 3 0
* 1 ms Narrow Element Width – Allows the
transmission of Light Pen/ Wand emulation at
1ms Narrow Element width.
³ 8 1 6 8 1 0 0
60 µs Narrow Element Width
³ 8 1 6 8 1 6 0
100 µs Narrow Element Width
³ 8 1 6 8 8 2 0
500 µs Narrow Element Width
³ 9 1 6 8 0 0
~ Variable Narrow Element Width – Sets the
minimum x-dimension in 6 µs increments. Scan
this code followed by a 3-digit code byte
sequence (on page 16–
1).
