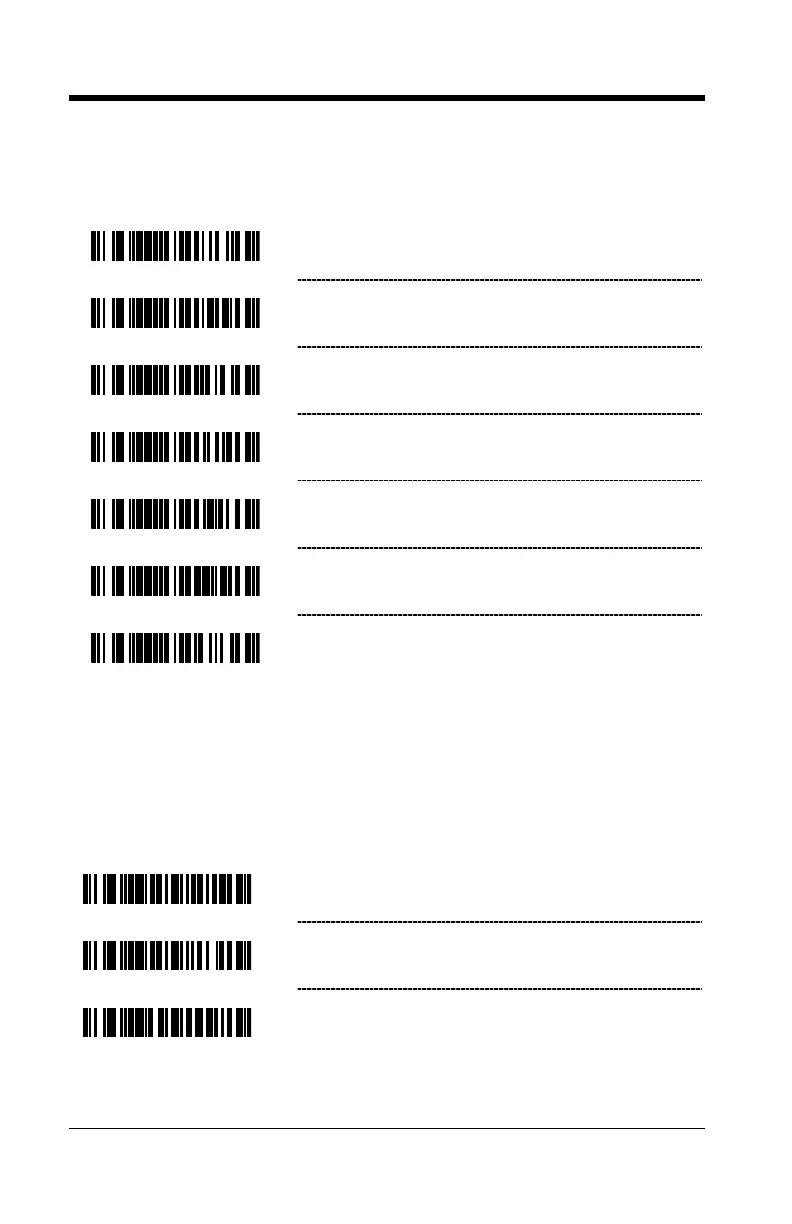

Concatenation Configuration Mode
†
The following bar codes are used to configure variable time requirements used
to find the second bar code of the ISBT concatenation sequence.
³ 3 0 1 3 1 0
100 msec to Find Concatenation Sequence
³ 3 0 1 3 2 0
200 msec to Find Concatenation Sequence
³ 3 0 1 3 3 0
300 msec to Find Concatenation Sequence
³ 3 0 1 3 4 0
400 msec to Find Concatenation Sequence
³ 3 0 1 3 5 0
500 msec to Find Concatenation Sequence
³ 3 0 1 3 6 0
600 msec to Find Concatenation, Sequence
³ 3 0 1 3 7 0
700 msec to Find Concatenation Sequence
Pre-Defined Concatenation Configuration Mode
†
The first two bar codes below enable or disable pre-defined concatenation
sequences. The remaining bar codes enable the specific pre-defined
concatenation sequence shown, but are not needed to enable concatenation.
They can be used to disable or re-enable any selected pre-defined
concatenation sequence.
³ 1 3 8 4 1 3
Enable Pre-Defined Concatenation Sequence
³ 1 3 8 4 0 3
Disable Pre-Defined Concatenation Sequence
³ 4 3 8 4 8 0
Donation Identification Number + AB0/Rh (D)
Blood Groups =á + =% Concatenation
† This feature is only supported in the MS9500 Voyager product series.
