7–9

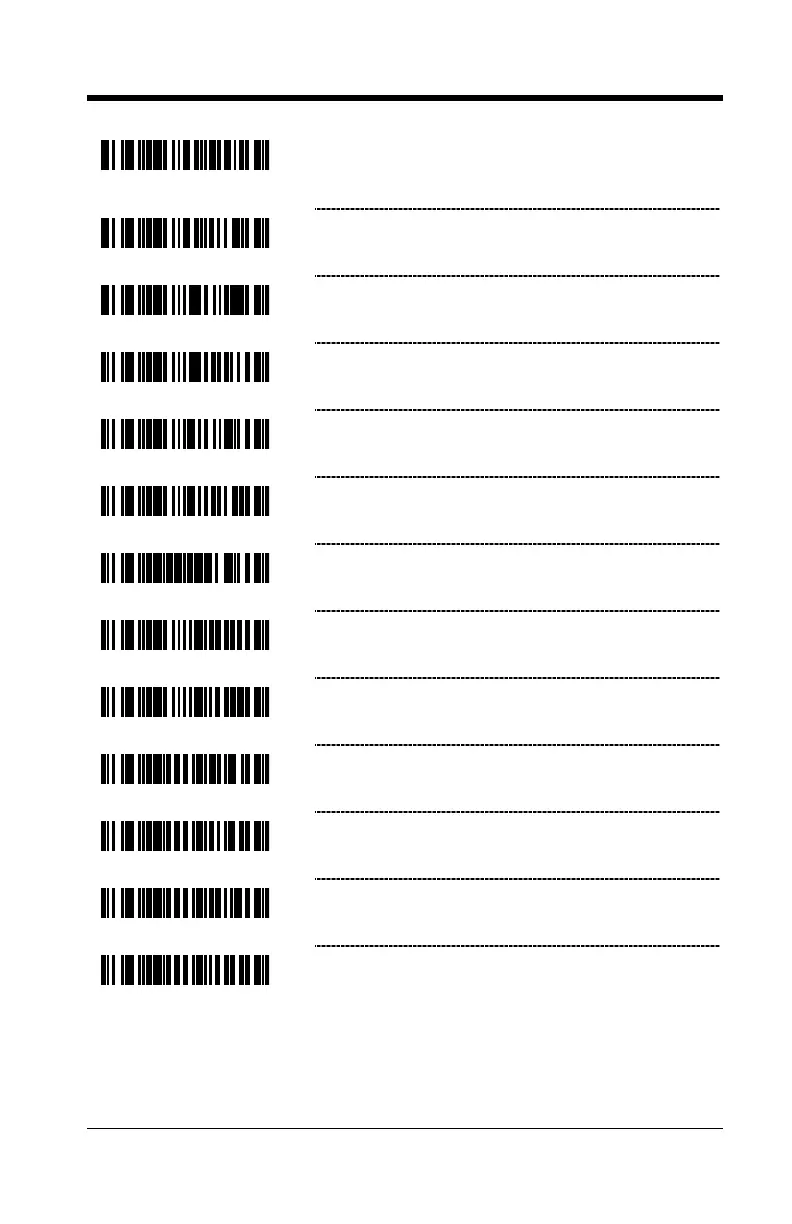

³ 1 1 5 9 1 6
Transmit Scanner ID byte with receipt of an
“i” (69H) via RS232 – The ID byte is transmitted
as 3 bytes (i.e. 0, 0, 1).
³ 1 1 5 9 0 6
* Don’t Transmit Scanner ID byte with receipt
of an “i” (69H) via RS232
³ 1 1 8 1 1 1
Transmit NO READ if DC2 Activated
³ 1 1 8 1 0 1
* Do Not Transmit NO READ if DC2 Activated
³ 1 1 8 3 1 1
No Green LED During NO READ Transmit
³ 1 1 8 3 0 1
* Green LED During NO READ Transmit
³ 9 9 9 9 6 9
Transmit Serial Number
³ 1 1 8 2 1 3
Enable Motor On/Off Commands
³ 1 1 8 2 0 3
* Disable Motor On/Off Commands
³ 1 2 5 0 1 6
Disable RS232 Receive
³ 1 2 5 0 0 6
Normal RS232 Receive
³ 1 2 5 0 1 3
Enable Banco Control Mode
³ 1 2 5 0 0 3
Disable Banco Control Mode
