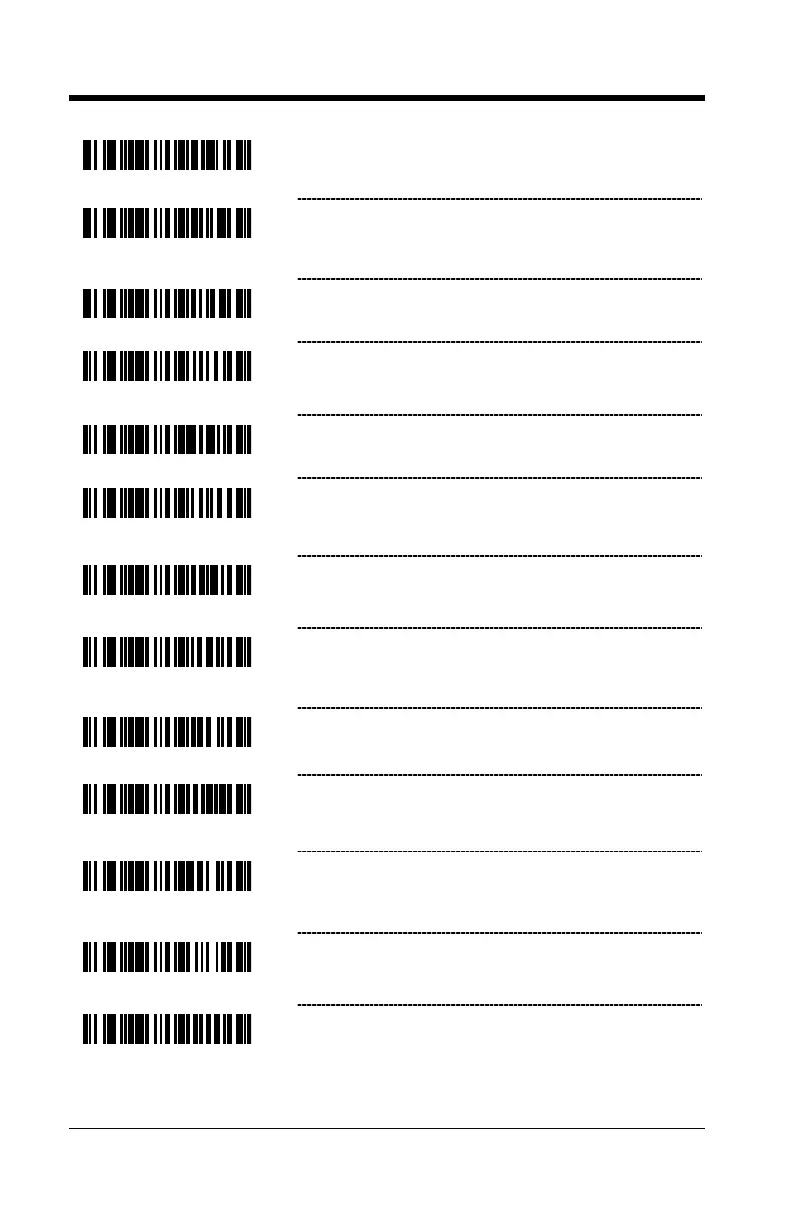

18–2

³ 1 1 5 0 1 7

Disable GS1 DataBar 2D Linkage

³ 1 1 5 0 1 6

Enable UPC/EAN Linkage – Link UPC/EAN

symbols with a 2D composite constituent then

transmit.

³ 1 1 5 0 0 6

* Disable UPC/EAN Linkage

³ 1 1 5 0 0 5

* Enable Code 128 Linkage – Transmit the 1D

Code 128 without scanning the 2D portion.

³ 1 1 5 0 1 5

Disable Code 128 Linkage

³ 1 1 5 0 0 4

* Enable PDF 1D Linkage – Transmit the 2D

portion of the PDF-417 without scanning the 1D

portion.

³ 1 1 5 0 1 4

Disable PDF 1D Linkage

³ 1 1 5 0 0 3

* Enable UPDF 1D Linkage – Transmit the 2D

portion of microPDF without scanning the 1D

portion.

³ 1 1 5 0 1 3

Disable UPDF 1D Linkage

³ 1 1 5 0 0 2

* Normal Composite Xmit – Always transmit the

1D and 2D constituent composite components

separately.

³ 1 1 5 0 1 2

Xmit Composite Separately – Transmit the

1D and 2D constituent composite components

separately.

³ 1 1 5 0 1 1

Enable EAN-128 Emulation – Utilize the

UCC/EAN128 protocol for transmission

purposes.

³ 1 1 5 0 0 1

* Disable EAN-128 Emulation

For Same Symbol Time Out information refer to page 7–3.
